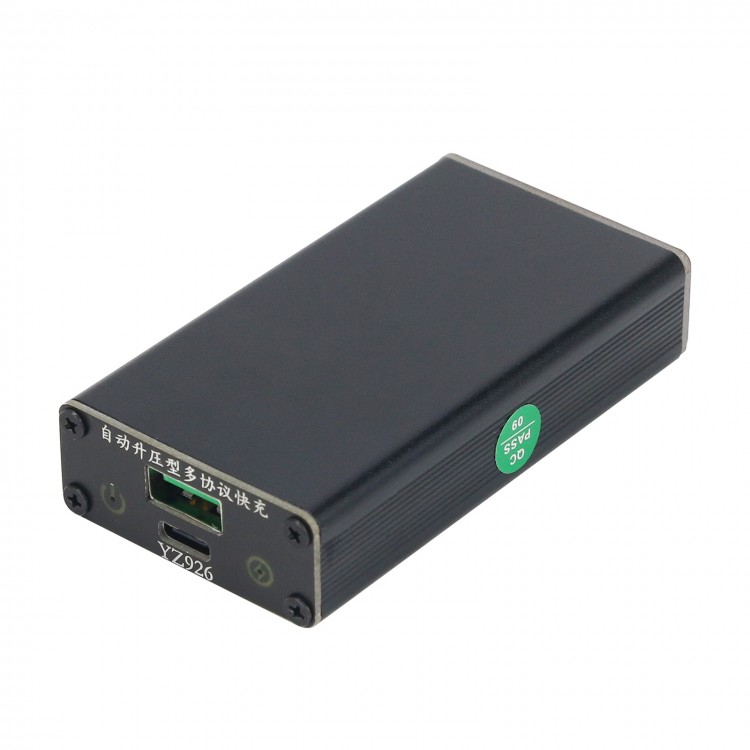

YZ926 Mobile Phone Charger Adapter Multi-Protocol Quick Charge Adapter Input 10-32Vdc One-Way Output
Performance Parameters:
- Volume: 83 x 45 x 18mm/3.3 x 1.8 x 0.7"
- Support protocol: In addition to normal fast charge protocol, its USB port currently supports for Huawei SCP 22.5W and authorized VOOC and DASH 3.7A, and an original cable should be used. Its PD3.0 type-c port also supports PD3.0, PPS and QC4+
Attention:
- Type-A and type-C ports do not support fast charging at the same time. And only 5V is output when both of them are used.
- Ordinary fast charge protocol: Support for ordinary Android and Apple 5V fast charge, QC2.0/3.0, Huawei FCP, Samsung AFC, MTKPE, type-C PD2.0 and other fast charge protocols.
Features:
- One-way output
- Maximum output 100W
- YZ926 single-channel boost type
- Automatic boost type multi-protocol fast charge
- USB + Type-C dual interfaces
- Input voltage: 10-32Vdc
Supporting Protocols:
- For OnePlus DASH and OPPO VOOC
- For MTK PE+1.1/2.0
- QC2.0/QC3.0/QC4.0/QC4+
- For Huawei SCP/FCP and USB PD3.0 (PPS)
- For Apple 2.4A, Samsung AFC, and VIVO flash charge
Package Included:
- 1 x YZ926 Charger Adapter
Note:
- Input interfaces: DC5525 + PD20Vdc.
- DC5525 input cable is not included. If you want to buy it, please contact us to cover the cost.
