Z4 Digital Decoder Audio Converter HIF DAC Fiber Coaxial Signal Input to Analog Output

Z4 Digital Decoder Audio Converter HIF DAC Fiber Coaxial Signal Input to Analog Output

Product Description:This Digital to Analog Audio Converter is designed for either home or professional audio switching.It converts coaxial or toslink digital audio signals to analog L/R audio and connects to an external device such as an amplifier via standard RCA jacks.

Features:
- Converts coaxial or toslink digital audio signals to analog L/R audio and connects to an
external device such as an amplifier via standard RCA jacks.
- Supports uncompressed 2-channel LPCM digital audio signal output.
- Supports sampling rate at 32, 44.1, 48, 96KHz and 192Khz.
- 24-bit S/PDIF incoming bit stream on left and right channels.
- Provides electromagnetic-noise-free transmission.
- Easy to install and simple to operate.
- Compact size.

Specifications:
- Input Audio: Coaxial or Toslink digital audio
- Output Audio: L/R audio
- Input audio connector: 1 x Toslink,1 x RCA (Coaxial)
- Output audio connector: 2 x RCA(R/L)
- Power input: AC 100-240V 50/60Hz
- Output: DC 5V 1A
- Plug standard: US & EU plug

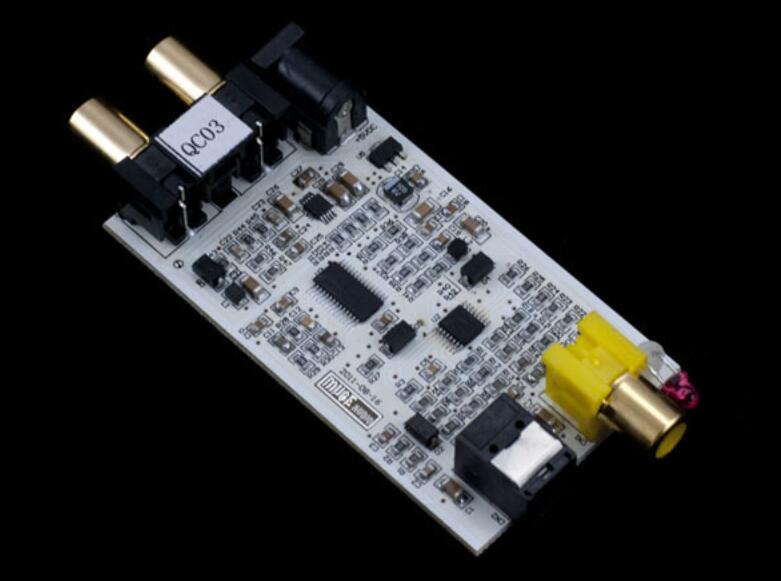

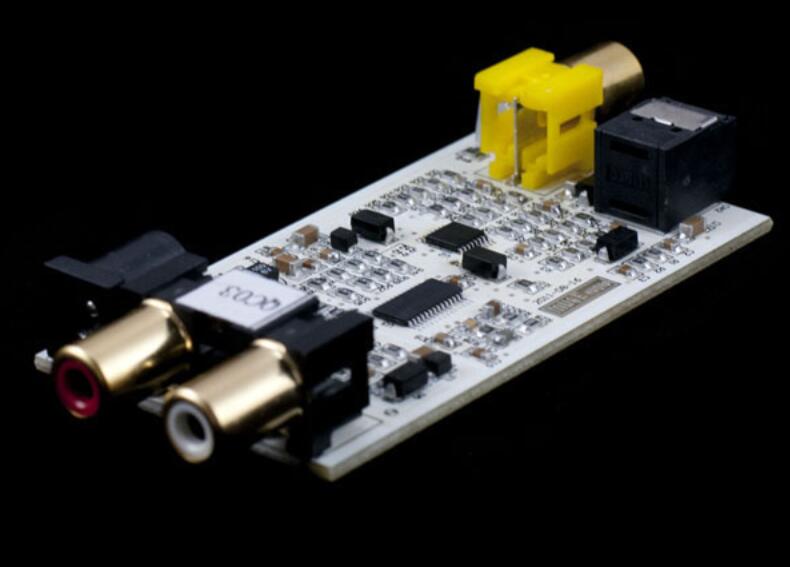

- CS8416+CS4344+SGM8054
- Energy consumption:max 0.5 W
- Temperature (using):0 ℃~+70℃
- Humidity (using):10%~85 % RH (no crystallization)
- Temperature (storage): -10℃~+80℃
- Humidity(storage):5%~90 % RH (no crystallization)
- Size:93x42x21mm
- Weight:68g(Does not include power adapter)

Package List:
- 1 x Z4 Digital Decoder Audio Converter
