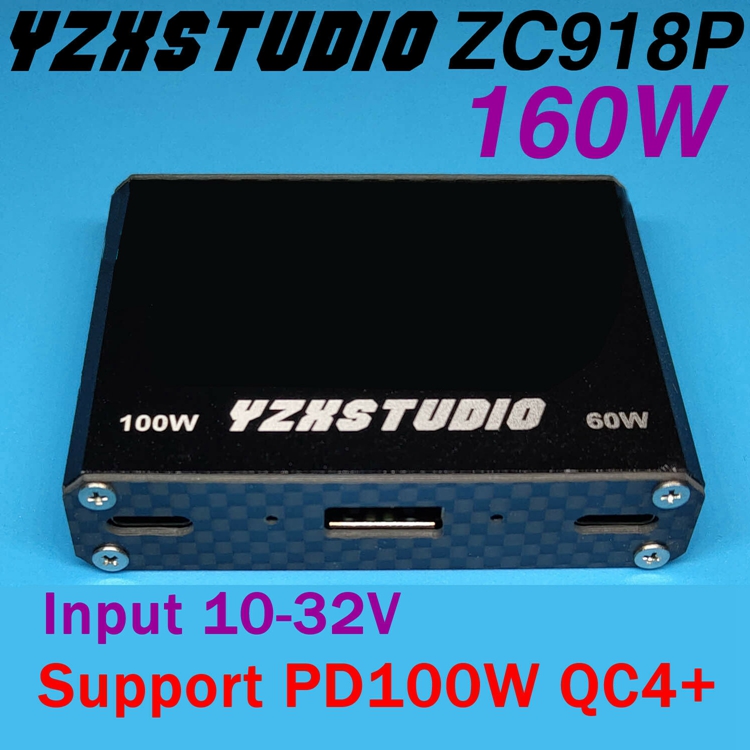

ZC918P USB Desktop Quick Charge DC 12V 24V to Type-C QC4+PD3.0 FCP AFC

ZC918P USB Desktop Quick Charge DC 12V 24V to Type-C QC4+PD3.0 FCP AFC


- 100W port supports step-up and step-down voltage. It supports for 12V input and 20V output
- Excellent performance and compatibility. It can be used with car power supply 12V or 20V power supply to charge your tablet PC
- 3K carbon fiber panel with CNC process, featuring lightweight and high intensity

Performance & Parameters:
- Size: 53 x 67 x 15mm
- Input voltage: 10-32V, recommended 12-24V;
- Maximum Output Power: 160W, the total output power must be less than the input power.
- 100W Output Port:
   Input 10-15V, Maximum Output 20V 3A 60W;
   Input more than 15V, the maximum output is 20V 5A 100W, 5A cables is needed.
- 60W Output Port: The middle A port and the right C port share one way, and only 5V slow charge is need.
  Maximum output of A port is 12V 3A 36W.
  C Port:
     Input 9-11V, Output 9V 3A 27W;
     Input 12-15V, Output 12V 3A 36W;
     Input 16-20V, Output 15V 3A 45W;
     Input more than 21V, Output 20V 3A 60W.
- Efficiency:
  60W Port:
    12V input, 5V 2A output, efficiency is about 98%.
    24V input, 5V 4A output, effeiciency is about 95%.
    24V input, 20V 3A output, effeciency is about 97%.
 100W Port:
  16V input or 24V input, 20V 5A output, efficiency is about 98%.
   In other cases, efficiency is about 96%.
- Static Power Consumption: less than 2mA, within the full nominal input voltage range.
- Input under-voltage: To prevent over-discharging of car battery (battery is not included), it stops output and standbys with lower power consumption when it is below 9V.
- Output Ripple: less than 100mV.
- Line Loss Compensation: 0.1V compensation per 1A.
- Supporting Protocols: In addition to the normal fast charging protocol 1, the middle USB port currently supports for full-speed Huawei SCP 22.5W, VOOC, DASH 2.3A or so. The 60WC port also supports for PD3.0, PPS, and QC4+.
- Indicator Lights: Red and Blue lights show fast charge status for 100W port and 60W port separately. Red is for normal 5V output, Blue is for fast charge output.

Package Included:
- 1 x ZC918P USB Desktop Quick Charge

Note:
- Power supply and data cable are not included in this package.
- The color of the main board is random, the components are for reference only. Suppliers for component parts may be changed, but excellent performance is won’t change a lot.
