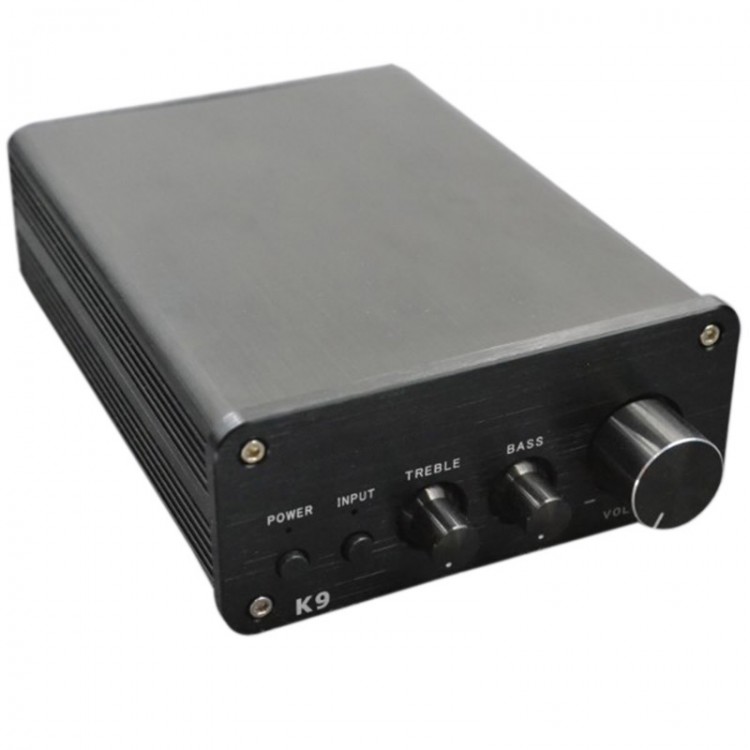

ZHI LAI K9 Digital Amplifer 2x160W High-Power Output high Bass Adjustment Input Amp for Audio

Availability: In stock, usually dispatched in 1 business day

  • Price:$62.75
  • Price in reward points: 628 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $61.50 $60.24 $58.36 $55.85 Contact US
Quantity:

ZHI LAI K9 Digital Amplifer 2x160W High-Power Output high Bass Adjustment Input Amp for Audio

Description:
- LAI K9 ZHI applies chip TDA7498E  as the core. TDA7498E is the amplifier chip that serves BTL output circuit  class D audio . The efficiency is up to 90%. It comes with a super short circuit and overload protection, with a single channel 160W super power output, sounds extremely shocking. All desktop passive shelf box, a variety of landing box, the horn can be the perfect partner of it. The signal is processed by the LM1036 chip. And the use of bile duct field effect tube, so that the sound quality warm and meticulous.
- Equipped with relay protection circuit to have the boot delay protection function.
- According to the different field, high bass can be freely adjusted, at the same time with two audio input, can be connected to a computer, TV, MP4, lossless music players and other audio equipment.

Parameters:
- DC:19V-32V 4A and above.
- External diameter: 5.5mm (negative); inner diameter: 2.5mm (Positive)
- Output Power:
  DC=32V: 160W+160W; RL=4Ohm; THD=10%
  120W + 120 W; THD = 10%; RL = 6Ω ;
  100W + 100 W; THD = 10%; RL = 8Ω ;
- Chip efficiency: 90%
- Input Level: 400mv-2v
- SNR: >99DB
- Signal input: Two RCA analog signal input
- Color: Silver; Black. Please note the color you want.

Package included:
- 1 x ZHI LAI K9 Digital Amplifer (No power supply)
