ZITAY Camera External Battery Mobile Power Supply Power Bank For Cameras Using Battery For DJI OSMO
This product is suitable for cameras using battery for OSMO. If external battery for other camera models is needed, please contact us.
1. Using 6pcs high-capacity NCR18650 batteries, a single capacity of 3400mAH, a total capacity of 3.6V 20400mAH. Why my product says 10200mAH: Because my battery is three batteries connected in parallel, a total of two strings, output 7.2V, in accordance with industry conventions. The capacity is equivalent to 5.5pcs original batteries for OSMO.
2. The main body adopts CNC machining of aluminum alloy for aviation parts, and the surface treatment adopts hard anodizing process. Strictly tailored and meticulously crafted, it embodies the craftsman spirit.
3. There are 3 parallel 1/4 screw holes at the bottom, and the installation and fixing methods can be varied. No more battery bases, no more battery clips.
4. With 4 parallel DC socket outputs, it can supply power to 4 devices at the same time.
5. The circuit principle is exactly the same as most SLR batteries (such as LP-E6/NP-FW50, etc.), using two sets of batteries connected in series, plus a protection board. The structure is simple, safe and reliable, with the highest efficiency and almost no loss. The power displayed by the SLR camera is the true power of the battery.
6. Fast charging. Due to the simple battery series connection method, the internal complicated buck-boost process is reduced. The charging current can be very large. The standard charger is 8.4V/3A, and the charging power reaches 25W. It takes over 3 hours to charge fully.
7. Touch-type power indicator, fully sealed and waterproof structure.
8. This battery has overcharge protection, over-discharge protection, overcurrent protection, short-circuit protection, overvoltage protection, perfect and comprehensive protection, no need to worry about the battery being damaged.

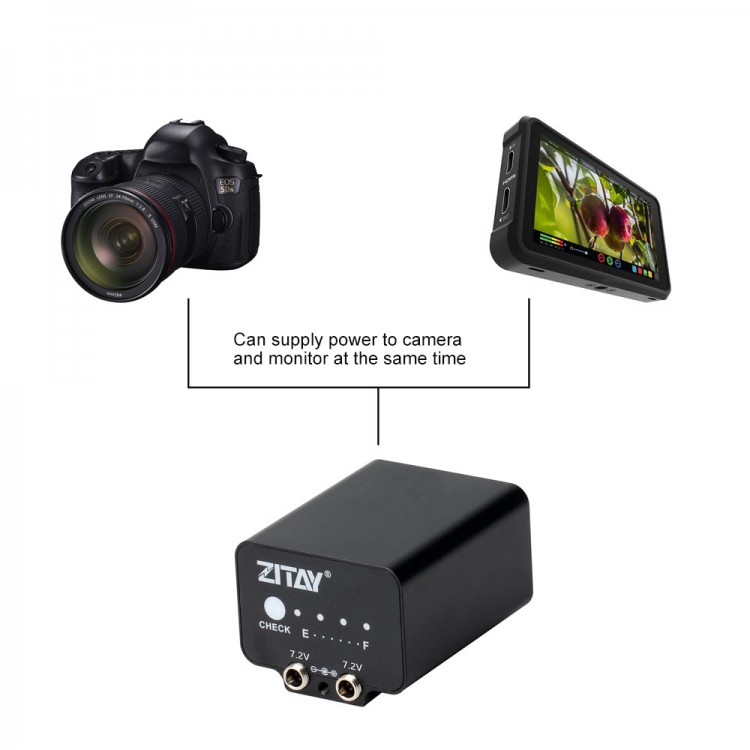

- Supply power to SLR and monitor at the same time (power cord or dummy battery is distributed according to the model of your monitor).
- Charger Indicator: Red Light means that it is charging. Green Light means that is fully charged and power supply will be automatically cut off.
- Comes with a high-power charger.
- Premium quality hot shoe to 1/4 screw.
How to Use?
The usage method is shown in the figure below. Different SLR camera battery compartments have different outlet positions. Generally, they are more hidden and covered with rubber covers. Insert the DC plug of dummy battery into the external battery.
- The external battery has four DC sockets, plug the charger's DC plug into any DC socket.
- The external battery charging and discharging sockets are shared, the same as the original SLR battery. The charging and discharging interfaces of the original SLR battery are shared.
- It is normal for the charger to heat up during charging. The temperature will automatically drop when fully charged. Because the charging power is high, heat is normal. Normal laptop chargers will also heat up during charging.
- 1 x 75WH Battery
- 1 x 60CM Power Cord
- 1 x 8.4V/3A Fast Charger
- 1 x Hot Shoe
- Other items pictured are not included.
- All the batteries have passed strict tests before delivery. Please use it with ease.
- Dummy battery for OSMO is not included. Please purchase separately.
