ZITAY External Battery Power Supply Dummy Battery For Canon 5D4/5D3/60D/80D SLR Using LP-E6 Battery
It is suitable for all Canon SLR using LP-E6 battery, such as 5D4/5D3/5D2/6D2/5DS/5DSR/60D/7D/6D/70D/7D2. If you need external batteries for other models of cameras, please contact customer service.
- Brand: CCTECH
- Capacity: 3.6V, 13600mAH/ 7.2V, 6800mAH
- Type: External camera battery
- Applicable equipment: For Canon SLR camera using LP-E6 battery
- About battery capacity: Applicable to 5D2, it can shoot video for more than 7 hours. Due to different models of SLR cameras and shooting formats, the use time will be different.
1. Using 4 high-capacity NCR18650B batteries, a single capacity of 3400mAH, a total capacity of 3.6V 13600mAH. Why does my product say 6800mAH? Because my battery is connected in parallel, two strings in total, output 7.2V, according to the industry conventional labeling. The capacity is equivalent to 3.5pcs LP-E6 original batteries.
2. The main body adopts CNC machining of aluminum alloy for aviation parts, and the surface treatment adopts hard anodizing process. Strictly tailored and meticulously crafted, it embodies the craftsman spirit.
3. There are 3 parallel 1/4 screw holes at the bottom, with various installation and fixing methods. No battery base or battery clip is required.
4. With 4 parallel DC socket outputs, it can supply power to 4 devices at the same time.
5. The circuit principle is exactly the same as most SLR batteries (such as LP-E6/NP-FW50, etc.), using two sets of batteries connected in series, plus a protection board. The structure is simple, safe and reliable, with the highest efficiency and almost no loss. The power displayed by the SLR camera is the true power of the battery.
6. Fast charging. Due to the simple battery series connection method, the internal complicated buck-boost process is reduced, and the charging current can be very large. The standard charger is 8.4V/4A, and the charging power reaches 34W. It can be fully charged in over two hours.
7. Touch-type power indicator, fully sealed and waterproof structure.
8. This battery has overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, overvoltage protection, perfect and comprehensive protection, no need to worry about the battery being damaged.
- Circuit structure: two batteries in parallel, a total of two strings;
- The output voltage is 6V-8.4V, and the output voltage is related to the remaining battery power;
- Dimensions: 73*40*46mm (LxWxH)
- Product Weight: 260g
- Main material: aluminum alloy for aviation parts
- Processing method: CNC
- Core type: For Panasonic NCR18650B
How to Use?
The usage method is shown in the figure below. Different SLR camera battery compartments have different outlet positions. Generally, they are more hidden and covered with rubber covers. Insert the DC plug of dummy battery into the external battery.
- The external battery has two DC sockets, plug the charger's DC plug into any DC socket.
- The external battery charging and discharging sockets are shared, the same as the original SLR battery. The charging and discharging interfaces of the original SLR battery are shared.
- It is normal for the charger to heat up during charging. The temperature will automatically drop when fully charged. Because the charging power is high, heat is normal. Normal laptop chargers will also heat up during charging.
- Red Light: It is charging.
- Green Light: It is fully charged.

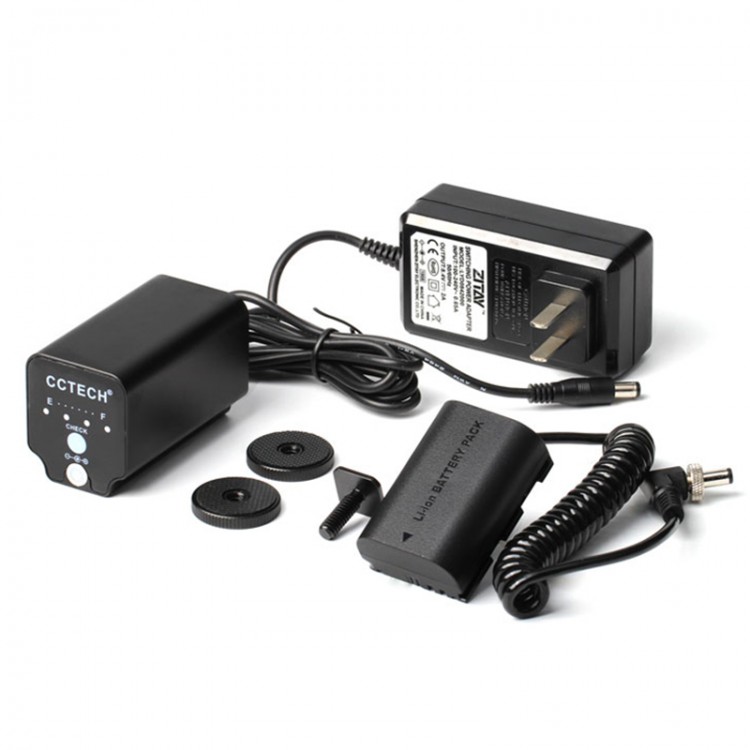

- 1 x 50WH Battery
- 1 x LP-E6 Dummy Battery
- 1 x 8.4V/2A Fast Charger
- 1 x Hot Shoe
Note: All the batteries have passed strict tests before delivery. Please use with ease.
