• ZKsoftware MA300 Card+Fingerprint Access Control TCP/IP Linux

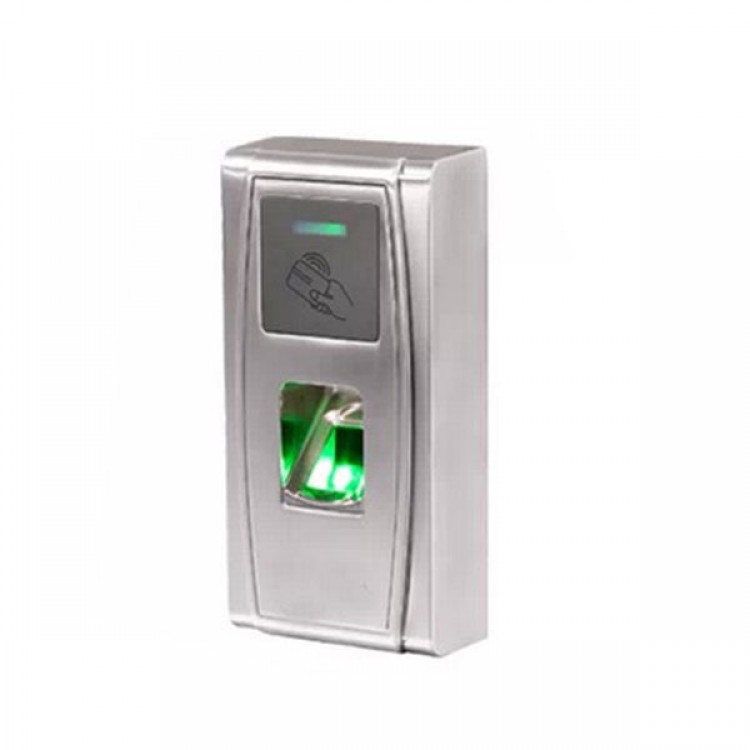

ZKsoftware MA300 Card+Fingerprint Access Control TCP/IP Linux

Availability: In stock, usually dispatched in 1 business day

  • Price:$141.90
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $0.00 $0.00 $0.00 $0.00 Contact US
Quantity:

ZKsoftware MA300 Card+Fingerprint Access Control TCP/IP Linux

Product Introduction

MA300 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The MA300 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. The user can be enrolled by administrator card when the device works as a standalone access control. TCP/IP and RS232/485 are available that the device can be used in different network. TCP/IP communication makes sure the data transition between the device and the PC can be easily done within several seconds. MA300 can be used in tough environment because of the IP54 protection index and the wide range of operating temperature.

Features:
· Fingerprint reader with durable and highly accurate ZK optical sensor
· 1 touch a-second user recognition
· Stores 1,000 templates, 10,000 cards and 30,000 transactions
· Reads Fingerprint and/or Card reader or ABA reader
· Optional integrated smart card reader
· Built-in Serial and Ethernet ports
· Tamper-proofs switch and alarm outputs
· Request-to-exit and alarm contacts
· Real-time 1-touch data export 3rd party hosted & non-hosted applications
· Audio-Visual indications for acceptance and rejection of valid/invalid fingers
· IP54 protection index
· Wide range of operating temperature

Technical Specifications:

Fingerprint Capacity

1000 templates

ID card Capacity

10,000

Transaction Capacity

30,000

Hardware Platform

ZEM700

Sensor

ZK Optical Sensor

Algorithm Version

ZK Finger v9.0

Communication

RS232/485, TCP/IP, USB-host

Access Control Interface for

3rd party electric lock, door sensor, exit button, alarm

Wiegand Signal

Input & Output

Optional Functions

Mifare

Display

N/A

Power Supply

12V DC

Operating Temperature

-10 °C- 60 °C

Operating Humidity

10%-90%

Index of Protection

IP54

Dimension(W*H*D)mm

73*148*34.5

Gross Weight

1.15kg
