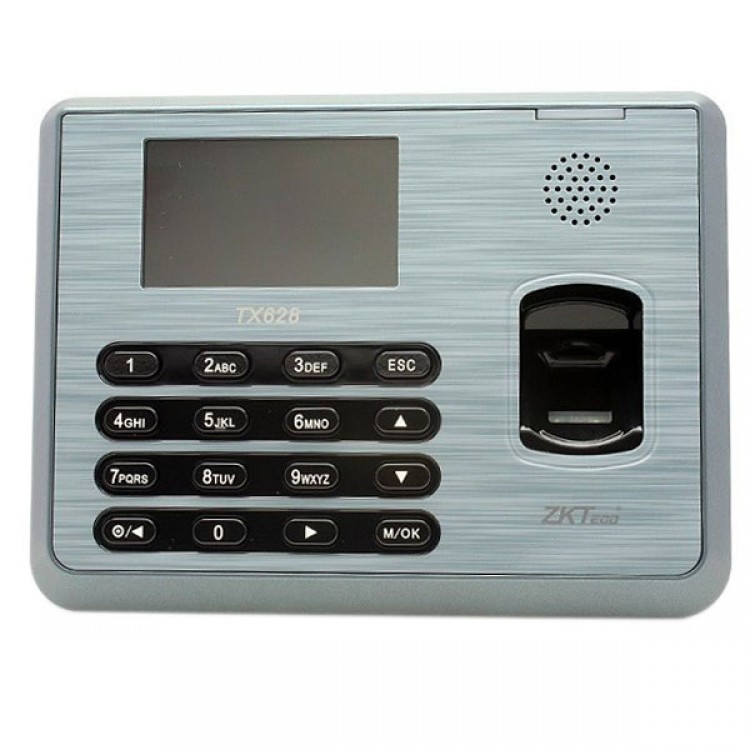

ZKsoftware Soft TX628 multi-biometric Identification Time Attendance Tcp/ip USB
Introduction:
- TX628 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The TX628 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The 3” TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.
Features:
- Color TFT screen with GUI Interface for ease of use
- ZK Optical Sensor
- 1 touch a-second user recognition
- Stores 3,200 templates and 80,000 transactions
- Reads Fingerprint and/or PINs
- Optional integrated proximity or smart card reader
- Built-in Serial and Ethernet ports
- Built-in USB port optional, allows for manual data transfer when network isn't available
- Built in bell scheduling
- Real-time 1-touch data export 3rd party hosted & non-hosted applications
- Audio-Visual indications for acceptance and rejection of valid/invalid fingers
- SDK available for OEM customers and software developers
Fingerprint Capacity |
3200 templates |
Card Capacity |
Optional |
Transaction Capacity |
80,000 |
Hardware Platform |
ZEM510 |
Sensor |
ZK Optical Sensor |
Algorithm Version |
ZK Finger v10.0 |
Communication |
RS232/485, TCP/IP,USB-host,USB-client |
Optional Functions |
ID/Mifare/HID,Webserver,printer,9 digit user ID |
Display |
3 inches TFT Screen |
Power Supply |
5V DC 2A |
Operating Temperature |
0 °C- 45 °C |
Operating Humidity |
20%-80% |
Dimension |
180*135*37 mm |
Gross Weight |
0.90 kg |
