ZL Audio Q1 PC Digita Mini HIFI USB DAC PCM2704 External Sound Card Headphone
Description:
- USB interface
- USB power supply
- Sound distortion: THD+N: 0.006% (RL > 10 kΩ)
- Sound distortion: THD+N: 0.025% (RL = 32 Ω)
- SNR: 98 dB
- Dynamic range: 98 dB
- Headphone output power: 12 mW (RL = 32 Ω)
- Support sampling rate: 16Bit 32k, 44.1k, 48k
- USB DAC is best Choice for enthusiasts, it is cost-effective mini USB DAC; reasonable arrayed wire shows the best function of PCM2704.
- Compatible the USB 1.0 16bit support 32 khz / 44.1khz / 48khz sampling (Support Win2000/XP/7 Mac)
- Size:27 x 27 x 59mm
- Dynamic range: 100db
- Noise signal ratio: 105db (faith typical values) THD + N: 0.002%
- Internal integrated independent 12mhz clock generator built-in 8 x Oversampling digital filter
- Adopt double power supply.Analog part is + 5V , Digital parts for + 3.3 V
- SSOP- 28 encapsulation
- The chip adopt the famous PCM2704 , Uses metal film resistor, capacitance, polypropylene capacitor, double panel design, the USB interface provide power supply , output directly meet headphones

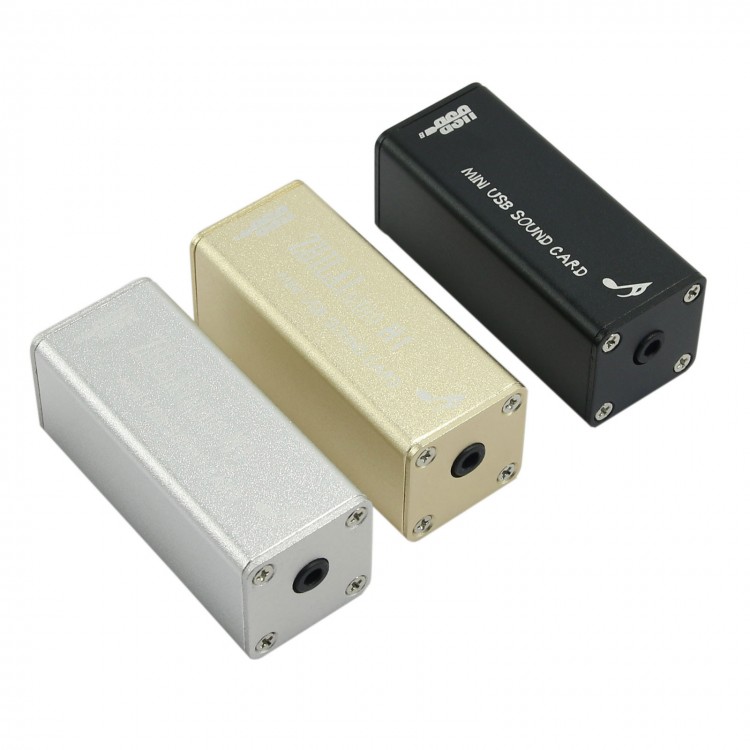

- Three colors to choose from, (black silvery) default sending black
Package Include:
- 1pcs x ZL Audio Q1 PC Digita Mini HIFI USB DAC PCM2704 External Sound Card Headphone
