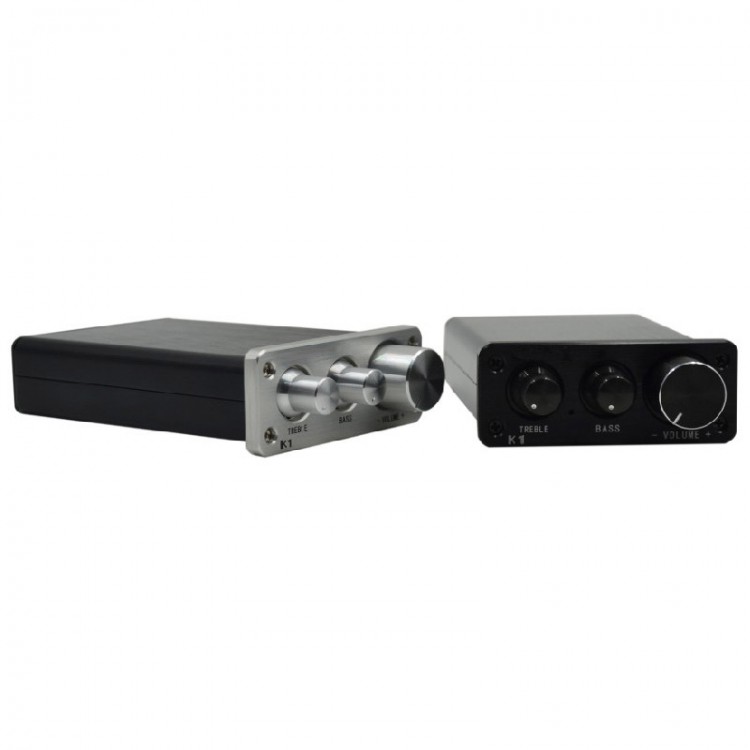

ZL K1 DC12V 2x25W HIFI Digital TPA3118 Amplifier Terble Bass Adjustment Computer Audio Sound Home Computer
Description:
The digital power amplifier chip is TPA3118 ,hifi sound output, sound using XR1075 chip, latest high resolution BBE chip, using a new bipolar technology, to lower the noise figure of the chip, the total harmonic wave distortion smaller and smaller chip volume (18-pin dual in-line package), the peripheral element is further simplified, in particular high-frequency extension of better, high-quality materials, with high bass adjustment function, ultra-small size, easy to place, fashion design. It can be directly connected to the computer .MP4. Perfect for lossless music players and other audio equipment.
Parameters:
- Output Power:
25W @ 4Ohm, 10% THD + N;
13W @ 8Ohm, 10% THD + N;
- Distortion:
0.03% THD + N @ 9W / 4Ohm;
0.10% IHF-IM @ 1W / 4Ohm;
0.10% THD + N @ 10W / 4Ohm;
0.10% THD + N @ 6W / 8Ohm;
- Effectiveness:
90% @ 25W, 4Ohm;
90% @ 13W, 8Ohm;
- Dynamic Range:> 99dB;
- Dimensions: 108 × 72 × 26mm;
- Color: Two colors:Black; Silver for your choice. Please note the one you like.
- Signal Input: 3.5mm jack signal input;
- Output: 4-wire signal output;
- Power supply: DC12V; Tip size:5.5mm / 2.1mm;
Package Content:
- 1 x ZL K1 Amplifier
- 1 x Power supply
