ZNT-30 3–30N·m Digital Torque Gauge Torque Tester Kit w/ Ratchet Wrench 1/2" Adapter & 1/2" Sockets
Features of Digital Torque Gauge:

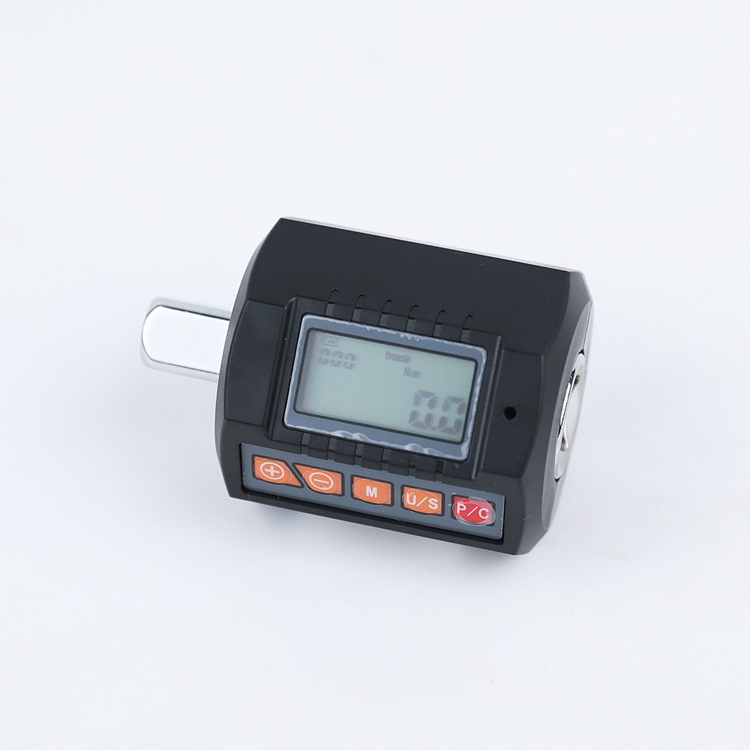

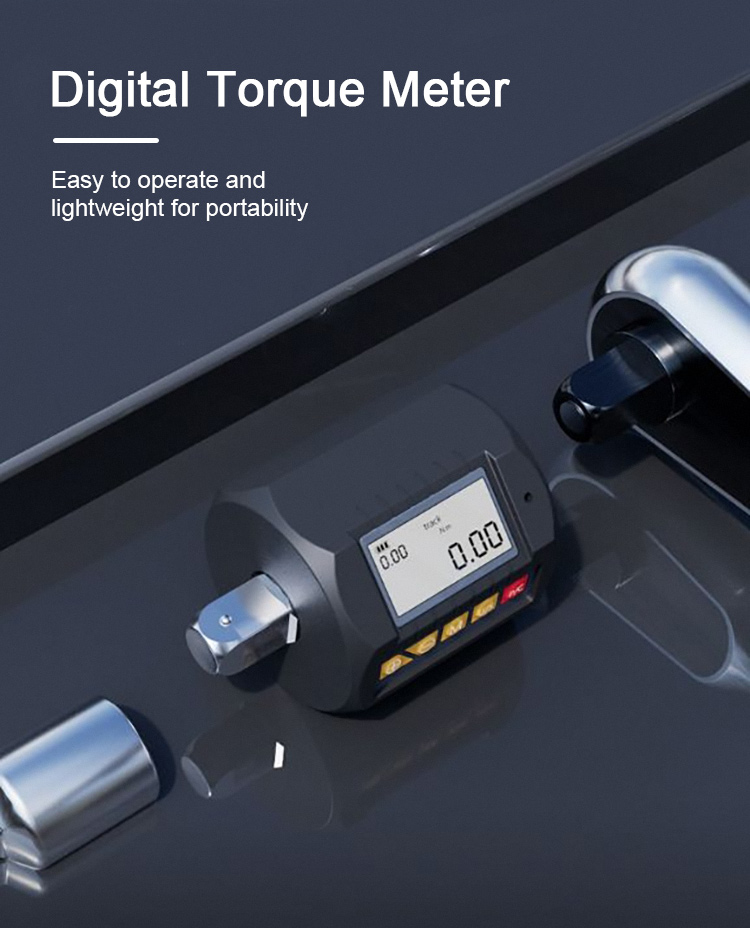

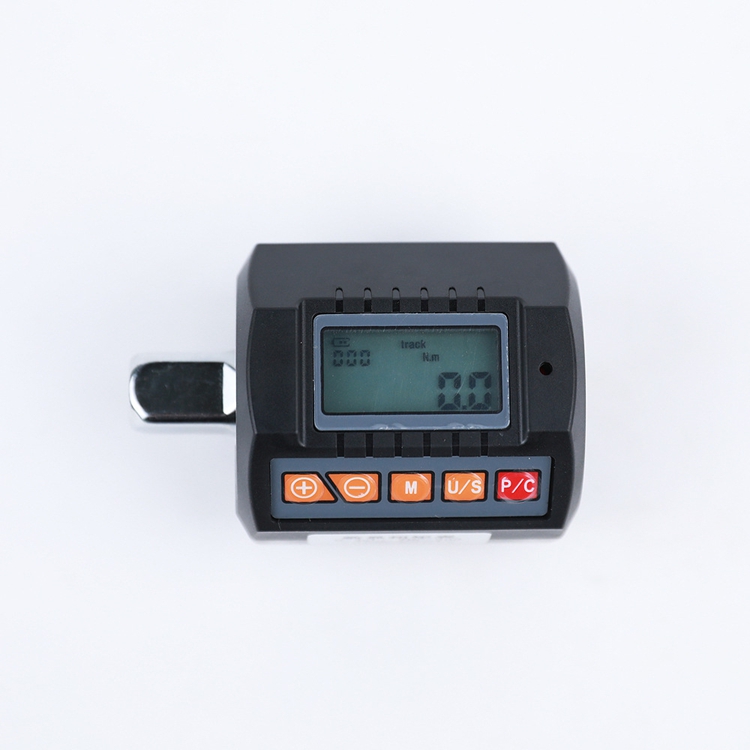

Digital Torque Meter
* Easy to operate and lightweight for portability
A Handy Tool for Experimental Measurements
* 360° comprehensive measurement
* Thickened ruler body
* IP54 waterproof rating
* Metric/Imperial switching
* High-definition LCD screen
* Fast-response chip
Secure Fastening, Easy to Operate
* Can be used in forward and reverse rotation to improve work efficiency
Large LCD Screen for Clear Readings
* Backlight makes it easy to read in low light or at night
Preset Torque Value with Audible and Visual Alarm
* When reaching 80% of the preset value, the red light starts flashing and the buzzer begins to sound. As it gets closer to the preset value, the red light flashes faster and the buzzer beeps more rapidly.
* When 100% of the preset value is reached, the red light stays on continuously and the buzzer sounds continuously.

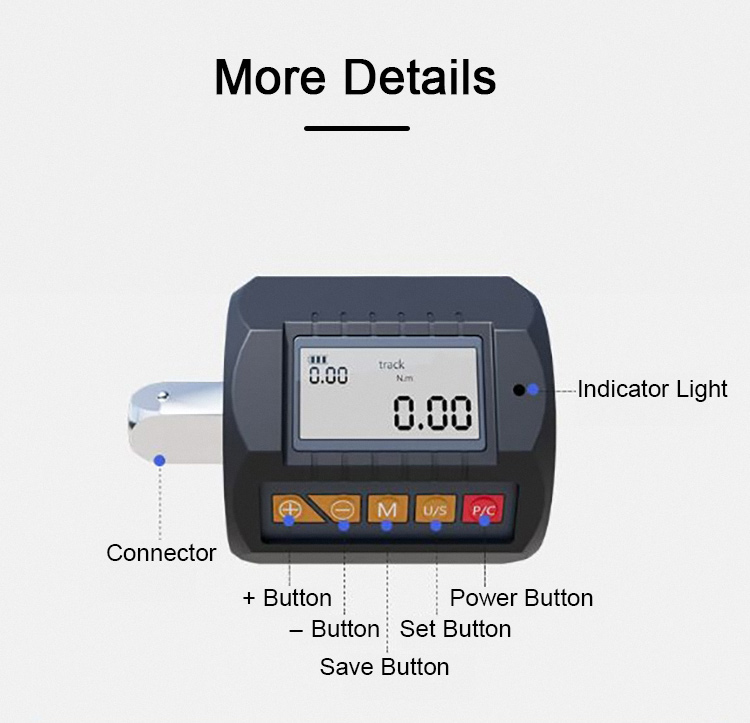

Non-slip Buttons Provide a Comfortable Touch
* Easy and quick to operate.

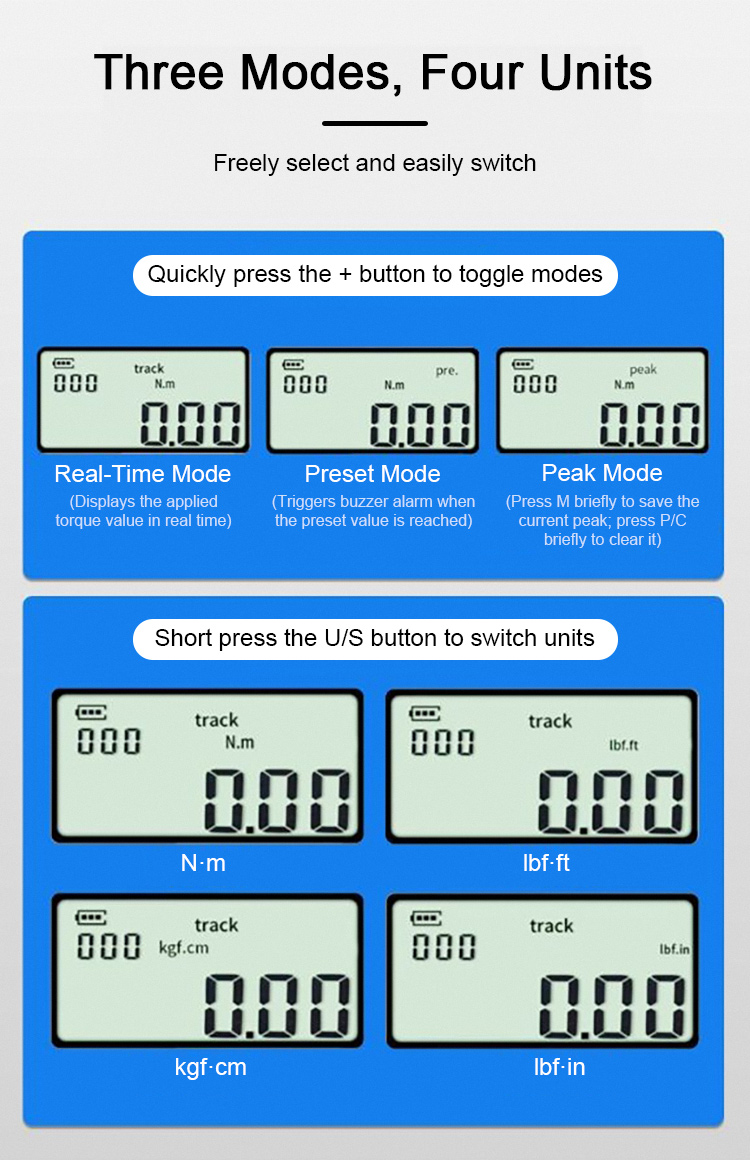

Three Modes, Four Units
* Freely select and easily switch
* Quickly press the + button to toggle modes
* Real-Time Mode: Displays the applied torque value in real time
* Preset Mode: Triggers buzzer alarm when the preset value is reached
* Peak Mode: Press M briefly to save the current peak; press P/C briefly to clear it
* Short press the U/S button to switch units: N·m, lbf·ft, kgf·cm, and lbf·in
Application Scenarios
* Automotive industry
* Shipbuilding industry
* Mechanical industry
Specifications:
* Model: ZNT-30 (with WNC-30 Digital Torque Meter)
* Graduation: 0.01N·m
* Measuring Range: 3–30N·m
* Connector of Main Unit: 1/2"
* Torque Accuracy: Clockwise ±2%; Counterclockwise ±2.5%

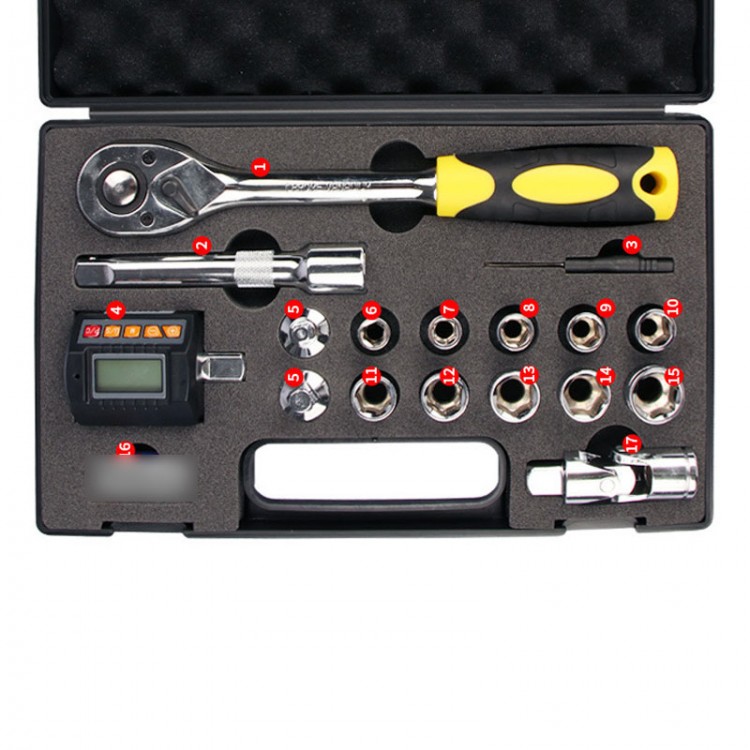

Packing List:
* 1 × Ratchet Wrench (1/2" Drive)
* 1 × 1/2" Extension Bar (5 inches)
* 1 × Screwdriver
* 1 × Digital Torque Meter
* 2 × 1/2" Adapters
* 1 × 1/2" Socket 8mm
* 1 × 1/2" Socket 9mm
* 1 × 1/2" Socket 10mm
* 1 × 1/2" Socket 11mm
* 1 × 1/2" Socket 12mm
* 1 × 1/2" Socket 13mm
* 1 × 1/2" Socket 14mm
* 1 × 1/2" Socket 15mm
* 1 × 1/2" Socket 16mm
* 1 × 1/2" Socket 17mm
* 1 × 1/2" Universal Joint
* 1 × Tool Box
Packaging Details:
* Weight: 0.95kg
Note:
* 2pcs AAA batteries are not included.
