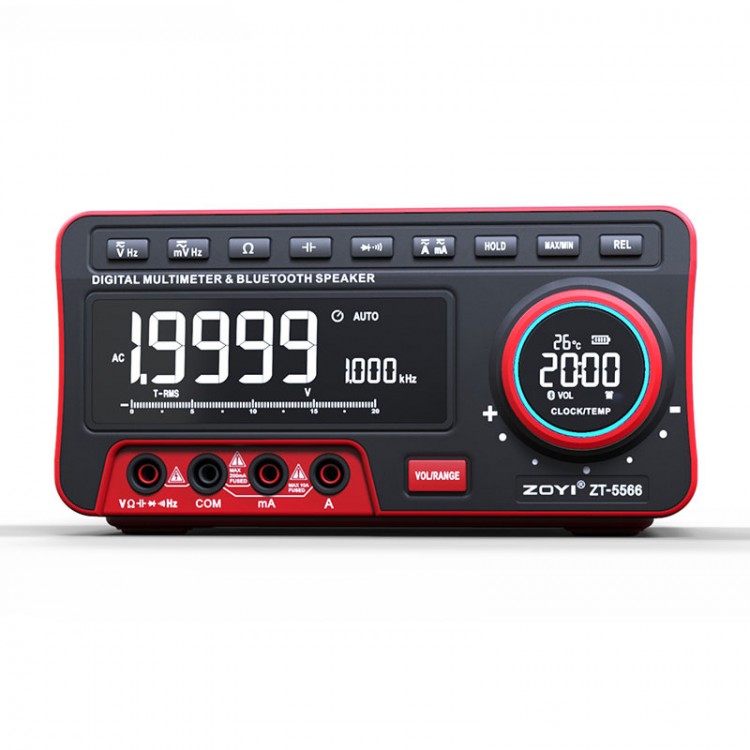

ZOYI ZT-5566 Digital Multimeter & Bluetooth Speaker Desktop Multimeter Tester 19999 Counts

ZOYI ZT-5566 Digital Multimeter & Bluetooth Speaker Desktop Multimeter Tester 19999 Counts

Description:
The Bench Top Bluetooth Speaker Multimeter is a unique multi-functional device that has 19999 digits Dual Display and Analog Bar Graph . Measure speed is about 3 per second and with more functions including DC/AC Voltage, DC/AC Currents, Resistance (Ω), Capacitance, Frequency (Hz), Duty Cycle, Diode and Continuity Check. Moreover, you can connect BLUETOOTH to PLAY MUSIC. The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal/minimal value measuring.

This product is an automatic range multi-function digital multimeter with 19999 word high precision display. The meter is designed with true rms measurement, LCD display, adjustable backlight brightness, clear reading, clock, alarm clock, wireless audio, ambient temperature display.

Features:
1. Digital Multimeter & BT Speaker, play music by linking wireless.
2. True RMS: The RMS/DC transform avoids the influence of voltage waveform distortion on can test high accuracy and it can self-calibrated chip.
3. It is equipped with clock, alarm clock, wireless to play music, temperature display.
4. With screen with backlight, and data hold function, easy to record value and users can work in a dark environment.
5. Function: Test AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency and duty cycle, Test for Continuity, Test Diodes, etc.

Specifications:
1. Multimeter:
- Display (LCD): 19999 counts
- Ranging: Automatic/Manual
- Material: ABS+TPE
- Operating Temperature: 0~40℃; Humidity: ＜75%
- Storage Temperature -20 to 60℃; Humidity ＜80%
- DC voltage: 1.9999V 0.0001V/ 19.999V 0.001V/ 199.99V 0.01V/ 199.99V 0.01V/ 1000.0V 0.1V ±(0.05%+3)
- DC voltage: 19.999mV 0.001mV/ 199.99mV 0.01mV
- AC voltage: 1.9999V 0.0001V/ 19.999V 0.001V/ 199.99V 0.01V/ 750.0V 0.1V±(0.3%+3)
- AC voltage: 19.999mV 0.001mV/ 199.99mV 0.01mV
- DC current: 1.9999A 0.0001A/ 19.999A 0.001A±(0.5%+30)
- DC current: 19.999mA 0.001mA/ 199.99mA 0.01mA ±(0.5%+10)
- AC current: 1.9999A 0.0001A/ 19.999A 0.001A ±(0.8%+30)
- AC current: 19.999mA 0.001mA/ 199.99mA 0.01mA ±(0.8%+10)
- Resistance: 199.99Ω 0.01Ω ±(0.5%+3); 1.9999kΩ 0.0001kΩ/ 19.999kΩ 0.001kΩ/ 199.99kΩ 0.01kΩ ±(0.2%+3); 1.9999MΩ 0.0001MΩ/ 19.999MΩ 0.001MΩ ±(1.0%+3); 199.99MΩ 0.01MΩ ±(5.0%+5).
- Capacitance: 9.999nF 0.001nF ±(5.0%+20); 99.99nF 0.01nF/ 999.9nF 0.1nF/ 9.999μF 0.001μF/ 99.99μF 0.01μF/999.9μF 0.1μF±(2.0%+5); 9.999mF 0.001mF ±(5.0%+5).
- Frequency: 99.99Hz 0.01Hz/ 999.9Hz 0.1Hz/ 9.999kHz 0.001kHz/ 99.99kHz 0.01kHz/ 999.9kHz 0.1kHz/ 6.000MHz 0.001MHz ±(0.1%+2)
- Update rate: 3 times/ second
- True RMS: Yes
- Data hold: Yes
- Backlight: Yes
- Automatic power off: Yes
- Diode: Yes
- Continuity: Yes
- Dimension: 19 x 9.5 x 13cm/7.5 x 3.7 x 5.1"
- Weight: 895g/2lb (without batteries)

2. Wireless speaker technology parameters:
- Wireless version: V5.0
- Transfer distance: ≤10m
- Rated power: 2 x 4W RMS
- Frequency response range: 100Hz-18KHz
- Distortion: ≤1%
- Signal to noise ratio: ≥76dB

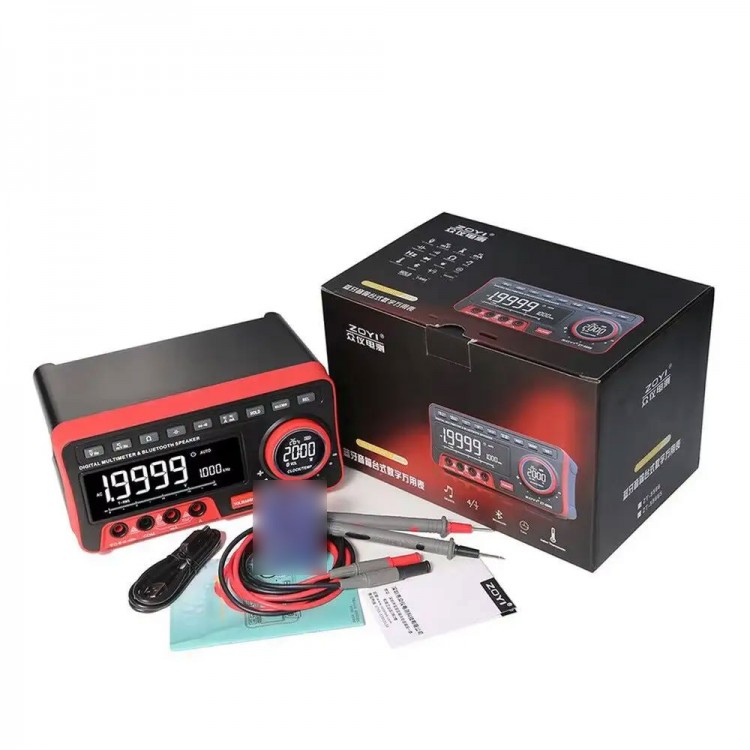

Package Included:
- 1 x Multimeter
- 2 x Test Leads
- 1 x USB Cable
- 1 x User Manual

Attention:
- Turn off music playing when use mV range, otherwise the accuracy will be affected.
- 2pcs 18650 lithium batteries are not included.
