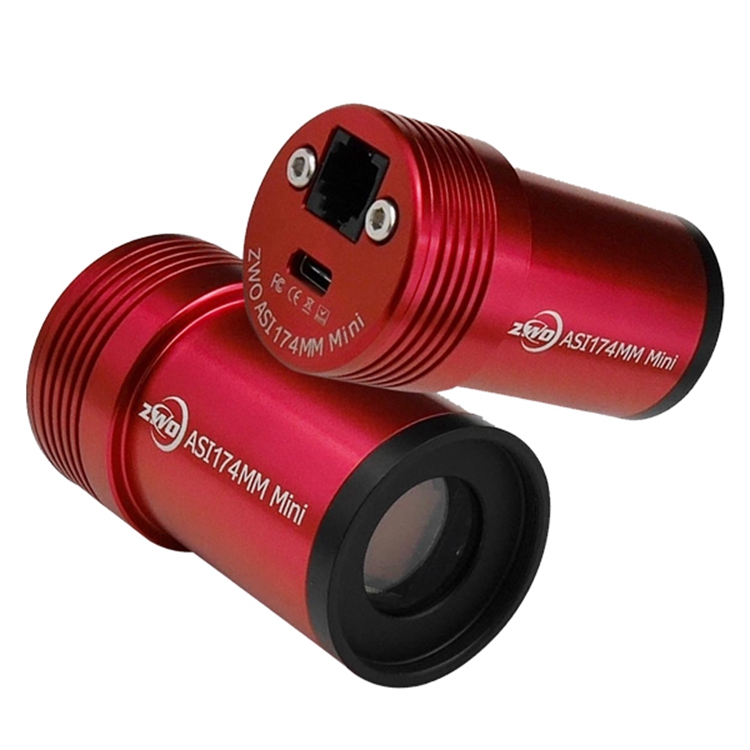

ZWO ASI174MM Mini Guide Astronomy Camera 1/1.2” USB2.0 Type-C Port for Planetary Imaging and Guiding

ZWO ASI174MM Mini Guide Astronomy Camera 1/1.2” USB2.0 Type-C Port for Planetary Imaging and Guiding

Description:

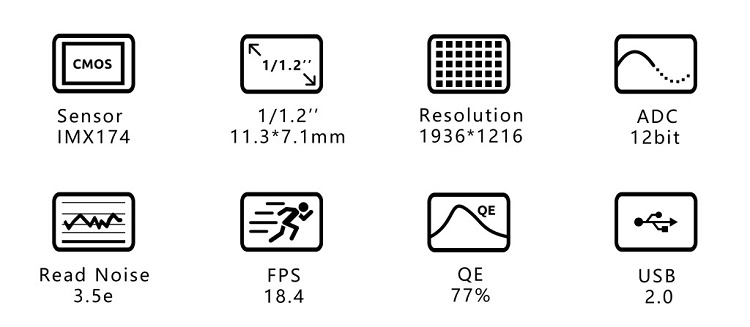

- ASI174MM Mini camera adopts for Sony IMX174LLJ/IMX174LQJ 1/1.2” sensor (11.3mm x 7.1mm). This camera has a resolution of 1936 x 1216 Pixel size is 5.86um x 5.86um. The camera adopts a 12bit ADC with a peak quantum efficiency of 77% and a full well charge of 32400e.

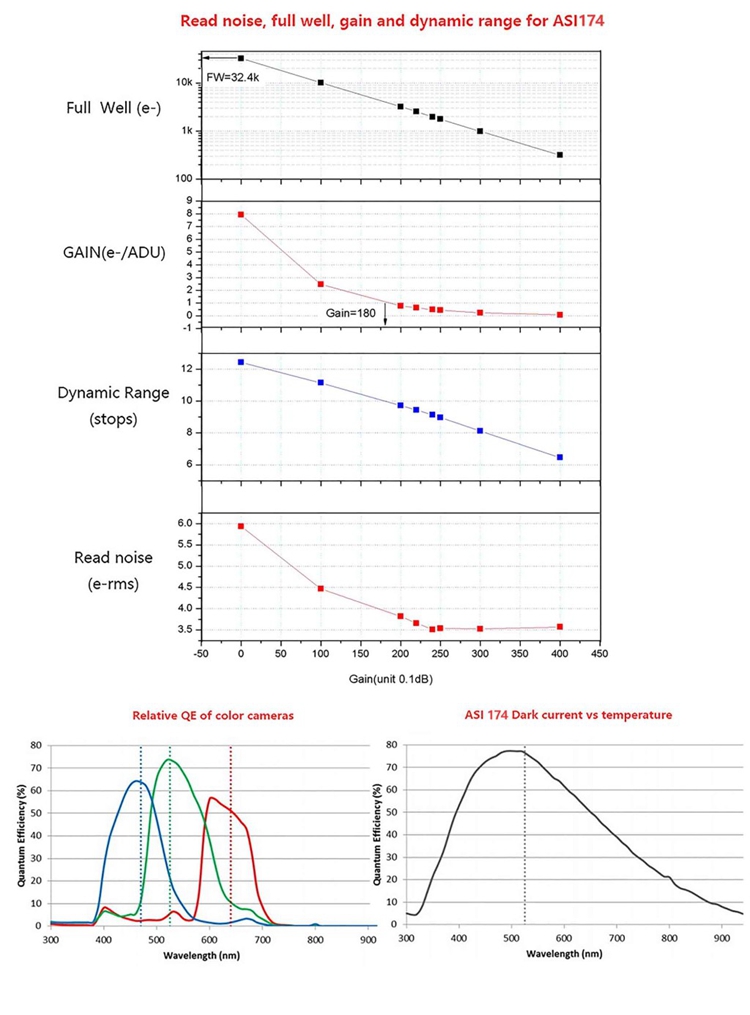

- The ASI174MM Mini camera has a 3.5e readout noise, high dynamic range, global shutter speed, and 77% peak quantum efficiency. It uses AR coated sealed windows, which have strong infrared sensitivity.

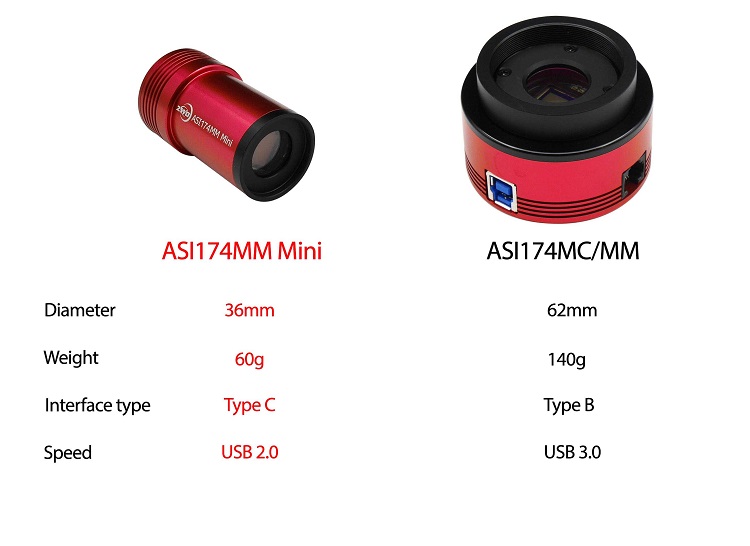

- Compared to ASI174MM, ASI174MM Mini has a compact appearance, lighter weight, and can have the same focusing position as the eyepiece.

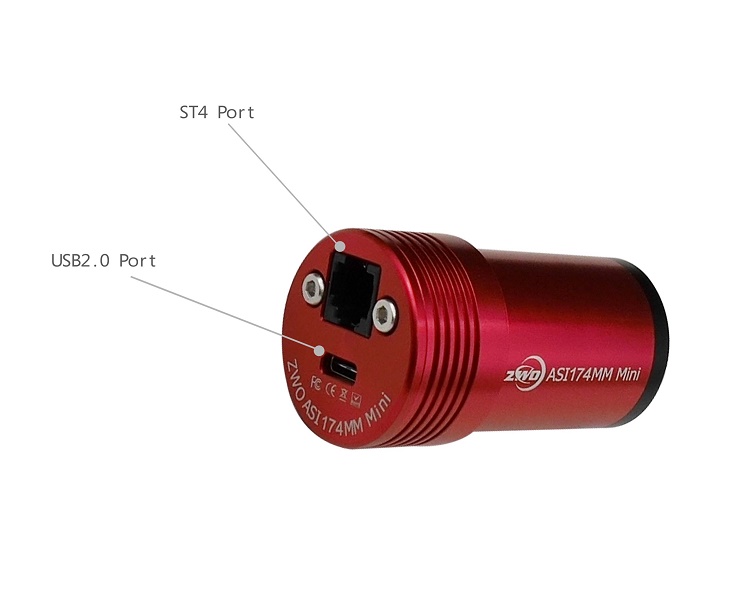

- - Mini camera has a USB2.0 Type-C port, it can be inserted on both sides, making it easier to operate than the square port of Type-B.
- ST4 port can be used to connect to the AUTO GUIDE port of the equatorial instrument to control the equatorial instrument for guiding stars.

Specification:
- Sensor: 1/1.2”CMOS IMX174LLJ / IMX174LQJ
- Resolution: 2.3Mega Pixels 1936 x 1216
- Pixel size: 5.86um
- Exposure range: 32us-300s
- ROI: Supported
- Interface: USB2.0
- Bit rate: 12bit output (12bit ADC)
- Adaptor: 1.25”/ M28.5X0.6

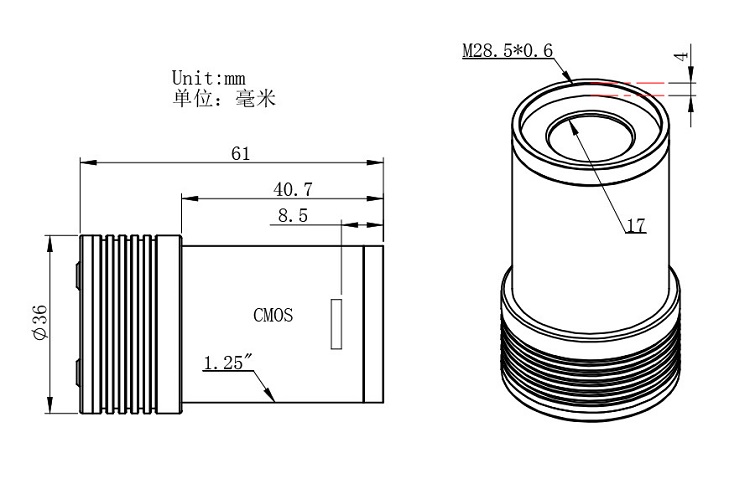

- Dimension: (diameter)36mm x 61mm
- Weight: 140g
- Working temperature: -5℃ ~ 45℃
- Storage temperature: -20℃ ~ 60℃
- Working relative humidity: 20% ~ 80%
- Storage relative humidity: 20% ~ 95%

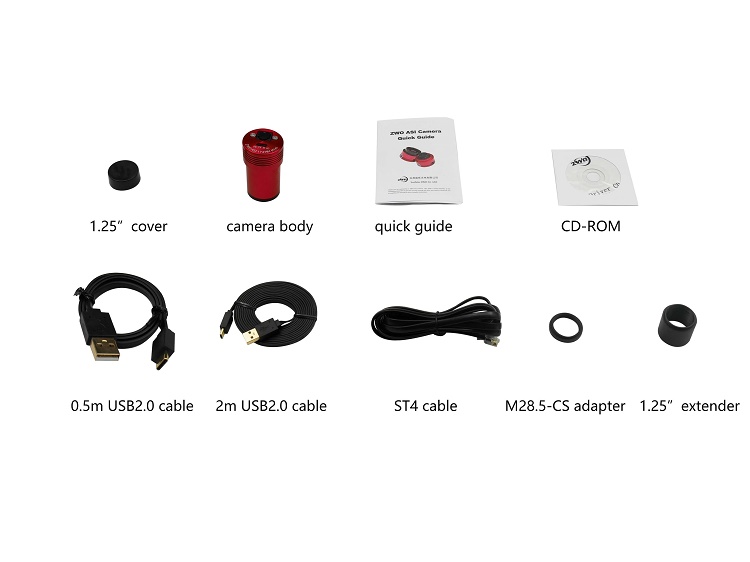

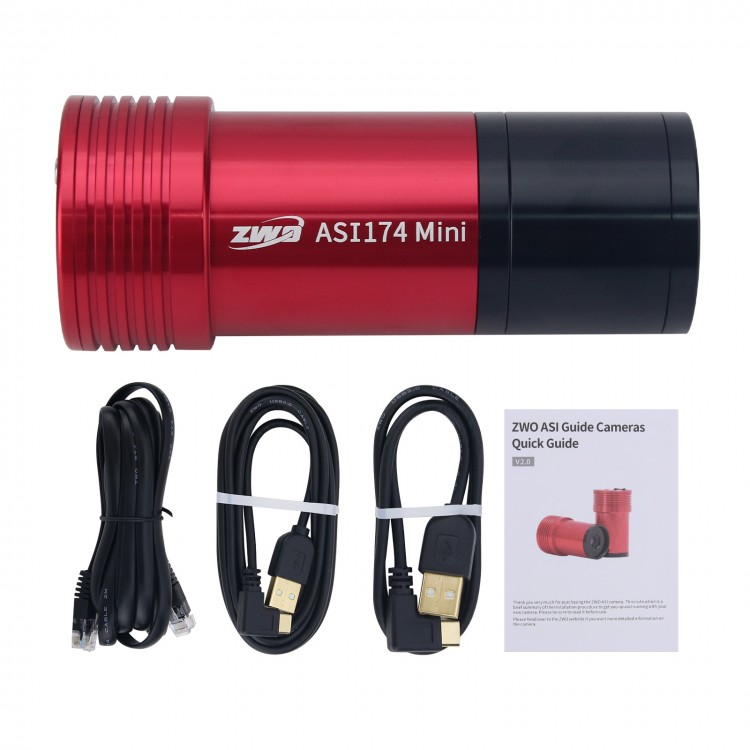

Package Included:
- 1 x Camera
- 1 x 1.25" Cover
- 1 x Quick Guide
- 1 x CD-ROM
- 1 x 0.5m USB2.0 Cable
- 1 x 2m USB2.0 Cable
- 1 x ST4 Cable

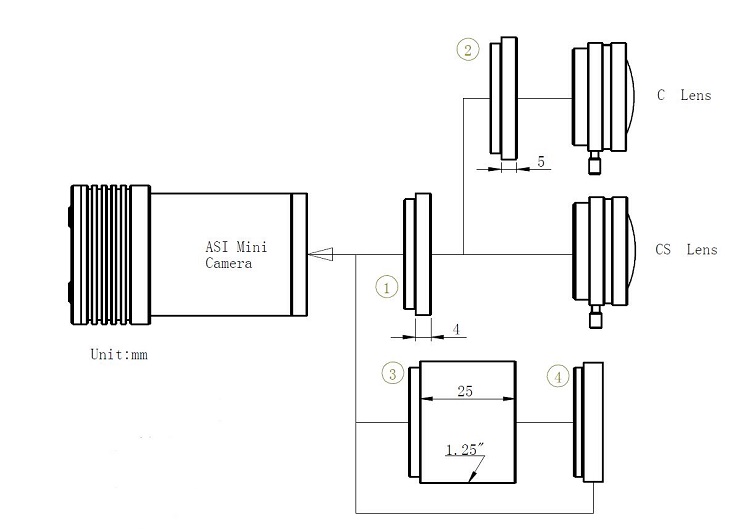

- 1 x M28.5 - CS Adapter
- 1 x 1.25" Extender
