ZWO ASI224MC HD High Sensitivity Astronomy Camera High Speed Lunar Planetary Camera USB3.0 for Sony IMX224 Sensor

ZWO ASI224MC HD High Sensitivity Astronomy Camera High Speed Lunar Planetary Camera USB3.0 for Sony IMX224 Sensor

Description:
- ASI224MC is an ultra clear, high-speed, and high sensitivity camera with standard USB3.0 interface. It is suitable for astronomical photography, microscopy, industrial vision, etc.

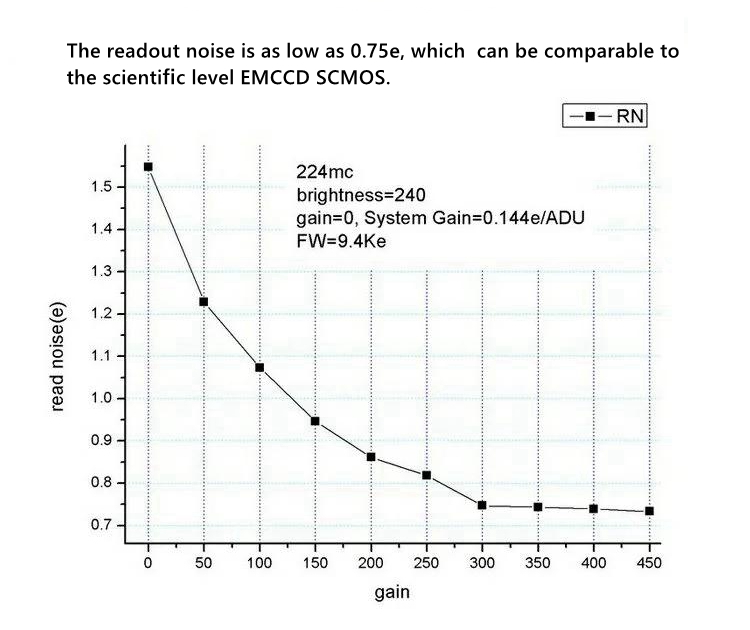

- Sensor: for Sony IMX224 uses for SONY Exmor and NIR enhancement technology to achieve extremely low readout noise (0.75e-1.5e) and high sensitivity, especially in the infrared band where sensitivity is greatly enhanced.

Specification:
- Sensor: 1/3" CMOS IMX224/IMX225
- Resolution: 1.2Mega Pixels 1304X976
- Pixel Size: 3.75um
- Sensor Size: 4.8mm x 3.6mm
- Diagonal: 6.09mm
- Exposure Range: 32us - 1000s
- ROI: Supported
- ST4 Guider Port: Yes
- Focus Distance to Sensor: 12.5mm
- Shutter Type: Rolling Shutter
- Protect window: AR coated window
- Operating System Compatibility: for Mac, for Windows, for Linux
- Interface: USB3.0/USB2.0
- Bit rate: 12bit output (12bit ADC)
- Adaptor: 2”/ 1.25”/M42X0.75
- Dimension: 62mm (diameter) x 36mm
- Weight: 120g or 4.2 ounces (without lens)
- Working Temperature: -5°C - 45°C
- Storage Temperature: -20°C - 60°C
- Working Relative Humidity: 20% - 80%
- Storage Relative Humidity: 20% - 95%

Features:
- Software function: manual (automatic) gain and exposure, white balance, photography and recording
- Exposure time: 32US -1000S
- Development support: provide SKD secondary development package, standard DirectShow interface. Support system for Windows, for Linux, and for MAC OSX
- Digits for analog-to-digital conversion: 10bit and 12bit (output)
- Lens interface: standard CS interface
- Power supply method: USB3.0 interface

Supported Resolution:
- 10bit ADC / 12bit ADC
- 1304 x 975 150fps / 64fps
- 1280 x 960 152.4fps / 65fps
- 800 x 600 241.2fps / 102.9fps
- 640 x 480 299.4fps / 127.6fps
- 320 x 240 577.9fps / 256.4fps
- The resolution can also be set arbitrarily.
- Note: The smaller the resolution, the faster the frame rate.

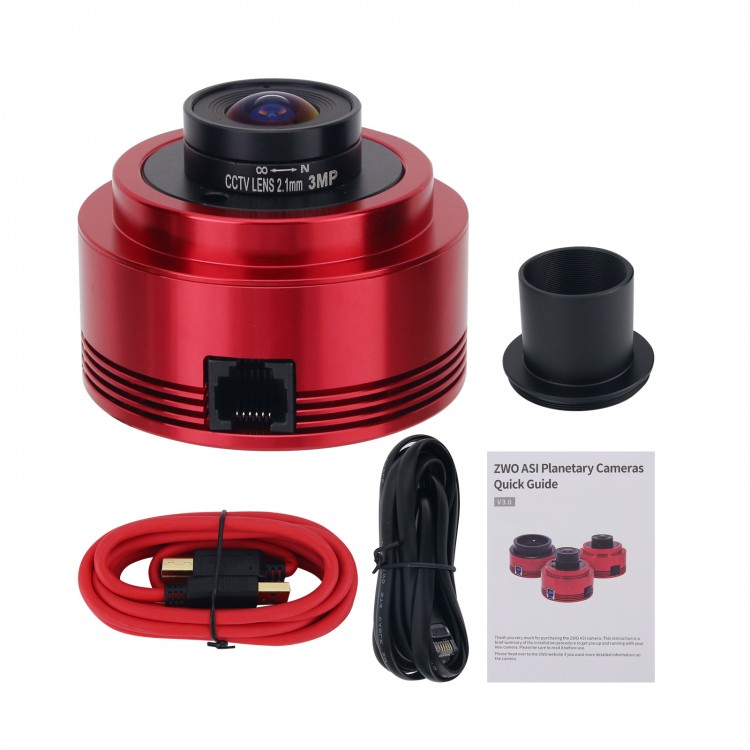

Package Included:
- 1 x Camera Set
