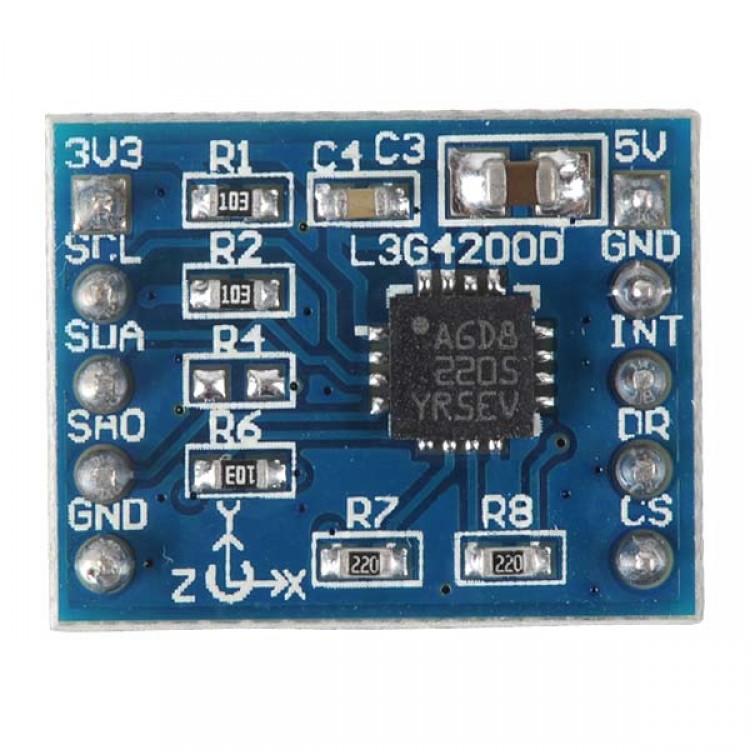

3-AXIS Gyroscope Gyro L3G4200D Sensor Board Module Self Balance Robot
Features:
-3-Axis angular rate sensor (yaw, pitch, and roll)
- Supports I2C and SPI communications
- Three selectable scales: 250/500/2000 degrees/sec (dps)
- High shock survivability
- Embedded temperature sensor -40 to +185 °F (-40 to + 85 °C)
- Embedded power-down and sleep mode
- 16 bit-rate value data output
- 8-bit temperature data output
Suitable for:
- Gaming;
- 3D motion control;
- Virtual reality input devices;
- Robotics;
- UAV, IMU systems
Specifications:
- Power Requirements: 3.3V to 5 VDC
- Communication Interface: I2C (up to 400 kHz) or SPI (10 MHz; 4 & 3 wire)
- Operating temperature: -40 to +185 °F (-40 to +85 °C)
- Dimensions: 14 x 18 mm
Package included:
- 1x 3-AXIS Gyroscope Gyro L3G4200D Sensor Board Module Arduino Self Balance Robot
