39/42 CNC Stepper Motor Driver 128 Microstep 1.8A Back Installation Stepping Motor Driver

Availability: Out Of Stock

  • Price:$16.73
  • Price in reward points: 167 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $16.40 $16.06 $15.56 $14.89 Contact US
Quantity:

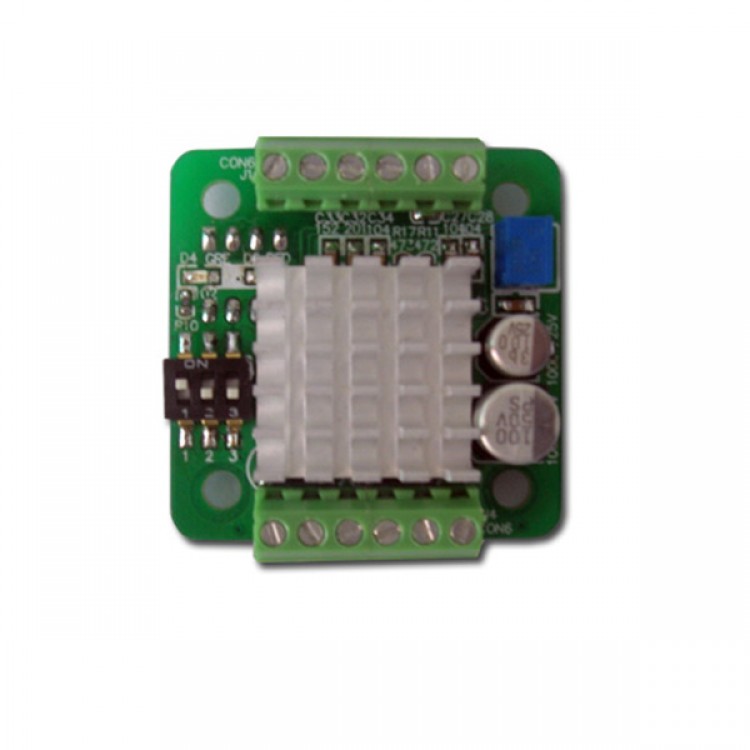

39/42 CNC Stepper Motor Driver 128 Microstep 1.8A Back Installation Stepping Motor Driver

Description:
- 39/42 back motor drive is a professional two-phase stepper motor drive, can achieve positive &negative control. Via the S1 S2 S3 3 dial the code switch selection of gear subdivided control (1, 2, 4, 8, 16, 32, 64, 128), via the adjustable resistance choose 0.18 A 0.18 A current control. Suitable for driving 42,39,35,28,20 two phase, four phase hybrid stepping motors. Drive with low noise, little vibration, stable operation, convenient installation, etc.

Specification:
- Input voltage: 9-32V,Recommend:12V
- Current:Recommend :12V/5A
- Output current:0.18-1.8A
- Max power consumption power:55W
- Microstep:1, 2, 4, 8, 16, 32, 64, 128
- The temperature Working temperature - 10 ~ 45 C Storage temperature and 40 C~ 70 C
- Wet degree:no condensation and water droplets
- Weight:0.1kg


Micro

pulse

S1

S2

S3

1

200

ON

ON

ON

2

400

ON

ON

OFF

4

800

NO

OFF

ON

8

1600

ON

OFF

OFF

16

3200

OFF

ON

ON

32

6400

OFF

ON

OFF

64

12800

OFF

OFF

ON

128

25600

OFF

OFF

OFF
