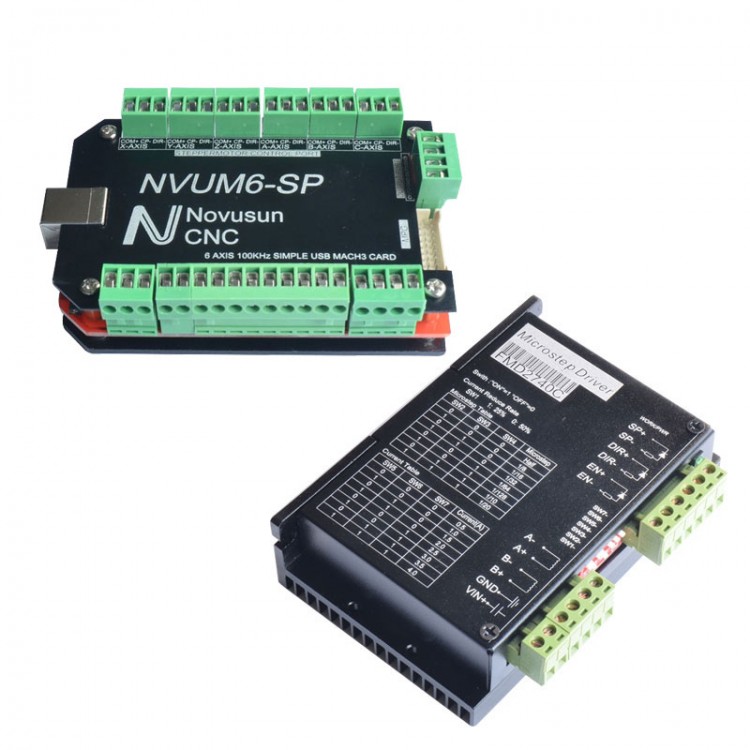

NVUM6-SP USBMACH3 Board Card 6 Axis Controller + FMD2740C Stepper Motor Driver Controller

Tags: Controller Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$90.83
  • Price in reward points: 908 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $89.01 $87.20 $84.47 $80.84 Contact US
Quantity:

NVUM6-SP USBMACH3 Board Card 6 Axis Controller + FMD2740C Stepper Motor Driver Controller


USBMACH3 Interface Board Card 6 Axis Controller CNC 100KHz for Stepper Motor NVUM6-SP


Characteristics:
- Model:6-axis 100 khzusbmach 3 interface card
It can control 6 pcsmoteur at the same time
- With 10 channels programmable input interface
with 3channels, programmeable output interface
1 channel MPG interface with management
the main axis output control PWM
- USB interface support MARCH 3 logical
interfacem MSCH3 ub software support
- DCDC electrical insulation
- Optocoupler
- Max.100k stepper motor pulse control output, suitable for most decncmachine system

Application:
In the following field, the treatment of a variety of patternssuch embossing plate and single mould, mould, button, zipper die, models and characters of printing and gold stamping mould, casting equipment, mold, and other glass.
- advertising, signs, architectural models, our cards, badges, badges, nameplate, logo signs, numbers, signs, crafts decoration, decoration, furniture.
in the portrait, landscape, calligraphy lettering, seals and other graphic art sculpture, calligraphy, bas relief, etc.
with cnc controller, suitable for all kinds of small and medium-sized automation equipment, instruments.


FMD2740C CNC Driver 50V/4A/128 Microstep Hybrid Stepper Motor Driver Controller

Instructions: Click here

FMD2740C stepper motor driver

1,Brief introduction
FMD2740C driven by Japanese sanyo's chip,After multiple optimize R & D and production of high-subdivision 2-phase stepper motor drives, suitable for driving small and medium-sized phase current is less than 4A 2-phase or 4-phase hybrid stepping motor. Due to the adoption of the new bipolar constant current chopper drive technology, using the same motor can output more speed and power than other drivers. Segments stepper motor running accuracy improved, reduces vibrations and noise reduction.


2,Features
1. High-performance, low price
2. Bipolar constant current chopping mode
3. Power supply voltage 12 to 50VDC
4. High-speed optocoupler signal isolation input
5. 20kHz chopping frequency
6. Subdivision precision 2\8\16\32\64\128\10\20 optional
7. Electrical input signal is TTL compatible
8. Stationary current is automatically reduced by half
9. Shape design is convenient for installation
10.Maximum drive current is 4A
11.Drive any 4A phase current of 2-phase or 4-phase hybrid stepping motor


3,Applications
Suitable for a variety of small and medium-sized automation equipment and instruments,for example: Small engraving machine, SMT machine, etc.

4,wiring defined

Weak signal interface

Signal

Function

SP+

Pulse signal + end

SP-

Pulse signal - end

DIR+

Direction signal +end

DIR-

Direction signal-end

EN+

Enable signal +end

EN-

Enable signal -end



Strengths connection port

Signal

Function

VIN+

12to50 v dc power supply input +end,it is recommended to use 36V3A

GND

DC power supply connection ground

A+

Stepper motor A + Phase terminal

A-

Stepper motor A - Phase terminal

B+

Stepper motor B+ Phase terminal

B-

Stepper motor B - Phase terminal


NOTE:  This drive does not contain anti-anti-interpolation circuit so non-input positive and negative power supply upside down! Otherwise it will damage the drive!



5,The electrical characteristics

5,The electrical characteristics

6,The use of the environment and parameters

Cooling method

Natural cooling or forced air cooling

Use of the environment

Occasions

Avoid dust, oil mist and corrosive gases

Temperature

0°C-+50°C

Humidity

40-90%RH

Vibration

6m/s2 MAX

Storage temperature

-20°C-+65°C

Weight

250g

7,Mechanical installation size

8, Power supply

   The supply voltage can work normally in between DC12V-50V, FMD2740A driver can use ordinary switch DC power supply, can also be used for transformer and the bridge rectifier and filter capacitor, capacitance desirable 2000U to 5000U. Note rectified voltage ripple crest does not exceed 50V.Recommended the user to use the 24V-32V DC supply , avoid the grid fluctuations over drive voltage operating range.

Note:

1, Wiring should pay attention to the power of positive and negative Do not be reversed;

2, In order to reduce costs, multiple drives can share a power supply. But it should improve the rated power and rated output current of the power and attention to cooling.



9,Attenuation of the DIP switch settings

Decay mode

SW1

SW2

Slow decay

OFF

OFF

Mixed decay

ON

OFF

Fast decay

OFF

ON



 10,Subdivision DIP switch settings

10,Subdivision DIP switch settings



11,Current DIP switch settings



12,Drive motor controller wiring diagram

13,Electrical wiring

The FMD2740A driver can drive all current 4A 4-wire, 6-wire or 8-wire 2-phase / 4-phase motors, are detailed below 4-wire, 6-wire, 8 wire stepper motor connection:

 14,Matching of the drive and motor

FMD2740A driver can drive the domestic and foreign manufacturers of 2-phase or 4-phase motor, in order to obtain the most satisfactory driving, you need to choose a reasonable supply voltage and current setting. Supply voltage determines the level of the high-speed performance of the motor, and the current set value determines the output torque of the motor.



Supply voltage selected

Generally speaking, the higher the supply voltage, the greater the torque motor at high speed, the more it can avoid the high speed out. But another aspect, the voltage is too high will lead to over-voltage protection, and can even damage the drive, but also in the high-pressure work, low speed vibrations.



The output current is set

For the same motor, the greater the current setting, the higher speed, the current motor and drive more heat. So under normal circumstances the current setting into a powered machine warm but not too hot long-term value.



Note: the current settings after you run the motor for 15-30 minutes, if the motor temperature is too high, you should reduce the current settings. If the motor current setting, the motor output torque is not enough to improve heat dissipation conditions to ensure that the motor and drive are not hot


Package List:
-  1 x  Stepper Motor Controller
-  1 x  Interface Board
-  1 x User manual
