Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $174.31 | $170.76 | $165.42 | $158.30 | Contact US |
4CH Stand Alone H.264 Network DVR System FREE 500G HDD IN Support 3G Mobile View
Product Overview:
The series DVR is designed specially for security and defence field which is an outstanding digital surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces standard H.264mp video compressed format and G.711A audio compressed format which insures the high quality image, low error coding ratio and single frame playing. It introduces TCP/IP network technology which achieves the strong network communication ability and telecommunication ability.
The series DVR can be used individually or online applied as a part of a safety surveillance network. With the professional network video surveillance software it achieves the strong network communication ability and telecommunication ability.
The series DVR can be applied in the bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy and so on.
Functions:
- H.264 real-time high compression, support dual stream network transmission
- Stand-alone Linux2.6 operation system
- Graphics & Windows OSD interface
- Support D1, HD1 and CIF recording resolution
- ADPCM audio compression
- 16-bit true-color semi-transparent graphical menu interface, menu options tip
- A variety of recording modes: manual, timing, motion and alarm recording
- Optimized 4-ch simultaneous playback (single playback for 8-ch ones)
- A variety of backup (USB disk, mobile hard disk, network)
- One USB2.0 for data backup, one USB1.1 for the mouse operation
- Multi-functional operation, recording, playback, monitor, backup and network transmission can be realized at the same time
- Dual stream technology
- Support network to implement multi-screen real-time browsing, parameter setting,copy or playback
- Support mobile phone monitoring
- Support event classification and precise time search and playback
- Defaulted parameter value fast recovery
- Flexible USB interface for mouse
- Support sextuple operation: visual recording, playback, realtime video monitoring , back up, control, remote view
- Support to operate with USB mouse
- Support remote view with Mobile Phone
- Support to backup & upgrade with USB flash disk
- Support to real-time remote view with IE
- Support to transmit audio via network
- Selectable packing time for recording file
Specifications:
Compression | H.264 |
Video System | NTSC / PAL |
Operation System | Windows / Linux |
Video Input / Output | BNC 4-channel inputs / 1-channel outputs |
Audio Compression | 8kHz*16bit ADPCM |
Audio Input / Output | RCA 4-channel inputs / 1-channel outputs |
Display Frame Rate | PAL: 100 fps / NTSC: 120 fps |
Playback Resolution | PAL: CIF(352x288), HD1(704x288), D1(704x576) |
NTSC: CIF(352x240), HD1(704x240), D1(704x480) | |
Total Recording Frame Rate | PAL: 100fps@CIF |
NTSC: 120fps@CIF | |
Recording Mode | Always / schedule / motion detection / sensor triggered |
Recording Pack Time | 15/30/45/60mins selectable |
HDD Interface | Support SATA HDD & USB disk |
Ethernet | RJ45, 10M/100M |
Network Protocol | Support TCP/IP, UDP, DHCP, DNNS, PPPoE |
Network Function | Support preview live display remotely via mobile phone and real time monitoring via IE-based browser and/or network, and support parameter setting of DVR remotely |
USB2.00 | USB mouse, USB disk (backup, upgrade) |
Playback Mode | Normal play, fast forward, fast rewind, frame by frame |
PTZ Control | Built-in RS485, support PELCO-P & PELCO-D |
Power Consumption | 10~15W |
Working Temperature | -10°C to +40°C |
Working Humidity | 10% to 90% |

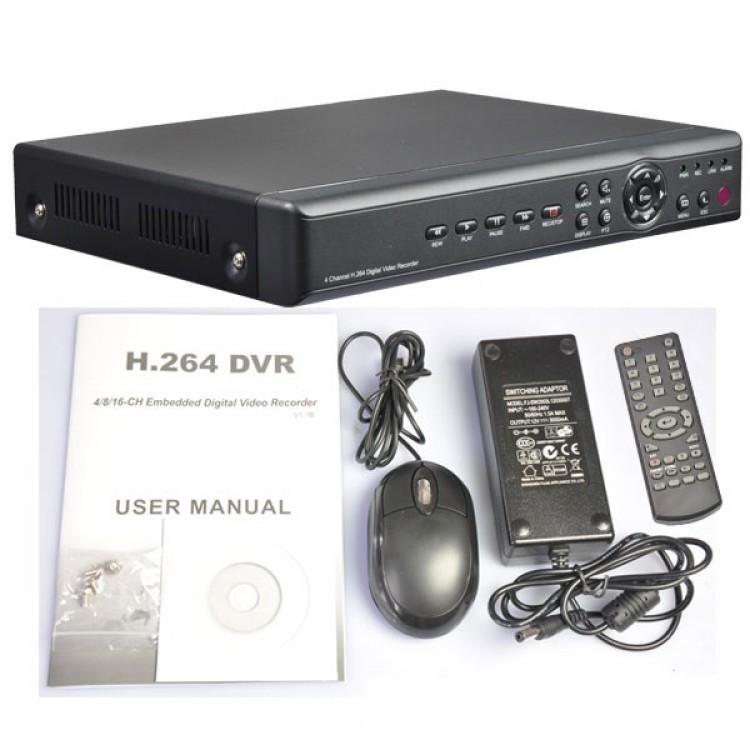

Package Includes:
- 1 x 4 Channel H.264 Network Stand-alone Digital Video Rcorder
- 1 X 500GB HDD
- 1 x Power Adaptor for Stand-alone DVR
- 1 x Power Cord for Stand-alone DVR
- 1 x Remote Controller for Stand-alone DVR
- 1 x Mouse for Stand-alone DVR
- 1 x CABLE connect Stand-alone DVR to TV
- 1 x CD SOFTWARE
- 1 x User manual (English)
