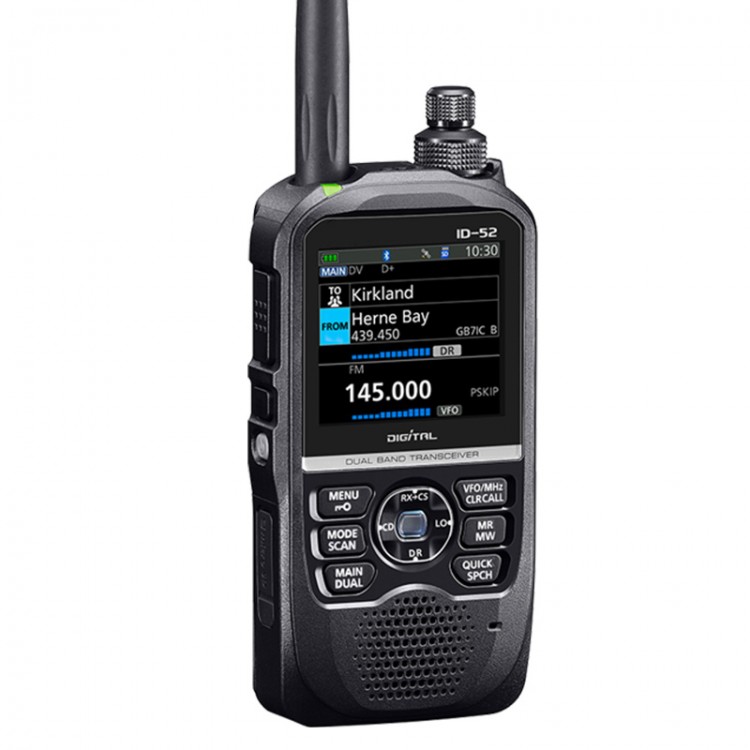

5W 5KM Walkie Talkie Waterproof Handheld Transceiver VHF UHF Radio Built-In Bluetooth Positioning System For ICOM ID-52

5W 5KM Walkie Talkie Waterproof Handheld Transceiver VHF UHF Radio Built-In Bluetooth Positioning System For ICOM ID-52

Features:
-144/430MHz D-STAR digital handheld radio brings the fun of amateur radio to you
- D-STAR: global network communication enables clear digital audio signal to communicate with international friends
- IPX7: Suitable for use in harsh outdoor environments
- Support D-STAR digital mode and conventional FM analog mode communication
- Color display: Equipped with a 2.3" color display with a resolution of 320x280 pixels for better visibility. You can choose black or white as the background color of the device
- Color dynamic waterfall spectrum display: The waterfall spectrum shows the signal in range and how the signal is changing, so you can get a more detailed view of frequency band conditions, including busy frequencies that are currently in use or idle frequencies that are not in use. In addition, the oscilloscope mode can be selected from center mode, fixed mode and fixed scroll mode
- Built-in Bluetooth: When using the Bluetooth function, it can be connected to the optional VS-3* multifunction Bluetooth headset for hands-free operation. In addition, you can also connect RS-MS1A for Android devices or RS-MS1I for iOS devices to achieve wireless control (RS-MS1A and RS-MS1I are not included)
- Integrated GPS/GLONASS Positioning System: Supports D-PRS mode for sending your location and displaying station location, distance and direction received from you. In addition to this, your current grid information is displayed. Location data can be used for features such as automatic location replies, nearby repeater searches, and GPS logs
- DV/FM dual-band receiver operation: It is equipped with dual receiver operating system, which can receive VHF/VHF, UHF/UHF and VHF/UHF bands at the same time, you can quickly respond to calls from the main band and sub-band. And the walkie-talkie can decode 2pcs DV digital signal at the same time
- Picture sharing: Supports the picture sharing function and can view the received pictures on its color display. Photos taken on the device for Android can be wirelessly transferred to the ID-52 via Bluetooth (using RS-MS1A or RS-MS1I)
- RS-MS1A/RS-MS1I wireless control software: ID-52 supports using Bluetooth function to connect to RS-MA1 series software on mobile devices to realize wireless control. RS-MA1 series software can control many functions of ID-52, such as DR/picture/text message/map function, etc. (*The software needs to be downloaded by the user. RS-M1A is suitable for Android devices, and RS-MS1l is suitable for iOS devices)
- Broadband reception range: The reception range of the A-band is very wide, supporting frequency reception in the range of 108-174MHz and 225-479MHz. This also includes the aviation frequency band, which supports AM and AM-N modes. In addition, a separate window is also supported to receive radio frequency bands (76.0-108.0MHz), and it will not affect dual-band reception. B-band reception ranges from 137-174MHz and 375-479MHz
- Brand new menu interface: Brand new menu interface, on the 2.3-inch screen, with colorful icons, can be more intuitive and faster to find the required setting items
- Equipped with micro USB port for USB charging: Features a versatile USB port with USB host functionality for charging device battery packs, PC programming, reading/writing of micro SD card contents, terminal/access point mode support, and CI- V control etc.
- With slot for micro SD card: insert a micro SD card to realize more functions such as voice recording, backup of device data, GPS log, QSO communication log, RX log, etc.
- 750mW audio output: The audio output power is 750mW. The speakers are located under the front panel of the device. The speakers provide a loud and pleasant audio experience while still providing IPX7 waterproof protection for the device

More Functions:
- Improve heat dissipation efficiency and achieve stable operation
- DV Fast Data Mode uses data instead of speech frames
- Record QSO in CSV data format (requires microSD card)
- Can be used with accessories of ID-51/ID-31 (such as battery and microphone)
- DV/FM near repeater search function
- Recording function (requires a micro SD card)
- External DC power jack
- Weather Channel Reception (USA) (Not all area coverage)

Specifications:
- Device type: Handheld walkie-talkie
- Battery capacity: 1880mAh
- Transmission frequency range: 144-146MHz and 430~440MHz
- Receiving frequency range: A-band: 108-174MHz and 225-479MHz; B-band: 137-174MHz and 375-479MHz
- Radio frequency band: 76.0-108.0MHz
- Transmitting Type: F2D, F3E and F7W
- Modes: DV, FM, FM-N, WFM*, AM*, AM-N* (*WFM, AM and AM-N only support reception)
- Number of memory: 1000 memory channels, 4 call channels, 50 scan edges, 100 skip channels, 500 radio channels, 2500 repeaters, 300 call signs and 300pcs GPS memory
- Frequency step: 5, 6.25, 8.33*, 10, 12.5, 15, 20, 25, 30, 50, 100, 125 and 200kHz (*selectable based on working bands)
- Operating temperature range: -20℃ to +60℃; -4℉ to +140℉
- Frequency Stability: ±2.5ppm (-20℃ to +60℃, based on 25℃)
- Antenna impedance: 50Ω (SMA)
- Requirements of power supply: Battery pack DC 7.4V (using BP-272); DC 7.2V (using BP-307); Alkaline battery DC 5.5V (using BP-273); External power supply DC 10-16V
- Power consumption (at 7.4V DC): maximum current when transmitting: Less than 2.5A; max current when receiving: less than 450mA (DV) and less than 400mA (FM and FM-N) (built-in speaker, 8Ω)
- Dimensions (excluding size of protrusions): Main body size: 61.1 x 121.6 x 29.7mm/2.4 x 4.8 x 1.2" (WxHxD); Dimensions (with BP-272): 61.1 x 121.6 x 34.8mm/ 2.4 x 4.8 x 1.4"(WxHxD)
- Weight: Approx. 330g/11.6 oz (with BP-272 and antenna)
- Modulation mode: DV: GMSK reactance modulation; FM and FM-N: FM reactance modulation
- Output power (at DC 7.4V): 5W, 2.5W, 1.0W, 0.5W and 0.1W (High, Mid, Low2, Low1, S-low)
- Transmit spurious: less than -60dBc (High, Mid); less than -13dBm (Low2, Low1, S-low)
- Maximum frequency deviation: ±5.0/2.5kHz (FM/FM-N)
- Support impedance of external microphone: 2.2kΩ

Package Included:
- 1 x Set of Walkie Talkie
