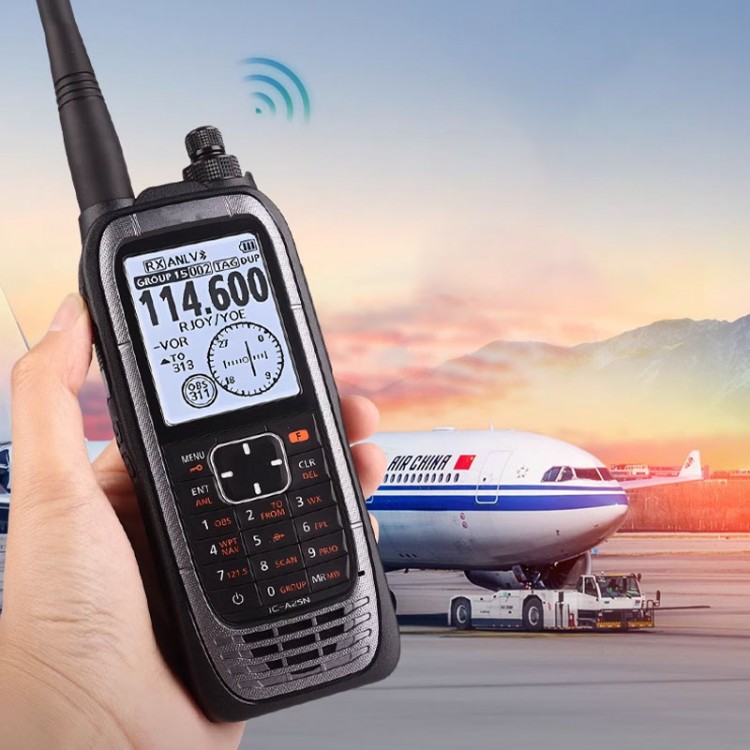

IC-A25N Aviation Handheld Walkie Talkie 6W PEP Built-in GPS Module IP57 Waterproof Support for VOR Navigation Function for ICOM

IC-A25N Aviation Handheld Walkie Talkie 6W PEP Built-in GPS Module IP57 Waterproof Support for VOR Navigation Function for ICOM

Description:
- The simplified waypoint NAV guides you to a destination by using current position information from GPS (also GLONASS and SBAS). The waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. In the Direct-To NAV, the IC-A25N directly guides you to a specified waypoint. In the Flight Plan NAV, the transceiver guides you to a sequential series of waypoints. Up to 10 flight plans and 300 waypoints can be memorized in the IC-A25N. Position information imported from a device for iOS (RS-AERO1I required) can be used as a waypoint.

Flight Plans with App for iOS:
- Using for RS-AERO1I (for iOS) application, you can make flight plans on a device and import the plan into the IC-A25N via Bluetooth. The following four functions are available:
1. Create a flight plan
  You can make flight plans on a device by using preprogrammed waypoints.
2. Set Direct-To NAV
  You can select a point on the map and export it to the IC-A25N for Direct-To NAV.
3. Display flight plan information
  A flight plan in the IC-A25N can be displayed on a device.
4. Display waypoint information
  Preprogrammed waypoints can be exported to a device and plotted on an map application.

VOR Navigation Functions:
- The CDI (Course Deviation Indicator) is detailed like a real VOR instrument, and displays any deviation from your course.
- The OBS (Omni Bearing Selector) enables you to change course from the original flight plan.
- The TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
- The ABSS (Automatic Bearing Set System) function enables you to set the current course as a new course in two simple steps.

Near Station Search Function:
- The near station search function assists you in accessing nearby ground stations. The function searches for nearby stations using the station memories that have GPS position information. To use the near station search function, position data and frequencies of the ground stations must be programmed.

Class-Leading High Power RF Output:
- Output power is increased to approximately 6W typical (PEP) and 1.8W typical (carrier) compared to the IC-A24 (5/1.5W (PEP/carrier)). This expands the communication coverage and enhances the safety of aircraft operation.

Easy-to-Use Interface:
- Often used functions are assigned to the keypad and you can directly access a desired function. The enlarged flat sheet keypad offers smooth and swift operation.

2.3 inch Large High Visibility LCD:
- The large and high visibility LCD provides user-friendly, graphic screens. The night mode option enables easy viewing in the dark. The operating frequency in large characters can be recognized at a glance.

"Flip-Flop" Channel Recall:
- The IC-A25N stores the last 10 channels used. You can easily recall those channels by using the directional keys or the channel knob on the top panel. This is convenient for switching between several channels, such as NAV and COM channels.

Built-in Bluetooth for Hands-Free Operation:
- A third-party wireless Bluetooth headset, for 3M Peltor WS 5, provides convenient hands-free operation. Also, by using the optional VS-3 Bluetooth headset, the side tone function can be used.
- Note: Compatibility not guaranteed. Bluetooth connection has not been tested for all Bluetooth compatible devices with this product. This does not guarantee that all devices will work with this product.

Intelligent Battery with Detailed Battery Status:
- The supplied BP-288, 2350mAh (typical) intelligent battery pack, provides up to 10.5 hours of operating time. You can check the condition of the battery pack in the battery status screen. It is very useful for optimum charging and battery health maintenance.
- Typical operation with Tx: Rx (Max.audio): standby=5:5:90. (Bluetooth OFF, GPS ON)

Other Features:
- IP57 dust-protection and waterproof construction
- Operate with six AA size alkaline batteries with the BP-289 battery case
- BNC antenna
- 121.5MHz emergency key
- Weather channels
- Priority watch
- VFO scan, memory channel scan, priority scan
- ANL (Auto Noise Limiter) for noise reduction
- Side tone function
- Internal VOX capability
- 300 memory channels (in 15 memory groups) with 12 character names
- 8.33kHz channel spacing

Specification:
- Model: IC-A25N
- Frequency range:
  TX: 118.000 - 136.992MHz (COM)
  RX: 108.000 - 136.992MHz (NAV & COM); 161.650 - 163.275MHz (WX)
- Transmitting power: 6.0/1.8W (peak/cw, typ.)
- Number of memory channels: 300 channels/15 groups
- Channel spacing: 25/8.33kHz
- Battery capacity: 2350mAH (BP-288)
- Power supply voltage: built-in battery DC7.2V; external power supply DC11.0V
- Current consumption: <1.8A for transmitting; <500mA for receiving (at maximum volume); 90mA for standby
- Antenna interface: BNC female connector
- Antenna impedance: 50ohms
- Working temperature: -10℃ to +60℃
- Net weight: 340g (including battery weight)
- Product size: 58.9 x 148.4 x 31.8mm (excluding antenna length)

Approval Information:
- Device name: VHF FM radio
- Model: IC-A25N
- Approval code: 2018HJ0692
- Frequency range: 118 - 136.975MHz
- Duty bandwidth: ≤6.8kHz
- Date of issue: 2022-10-24
- Valid date: 2026-01-30

Package Included:
- 1 x Walkie Talkie
- 1 x BP-288 Built-in Battery
- 1 x Charging Holder
- 1 x Back Clip
- 1 x BC-123SE Power Adapter
- 1 x Lanyard
- 1 x User Manual
