600TVL 48LED Audio Dome CCTV Cameras AVT618 8CH 1TB Network DVR Mobile Access System

Availability: Out Of Stock

  • Price:$575.41
  • Price in reward points: 5754 Reward Points: 58
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $563.90 $552.39 $535.13 $512.11 Contact US
Quantity:

600TVL 48LED Audio Dome CCTV Cameras AVT618 8CH 1TB Network DVR Mobile Access System


Overview:
The kit includes a 8CH H.264 standalone DVR,8pcs Indoor 600tvl AUDIO DOME security cameras system,FREE AUDIO/VIDEO/POWER/AUDIO cable,FREE CAMERA/DVR power supply, quickly and easily install.

The series DVR is designed specially for security and defence field which is an outstanding digital surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces standard H.264mp video compressed format and G.711A audio compressed format which insures the high quality image, low error coding ratio and single frame playing. It introduces TCP/IP network technology which achieves the strong network communication ability and telecommunication ability.

The series DVR can be used individually or online applied as a part of a safety surveillance network. With the professional network video surveillance software it achieves the strong network communication ability and telecommunication ability.

The series DVR can be applied in the bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy and so on.

This Camera is a day/night Indoor security auido dome camera ,with 60ft night vision.Uses us free for you cable, connects dvr to camera, Create your own security system.

Main functions
- Real-time surveillance
- analog interface and VGA interface (VGA interface is equipped selectively)
- surveillance function through monitor or display Storage
- non-working hard disk dormancy processing which is convenient to radiate heat, reduce power and extend the life-span
- special storage format which insures the data safety Compression
- real-time compression by individual hard disk which insures the audio and video signal stable synchronization Backup
- through SATA interface and USB interface such as USB equipment, removable hard disk and so on
- through net download the files in the hard disk Playback
- individual real-time video recording as well as searching, playback, network surveillance, recording check, downloading and so on
- multi-channel playback mode

Net operating
- through net tele-surveillance in the real time
- remote control PTZ
- remote check the recording and real-time playback

Alarm linkage
- only one channel relay alarm output which is convenient for the alarm linkage and light control at the spot
- protecting circuits at the alarm input and output interface which protects the main machine from damage Communication interface
- RS485 interface which fulfills the alarm input and PTZ control
- standard ethernet network interface which fulfills the telecommuting function Intelligent operating
- mouse action function
- fast copy and paste operating for the same setting

AVT618 8CH VIDOE/AUDIO NETWORK DVR Specifications:



Compression
H.264
Video System
NTSC / PAL
Operation System
Windows / Linux
Video Input / Output
BNC 8-channel inputs / 1-channel outputs
Audio Compression
8kHz*16bit ADPCM
Audio Input / Output
RCA 8-channel inputs / 1-channel outputs
Display Frame Rate
PAL: 200 fps / NTSC: 240 fps
Playback Resolution
PAL: CIF(352x288), HD1(704x288), D1(704x576)
NTSC: CIF(352x240), HD1(704x240), D1(704x480)
Total Recording Frame Rate
PAL: 200fps@CIF
NTSC: 240fps@CIF
Recording Mode
Always / schedule / motion detection
HDD Interface
Support SATA HDD & USB disk
Ethernet
RJ45, 10M/100M
Network Protocol
Support TCP/IP, UDP, DHCP, DNNS, PPPoE
Network Function
Support preview live display remotely via mobile phone and real time monitoring via IE-based browser and/or network, and support parameter setting of DVR remotely
USB2.00
USB mouse, USB disk (backup, upgrade)
Playback Mode
Normal play, fast forward, fast rewind, frame by frame
Backup
Backup AVI file via USB flash disk, USB disk, USB CD/DVD-RW & Network
PTZ Control
Built-in RS485, support PELCO-P & PELCO-D
Alarm Mode
Motion Detection, Sensor triggered, video loss, HDD error, HDD full
Senor & Alarm I/OO
1 sensor inputs / 1 alarm output

36LED Security Camera Specifications:
Pickup Device
Super HAD CCD
Horizontal Resolution
600 TVL
Pixels
PAL:795(H)×596(V)
NTSC:811(H)×508(V)
TV SYSTEM
PAL/NTSC
LED
48 PCS
Lens
3.6mm
Sync System
Internal Syncronization
Usable Ⅲumination
0.000LUX/F1.2 (LED on)
S/N Ratio
≥48dB(AGC Off)
Gamma  Characterlstic
0.45
Video Output
1.0Vp-p 75Ω
Scanning System
PAL:625 lines 50 Field/sec

NTSC:525 lines 60 Field/sec
Electronic Shutter Time
Auto,PAL 1/50-100,000Sec
NTSC 1/60-1/100,000Sec
White Balanc
Auto
Power Supply
DC12V±10% 600 mA



48LED Indoor Audio Dome Camera Specifications:
Pickup Device
SHARP COLOR CCD
Horizontal Resolution
420 TVL
Pixels
PAL:500(H)×582(V)
NTSC:510(H)×492(V)
TV SYSTEM
PAL/NTSC
LED
48 PCS
Lens
3.6mm
Sync System
Internal Syncronization
Usable Ⅲumination
0.000LUX/F1.2 (LED on)
S/N Ratio
≥48dB(AGC Off)
Gamma  Characterlstic
0.45
Video Output
1.0Vp-p 75Ω
Scanning System
PAL:625 lines 50 Field/sec

NTSC:525 lines 60 Field/sec
Electronic Shutter Time
Auto,PAL 1/50-100,000Sec
NTSC 1/60-1/100,000Sec
White Balanc
Auto
Power Supply
DC12V±10% 600 mA

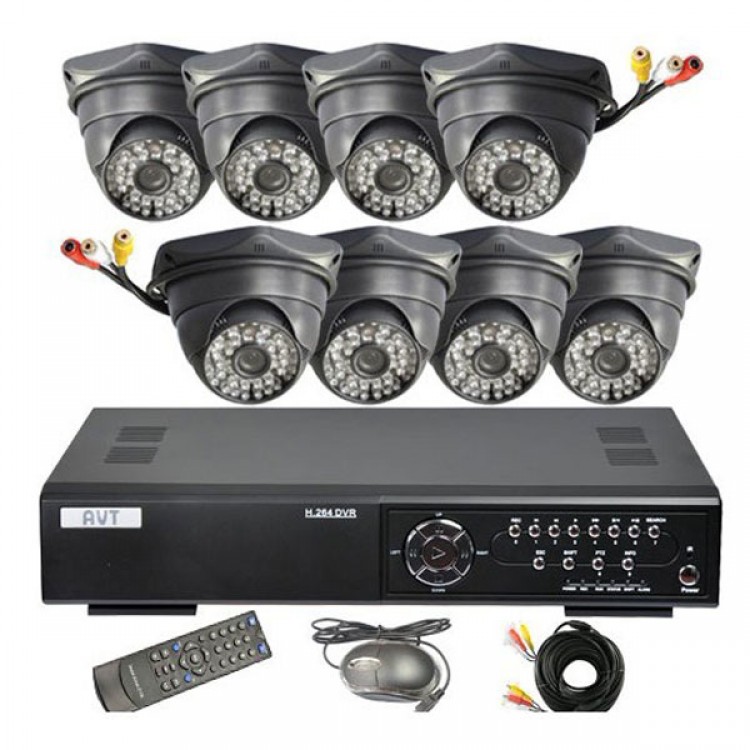

Package Includes:
- 1 x 8 Channel H.264 Network Stand-alone Digital Video Rcorder
- 1 x 1000GB HDD
- 1 x Power Adaptor for Stand-alone DVR
- 1 x Power Cord for Stand-alone DVR
- 1 x Remote Controller for Stand-alone DVR
- 1 x Mouse for Stand-alone DVR
- 1 x CABLE connect Stand-alone DVR to TV
- 1 x CD SOFTWARE
- 1 x User manual (English)
- 8 x 48LED 600TVL Color CCD Day&Night Indoor Audio Dome Cameras
- 4 x 10m AUDIO/Power/Video cables
- 4 x 20m Power/Video cables
- 2 x Power Suppliers for Camera (12V 5A)
