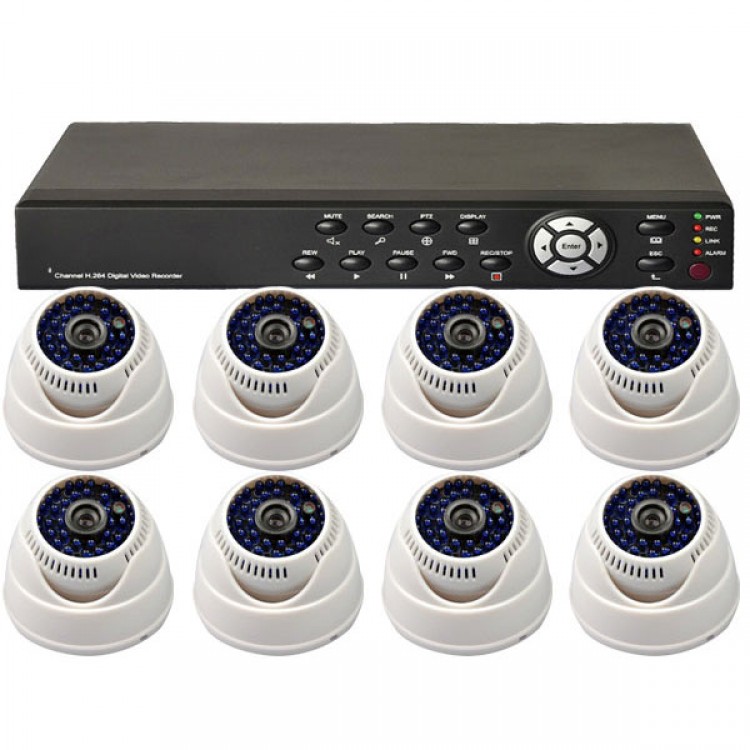

8 Audio Video CCTV Color Camera 48IR 600TVL + 8CH Network DVR System 1000GB HDD
  • 8 Audio Video CCTV Color Camera 48IR 600TVL + 8CH Network DVR System 1000GB HDD

  • SKU:17488
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 58
  • Price:$581.97
  • Price in reward points: 5820
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $570.33 $558.69 $541.23 $517.95 Contact US

8 Audio Video CCTV Color Camera 48IR 600TVL + 8CH Network DVR System 1000GB HDD

Product Overview

The kit includes a 8CH H.264 standalone DVR,8 48LED SONY CCD 600TVL security Armor cameras ,FREE 1000GB HDD ,FREE AUDIO/VIDEO/POWER cable , FREE CAMERA /DVR power supply, quickly and easily install.

This DVR with windows style OSD interface will help you to operate the DVR easier,fully integrated, real time, and hardware based standalone digital video recorder. With PTZ camera control, network access, motion detection, USB backup, this DVR is perfect for the home or small businesses. The DVR also features the most updated 3G mobile live preview technology.

This Camera is a day/night weatherproof security camera ,with 66ft night vision.Uses us free for you cable, connects dvr to camera, Create your own security system

Real-time surveillance
· analog interface and VGA interface (VGA interface is equipped selectively)
· surveillance function through monitor or display
· non-working hard disk dormancy processing which is convenient to radiate heat, reduce power and extend the life-span
· special storage format which insures the data safety
· real-time compression by individual hard disk which insures the audio and video signal stable synchronization
· through SATA interface and USB interface such as USB equipment, removable hard disk and so on
· through net download the files in the hard disk
· individual real-time video recording as well as searching, playback, network surveillance, recording check,downloading and so on
· multi-channel playback mode
· zoom at arbitrary region
Net operating
· through net tele-surveillance in the real time
· remote control PTZ
· remote check the recording and real-time playback
Alarm linkage
· only one channel relay alarm output which is convenient for the alarm linkage and light control at the spot
· protecting circuits at the alarm input and output interface which protects the main machine from damage
Communication interface
· RS485 interface which fulfills the alarm input and PTZ control
· standard ethernet network interface which fulfills the telecommuting function
Intelligent operating
· mouse action function
· fast copy and paste operating for the same setting

DVR Features:

* 1. Adopts the standard Main profile H.264 compression technology, supports 8ch CIF recording, Network transmission, and playback simultaneously
* 2. Support dual-stream transmission for all channels
* 3. Support Multiplex operation: live, record, playback, backup, network transmission, mobile phone surveillance
* 4. Support backup with USB Flash Disk, Movable hard disk, USB writer, Network
* 5. Support 1channel BNC output, 1channel. VGA output
* 6. Support Email alarm
* 7. Mobile phone surveillance (Win CE/Symbian/iPhone/Blackberry)
* 8. Support PTZ Control
* 9. Support Multi-language OSD
* 10. Supports mouse, remote controller operating

* Embedded Linux OS
* H.264 baseline Hardware Compression
* Support SATA HD up to 1TB
* Video Input: Composite BNC×8
* Video Output: BNC×1(TV Monitor BNC Output); VGA×1(PC Monitor VGA Output 1280*1024))
* Audio Input: Composite RCA×8
* Audio Output: Composite RCA×1
* Resolution:

(b)Recording Frame Rate:

* Multiplex Operation: Live\display\Playback\Recording\Backup\Mobile phone Surveillance \Network simultaneously
* Recording Backup: USB、Moved Hard Disk、USB Writer、Network
* Recording Play:Special player
* Email Alarm: Send pieces to the designated email
* PTZ protocol: PELCO-D,PELCO-P
* HDD: Support 1 SATA HDD
* HDD Remain Time Hint: Support
* Network and Protocol: RJ-45 10/100M via Ethernet, Support TCP/IP、PPPOE、DHCP、DDNS
* IE Browser: Support
* Client Software: Support
* Dual Stream: Support(Main and secondary interchange)
* Multi-language: Support
* Mobile Phone Surveillance: Support Windows\ Symbian\ iPhone\Blackberry Operation System
* Mouse Interface: USB1.1
* Backup interface: USB2.0
* Remoter Controller: Support
* Size: 274*214*45mm(L*D*H)

DVR Specifications:


Model D17608-A
Compression standard H.264 baseline profile@L3.1
Video input Composite 1.0Vp-p/75Ω,BNC×8
Video output Composite 1.0Vp-p/75Ω,BNC×1; Super Video×1; VGA×1
Resolution Preview 720×576(PAL),720×480(NTSC)
Recording 720×576(PAL),720×480(NTSC)
Bit rate Preview/ recording
8ch 200fps(PAL), 240fps(NTSC)
audio input -8dB~22k,RCAx8(8ch)
Audio output -8dB~92dB,RCAx1
Audio decode ADPCM
Recording mode Manual recording, timing recording , motion detection recording and external alarm recording
Simplex/duplex/ triplex triplex(recording, playback , LAN transmission)
LAN RJ45(10M/100M self-adapting)
PTZ control Yes
communication RS485×1,USB2.0×1
USB USB mouse control
Hard disk drive 1x SATA(500GB or above)
Remote control unit Yes


Camera Specifications:

Technical specification
Image Sensor 1/3” Sony Super HAD CCD
Horizontal Resolution 600 TVL
Sensitivity (F1.2) 0.1 Lux (Color) 0.001 Lux (B/W)
Lens 3.6mm fixed
Effective Pixels (H x V) NTSC : 768(H) * 494(V)
PAL : 752(H) * 582(V)
Electronic Shutter Speed 1/50~1/100,000 Seconds
1/60~1/120,000 Seconds
Scanning System 2:1 Interlace
Synchronizing system INT/LL Selectable
Frequency Horizontal: 15.625KHz Vertical: 50.00Hz
Video Output 1.0Vp-p~75 Ohm
S/N Ratio >60dB (AGC Off)
Color On/Auto Selectable
Gain Control LOW / MIDDLE / HIGH / OFF
White Balance ATW / AWB / MANUAL (1800 K~10500 K)
Back Light Compensation BLC / HSBLC / AUTO
Privacy Function ON / OFF
Motion Detection ON / OFF
IP Rating IP66
IR Illumination Range 20 Meters
Operating Conditions Temperature: -10 C ~ +50 C,
Humidity: 30 ~ 90% Percent RH
Power Supply DC 12V

Package Includes
- 1 x 8 Channel H.264 Network Stand-alone Digital Video Rcorder
- 1 X 1000GB HDD
- 1 x Power Adaptor for Stand-alone DVR
- 1 x Power Cord for Stand-alone DVR
- 1 x Remote Controller for Stand-alone DVR
- 1 x Mouse for Stand-alone DVR
- 1 x CABLE connect Stand-alone DVR to TV
- 1 x User manual (English)
- 8 x SONY CCD 600TVL 48IR COLOR Audio Dome CAMERA
