|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$32.90||$32.23||$31.22||$29.88||Contact US|

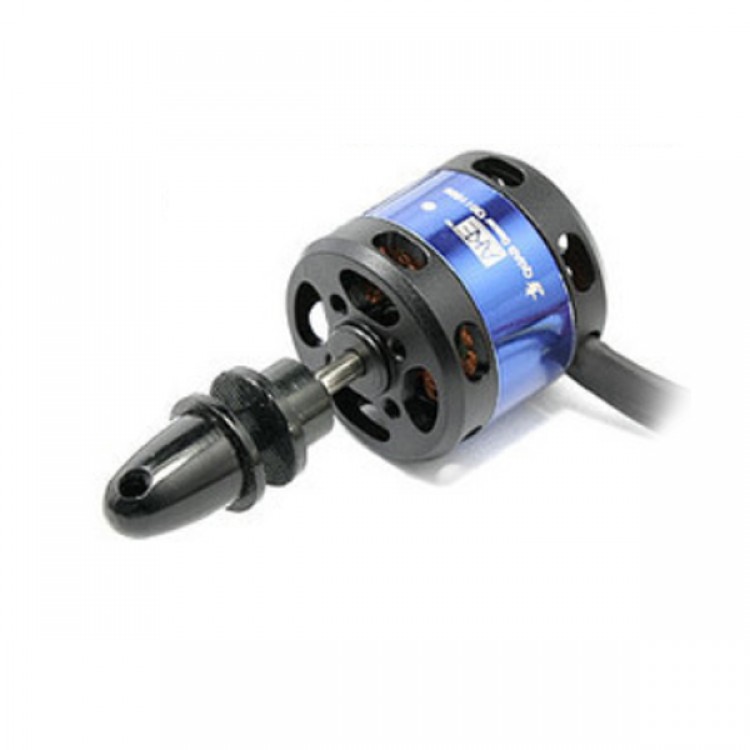

A.K.E QuadDancer QD1100B Outrunner Brushless Motor 1100KV W/Rotor Grip
- QUAD Dancer QD1100B brushless motor is A.K.E specially designed high-performance entry-level motor applied to aerial field of multi-rotor aircraft, light weight, only 44g for each one! It can greatly decrese flying weight of the aircraft so as to obtain longer flying time. Applying of 0.2mm high efficiency silicon steel and hyperthermia magnetite makes the motor has greater working efficiency. 8in or 10in propellers are ideal chooice; This motor has very strong compatibility, which could be used on F330-F550, X450-X650, etc. It also can be used for DIY frame, definitely a high Performance price ratio product.
- This motor is compatible with more than 99% brushless ESC in the market (highly suggest A.K.E highspeed brushless ESC)
- Perfectly compatiable with Xaircraft X650V,450P; DJI F330,F450,F550; SIGMA Q4, Y6 and other DIY multi-rotor aircrafts.
- Recommend A.K.E HighSPEED PWM 500Hz 10A and above highspeed brushless ESC.
- This motor is suitable for low-load aircraft(such as for GOPRO, cards etc.)
- Typical flying time: 15 minutes (SIGMA Q4-480W+AKE 2200mAh/11.1V/25C+8 inch propellers)
- Stator Diameter: 22mm
- Stator Thickness: 8mm
- Stator Arms: 12
- Magnet Poles: 14
- No. of Lipo cells: 3S
- Prop size: 8"-10"
- Motor KV: 1100RPM/V
- No-Load Current: 0.6A/12.6V
- MAX. Continuous Current: 16A
- MAX. Power：200W(3S)
- Outside Diameter: 28mm
- Body Length：27.5mm
- Overall Shaft Length：45.6mm
- Shaft Diameter：3.17mm
- Weight: 44g(no blade holder)
- Typical Thrust Value: 850g @ 12V (10 x 4.5 Prop @ 7100RPM) 15A
- Typical Working Current: 6A x 4 （X650V4/3S Li-Po 1.65kg/10x4.5）
