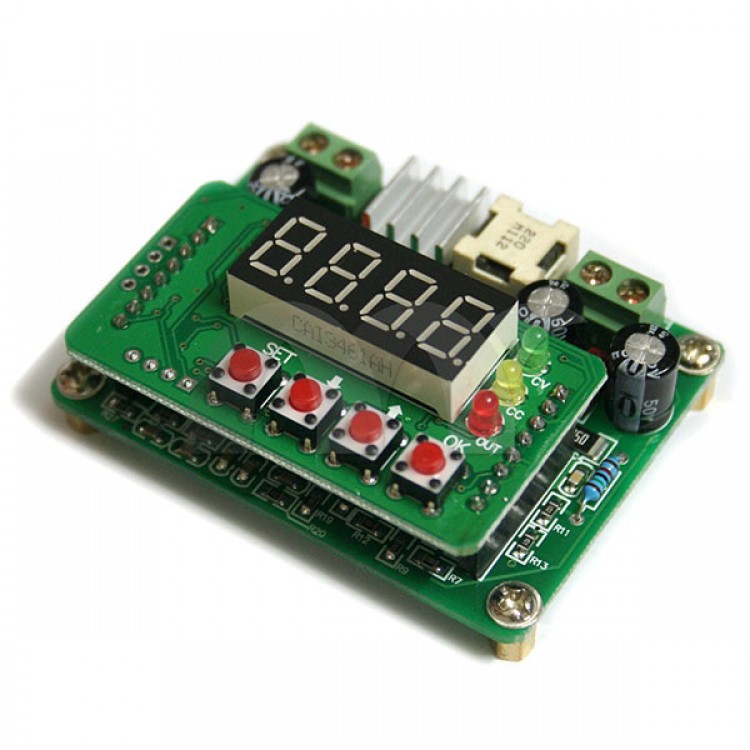

B3603 DC-DC Digital Control Step-down Module LM2596S 6V~40V to 0~36V 0-3A
  • B3603 DC-DC Digital Control Step-down Module LM2596S 6V~40V to 0~36V 0-3A
  • B3603 DC-DC Digital Control Step-down Module LM2596S 6V~40V to 0~36V 0-3A
  • B3603 DC-DC Digital Control Step-down Module LM2596S 6V~40V to 0~36V 0-3A
  • B3603 DC-DC Digital Control Step-down Module LM2596S 6V~40V to 0~36V 0-3A
  • B3603 DC-DC Digital Control Step-down Module LM2596S 6V~40V to 0~36V 0-3A
  • B3603 DC-DC Digital Control Step-down Module LM2596S 6V~40V to 0~36V 0-3A

  • SKU:26576
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 2
  • Price:$15.50
  • Price in reward points: 155
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.19 $14.88 $14.42 $13.80 Contact US

B3603 DC-DC Digital Control Step-down Module LM2596S 6V~40V to 0~36V 0-3A

Descriptions:
- B3603 DC-DC Digital Control Step-down Module is a digital control and digital display step-down module,it has small volume, high power, high efficiency, it working stability. It controlled by high speed micro controller, can adjust the output voltage and current accurately. It has 10 groups of storage location, can store and bring up the parameters at any time. It equipped with four of the eight period LED digital tube, which can real-time display voltage, current, power, capacity and other parameters. At the same time, the machine has automatically output after electrify, automatic take turns to show parameters and other functions, you can open or close it according to the needs.
This module has two kinds of usage: one is simple usage,another is fully functional usage.

Main features:
- Digital display, convenient and easy to use.
- Constant voltage and constant current state.
- OUT,CV and CC indicator light.
- Adjust output voltage and current value accurately.
- Automatic/manual switch voltage, current, power, capacity and other parameters display.
- It can be set whether automatically output or not after electrify.
- It can be set whether take turns to show voltage, current, power and capacity or not after output.
- 10 groups of storage location, free storage and bring up.
- One key to save voltage and current value

Specifications:
- Input voltage: 6V ~ 40V
- Output voltage: 0 ~ 36V
- Output current: 0 ~ 3A
- Voltage regulation/display resolution: 0.01 V
- Current regulation/display resolution: 0.001 A
- The minimum display resolution of power: 0.001 W
- The minimum display resolution of capacity: 0.001 AH
- Conversion efficiency: up to 92%
- The output ripple: ≦50 mV
- Working temperature: - 40℃~ + 85 ℃
- Working frequency:150 KHz
- Short circuit protection:Constant current
- Input reverse connect protection:No, if necessary please install diode
- Connection mode: Terminals

Package included:
-  1 x B3603 DC-DC Digital Control Step-down Module LM2596S
