Brand ProsKit MT-2017 Protective Function Analog Multimeter Test Meter Capacitance Measurement

Brand ProsKit MT-2017 Protective Function Analog Multimeter Test Meter Capacitance Measurement

Features:
- Complied with 2008 CE safety standard
- Double-sided glass epoxy PCB
- Mirrored Aluminum dial plate
- 20kΩ/V DC & 9,kΩ/V AC input sensitivity
- Overload and mis-used protection
- Adjustable back tilt device with hook-up design
- Robust protective holster alongside
- Resistance, Current & Voltage measurements
- 10 Amp DC Range, Transistor hFE Test
- Continuity Buzzer and Battery Test
- Zero-center meter (Null)

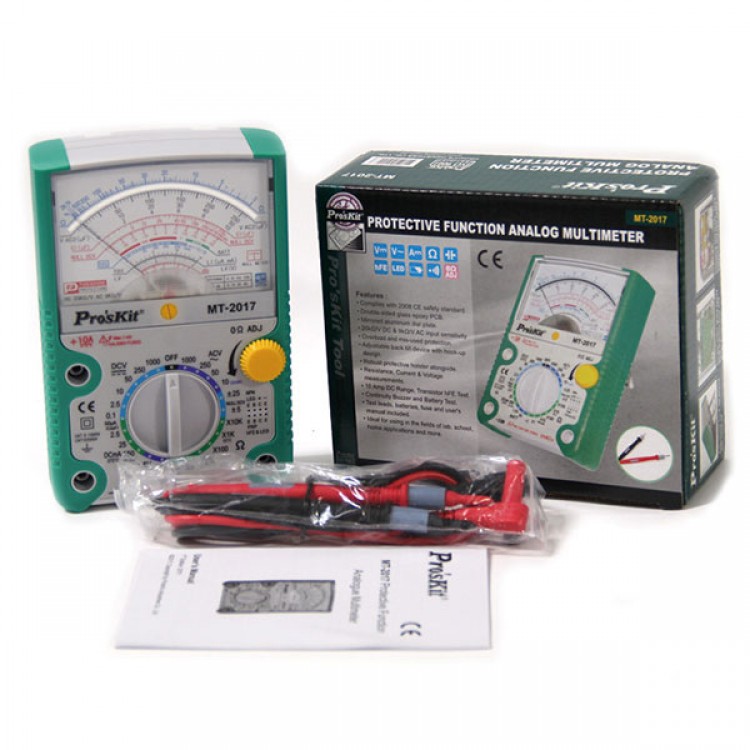

- Test leads, batteries, fuse and user’s manual included
- Ideal for using in the fields of lab, school,
- home applications and more

Specification:
- Front Panel Controls    Range selector switch with “OFF”position, 0Ω adjust knob
- Power    1.5V AA x 2pcs and 9V(NEDA1604) x 1pcs
- Movement and Indicator Protection    0.5A/250V & 10A/250V
- Dimensions    160(L) x 105(W) x 40(H) mm
- Weight    390g apporx.
- DCV             0-0.1-2.5-10-50-250-1000V
- Null DCV    DC±-5V, ±25V
- ACV    0-10-50-250-1000V
- DCA    0-0.05-2.5-25-250 mA, 10A
- Resistance        1 / 10 / 100 /1K / 10K?
- Capacitance    0.025-0.25-25uF(C2), 2000uF(C1)
- Battery Check    0 ~ 1.5V: GOOD - ? – BAD, 0 ~ 9V: GOOD - ? – BAD
- Transistor Check    hFE: 0-1000
- Decibel    -22 dB ~ + 62 dB (0dB=1mW at 600?)
- Continuity Check    Beeper sounding under 200 Ohm
