CEM DT-156 Professional Paint Coating Thickness Tester Meter Gauge Digital Kit

Tags: Coating Thickness Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$98.30
  • Price in reward points: 983 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $96.33 $94.37 $91.42 $87.49 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

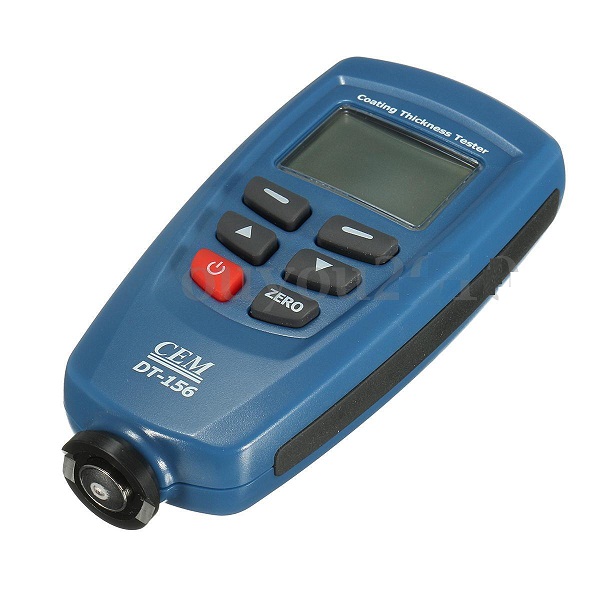

CEM DT-156 Professional Paint Coating Thickness Tester Meter Gauge Digital Kit


Features:
-DT-156 coating thickness gauge probe can work under the principle of electromagnetic induction and eddy current. Automatic mode (AUTO), the two principles of visual measurement of the matrix automatically converted, or through the menu for automatic mode and non-automatic mode conversion.
-Measurable coating: any magnetic material surface of the non-magnetic coating thickness; any non-magnetic metal surface insulation coating thickness.

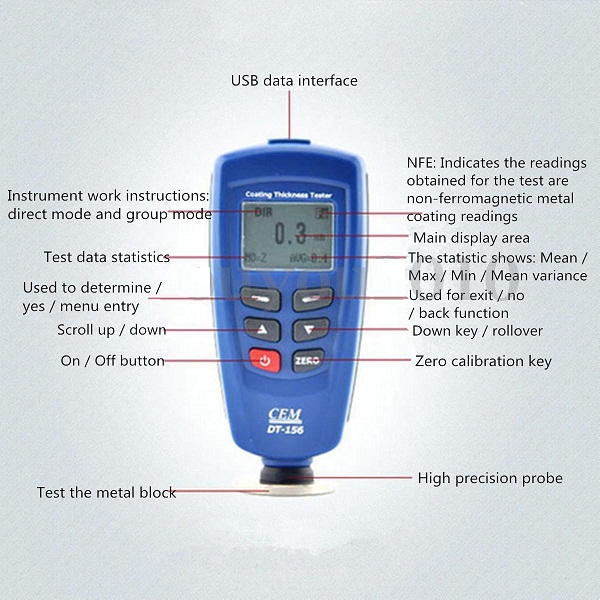

-Multi-mode operation, direct mode operation and group operation mode.
-Statistics can be displayed and displayed: Mean / Max / Min / Standard deviation / Statistics.
-Can maintain more data, can save 320 measurement data.

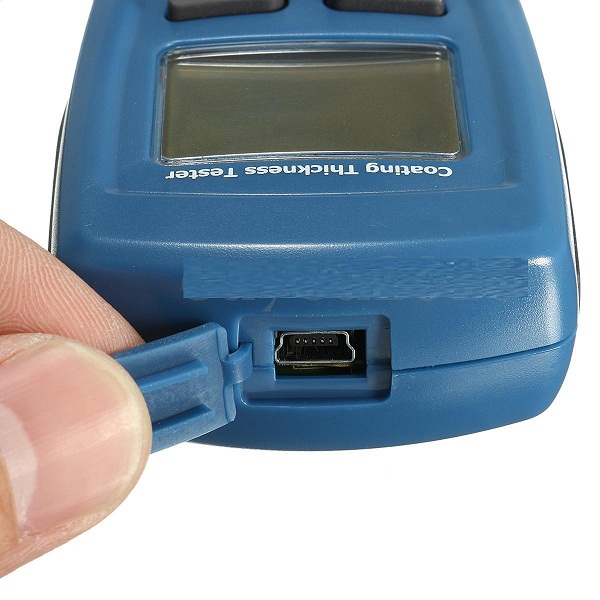

-USB transfer of data to the computer analysis of statistics, very convenient for one or two points calibration.
-The instrument can be applied to non-destructive, rapid and high-precision coating thickness measurement areas. It is the paint, anti-corrosion, electroplating, automotive industry, shipbuilding, aircraft manufacturing and other related industries ideal auxiliary manufacturing tool.
-It can work stably in the lab, on-site and off-site. At the same time, it can work in the electromagnetic induction and eddy current two principles, the completion of different coating thickness measurement tasks.

Specifications:
- Product name:Thickness Tester
- Color:Blue
- Size of box:Approx. 26x18x7cm/10.23"x7.08"x2.75"
- Size of Thickness Tester:Approx.11.3x5x2.3cm/4.44"x1.96"x0.9"
- Measuring range:0~1250um
- Measurement accuracy: 0.1um
- Error:0~850um (± 3% + 1um)
- Battery:2x AAA Batteries(Include)
- Weight:845g

Sensing probe

Ferromagnetism

Non-ferromagnetic

Working principle

Magnetic induction

Vortex

Measuring range

 0 ~ 1250um

0 ~ 1250um

Accuracy

± 3% + 1um

± 3% + 1.5um

Resolution

0.1um

0.1um

Minimum radius of curvature

1.5mm

3mm

Minimum measuring area (diameter)

7mm

5mm

Can measure the minimum basic area

0.5mm

0.3mm

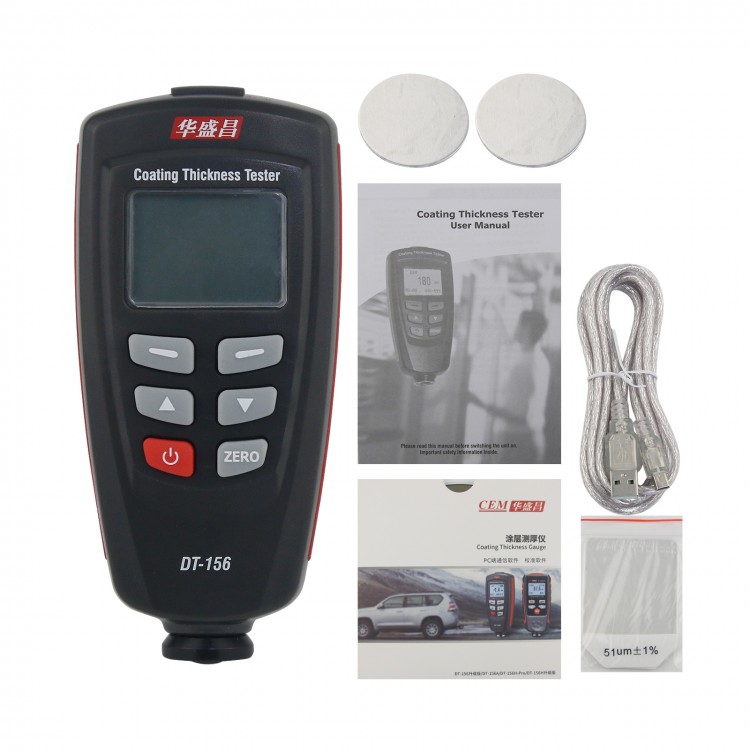

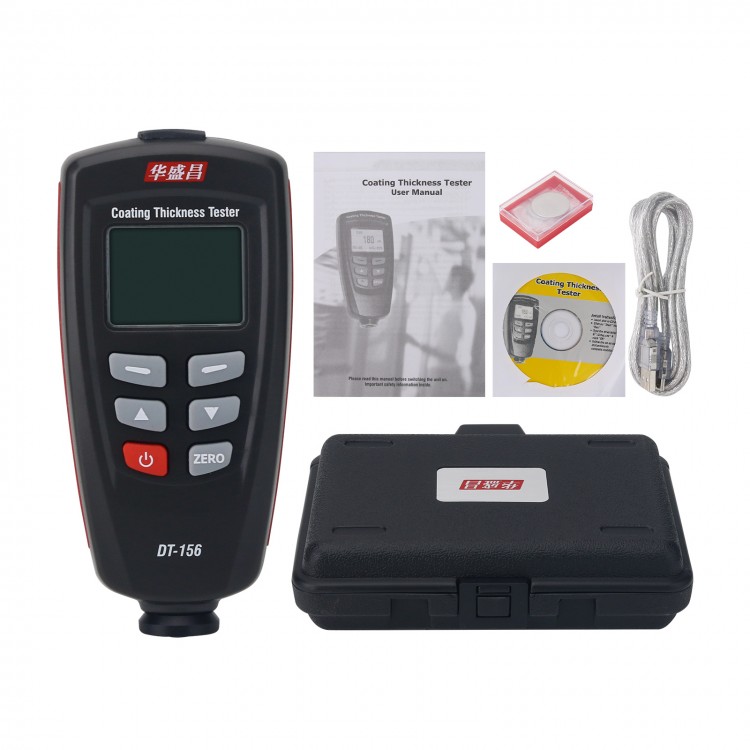

Package Include:
- 1 x CEM DT-156 Thickness Tester
- 1 x Packing box
- 1 x Operating instructions

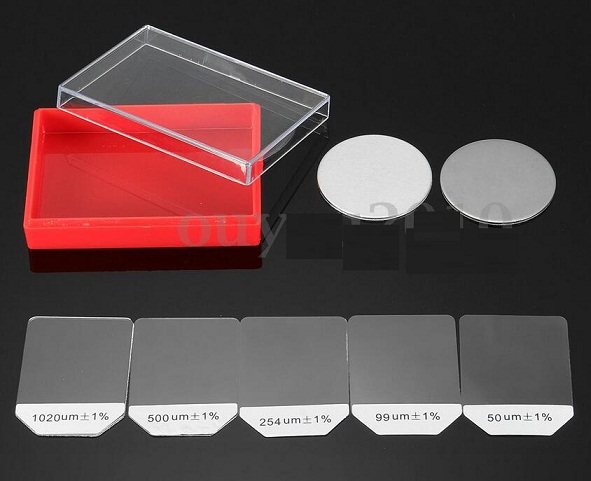

- 1 x Steel block
- 1 x Aluminum block
- 5 x Standard sheets
- 1 x USB connection cable
- 1 x Software CD
- 2 x AAA Batteries
