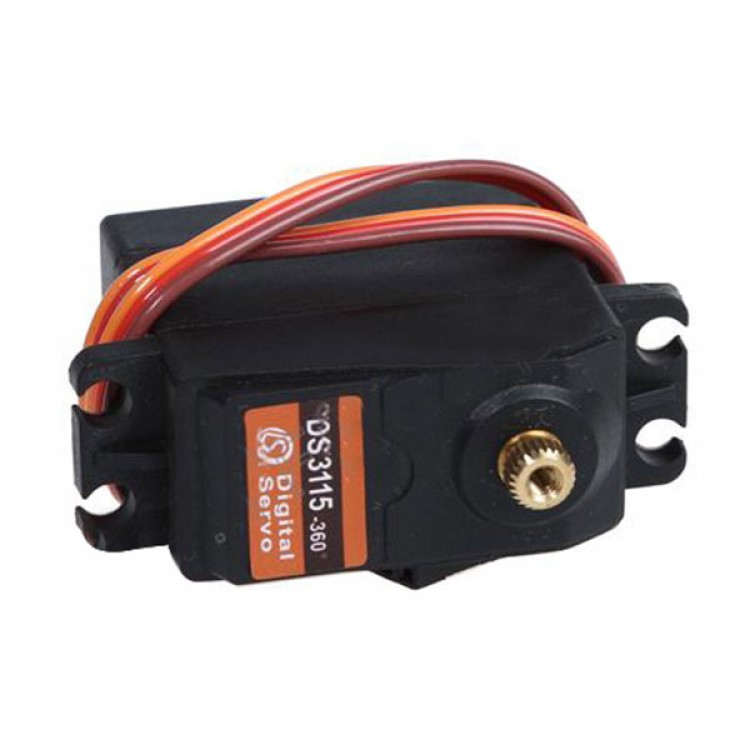

DS3115 15KG Metal Gear Large Torque Digital Servo for Car Boat Model Robot
Description:
- DS3115 servo is 180 degree digital servo, large torque, suitable for car boat model or robot
- Interface defintion: yellow-signal, red-power positive pole, brown--power negative pole
Electrical Parameters:
Power: 6V
- Operating speed (at no load): 0.16 sec/ 60degree
- Running current (at no load): 80mA
- Stall torque (at locked): 13.5kg/cm
- Stall current (at locked): 4mA
Power: 7V
- Operating speed (at no load): 0.14 sec/ 60degree
- Running current (at no load): 100mA
- Stall torque (at locked): 15kg/cm
- Stall current (at locked): 5mA
Mechanical parameters:
- Limiting angle: 180 degree
- Weight: 60g
- Wire specs: 28#PVC
- Wire length: 320mm
Control parameters:
- Working voltage: 5-7.4V
- Working frequency: 50-330HZ
- Operating angle: 180 degree
- Rotating direction: CCW
- Control system: pluse width
