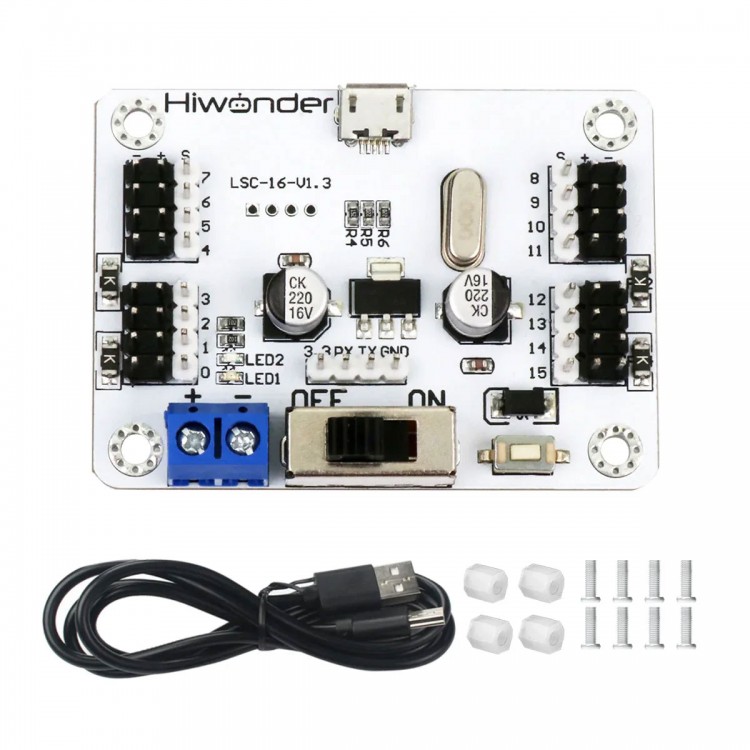

Hiwonder LSC-16 16CH Servo Controller Board Programmable Robot & Robotic Arm Control Board

Hiwonder LSC-16 16CH Servo Controller Board Programmable Robot & Robotic Arm Control Board

Description:
The 16-channel servo controller is equipped with a high-performance STM32 microcontroller featuring a Cortex-M3 core for ARM. It not only controls the movement of multiple servos but also supports adjustable servo speed for smooth and precise motion. With a built-in 16M large-capacity memory, the controller can store up to 230 action groups, and each group can contain up to 510 actions.

The 16-channel servo controller features over-current protection, effectively preventing the servos from burning out due to a locked rotor. It also comes with PC software that supports online graphical debugging, making programming and control easier and more intuitive.

This controller supports simultaneous control of up to 16 servos, making it ideal for robotic arm development, and DIY robot projects.

Features:
High Precision & Adjustable Speed Servo Controller
* Equipped with a high-performance STM32 microcontroller with Cortex-M3 core for precise control.
* Supports 16-channel servo control with adjustable speed and accurate positioning.
* Built-in signal isolation protection ensures the servo output is isolated from the CPU, preventing damage from current surges.

16-Channel Intelligent Servo Controller
* Supports serial (TTL-level) communication between the controller and other microcontrollers.
* Enables intelligent robotic applications such as voice control, motion sensing, tracking, light chasing, and obstacle avoidance.

Safe & Reliable with Over-current Protection
* Simple wiring design and built-in power switch for convenient operation.
* 8-channel servo ports include over-current protection, effectively preventing servo burnout caused by stalling.

Large-Capacity Memory
* 16M memory capacity for extensive action storage.
* Supports up to 230 action groups, each containing up to 510 actions.

Dual Control Modes
* Supports online debugging, no driver installation required.
* Two offline running modes: one-time offline execution or endless loop offline operation.

Specifications:

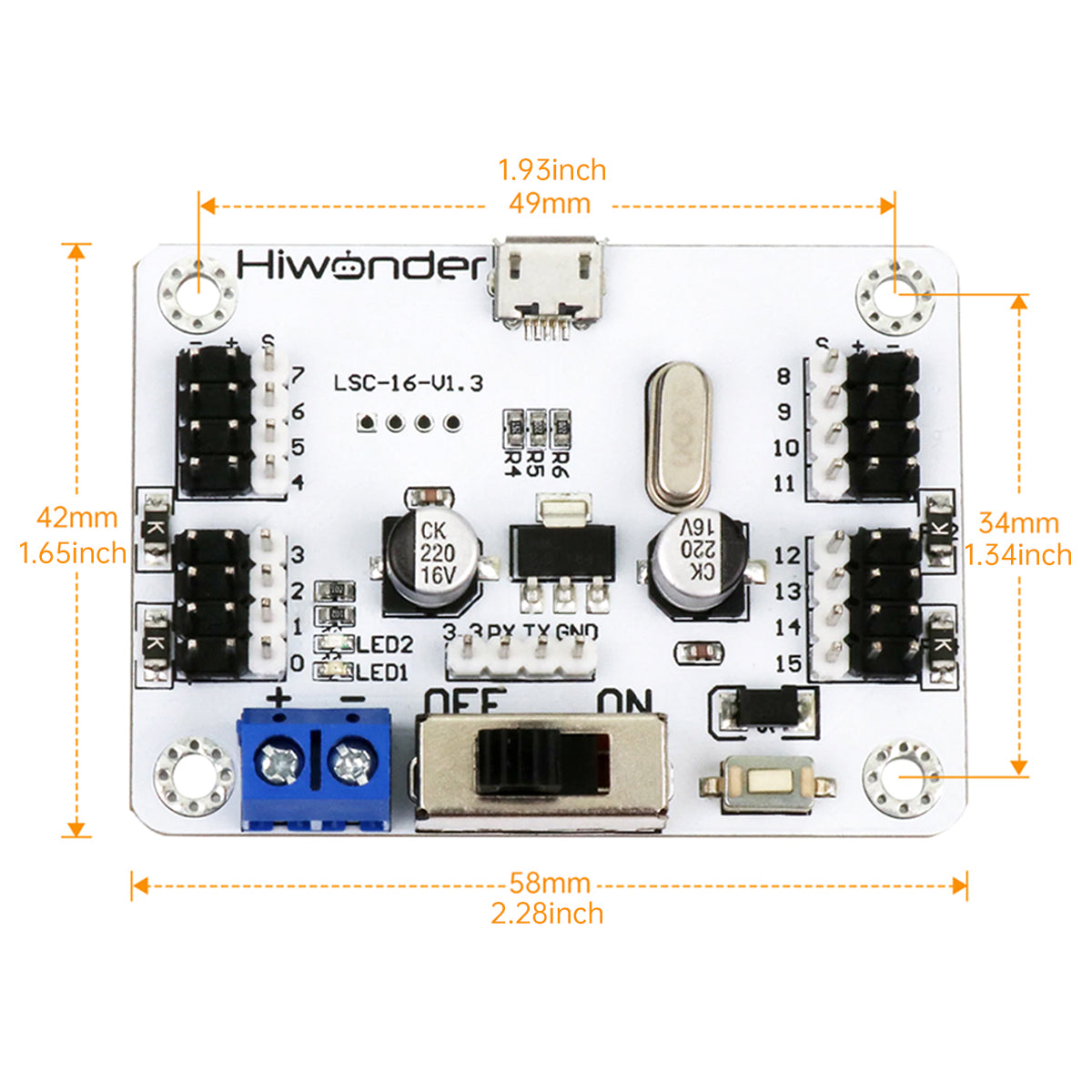

* Product Dimension: 58mm × 42mm (2.28in × 1.65in)
* Product Weight: 18g
* Maximum Controlling Quantity: 16 servos
* Secondary Development: Support
* Over-current Protection: Support
* Mounting Hole Spacing: 49mm × 34mm (1.93in × 1.34in)
* USB Control: Support
* Storage: 16M flash memory
* Communication Baud Rate: 9600bps
* Signal Isolation Protection: Support

Packing List:
* 1 × Set of Servo Controller

Packaging Details:
* Weight: 0.15kg

Note:
* Battery and servos are not included.

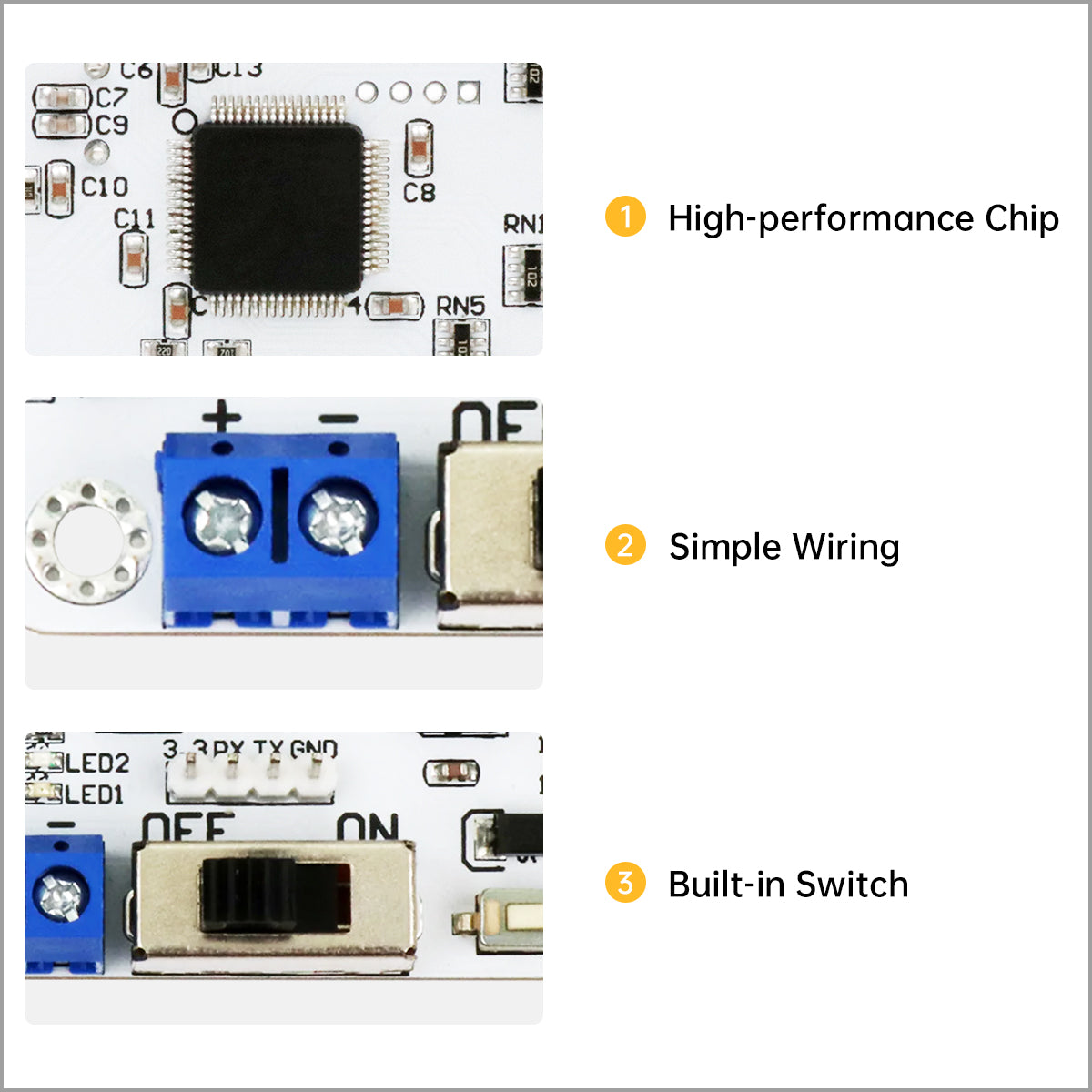

1. High-Performance Chip: Equipped with a high-performance STM32 microcontroller featuring a Cortex-M3 core for ARM, enabling precise motion control and adjustable speed.
2. Simple Wiring: Built-in positive and negative power interfaces make wiring straightforward and operation easy.
3. Built-in Power Switch: Integrated switch allows convenient operation and reduces wiring complexity.

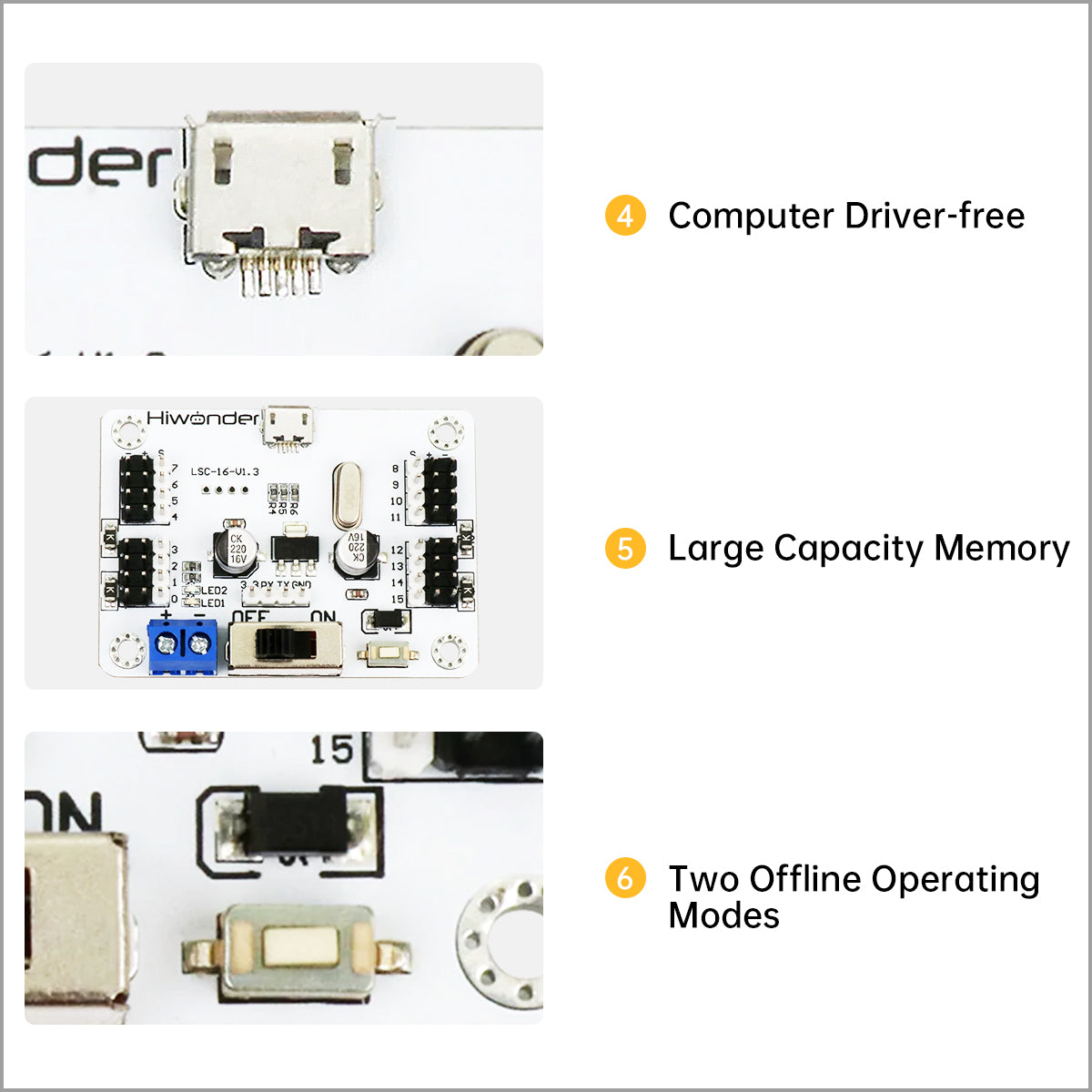

4. Computer Driver-Free: It supports online debugging without the need to install any driver, making setup quick and easy.
5. Large-Capacity Memory: Built-in 16M memory can store up to 230 action groups, with each group containing up to 510 actions for complex motion sequences.
6. Two Offline Operating Modes: It can run offline either once or in continuous cycles for flexible robotic operation.

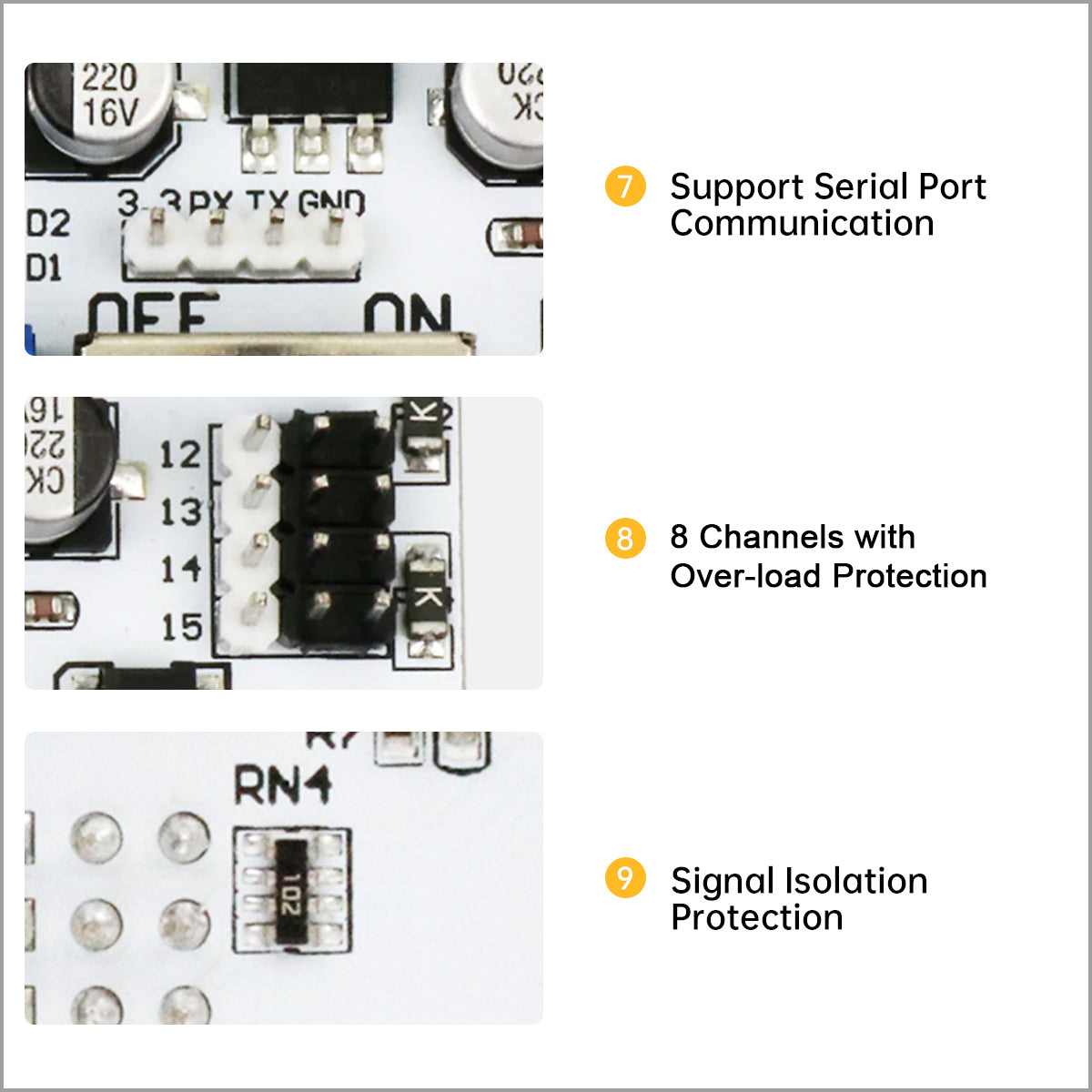

7. Supports Serial Port Communication: It can connect to other microcontrollers, allowing them to send commands to the controller. Communication protocols for 51, STM32, and Ar-duino microcontrollers are provided.
8. Eight-Channel Overload Protection: Equipped with eight-way overload protection to significantly reduce the risk of servo stalling or burnout.
9. Signal Isolation Protection: Servo output is electrically isolated from the CPU to prevent damage from power surges.



PC Software Interface:

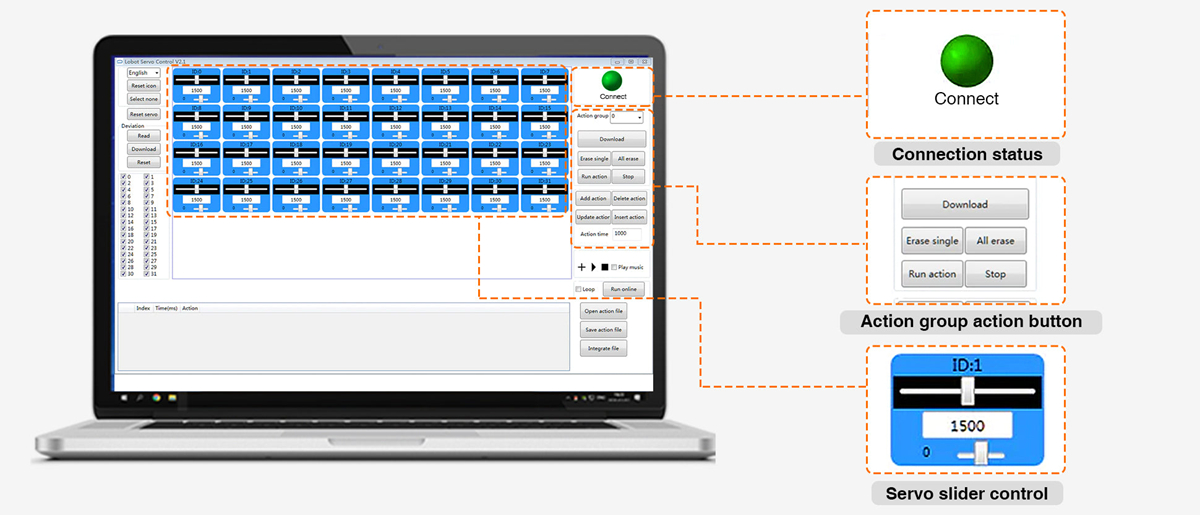

* We provide PC software that supports online debugging without installing any drivers. It features automatic connection and multiple language options for user convenience.
* You can debug the controller through the software without any coding. Simply drag the sliders to control servo rotation, allowing quick and easy testing to ensure your project runs successfully.

How to Debug:

* The 16-channel servos can be controlled individually.
* Provide the 16-channel servo debugging board with a voltage of 5–8.4V.

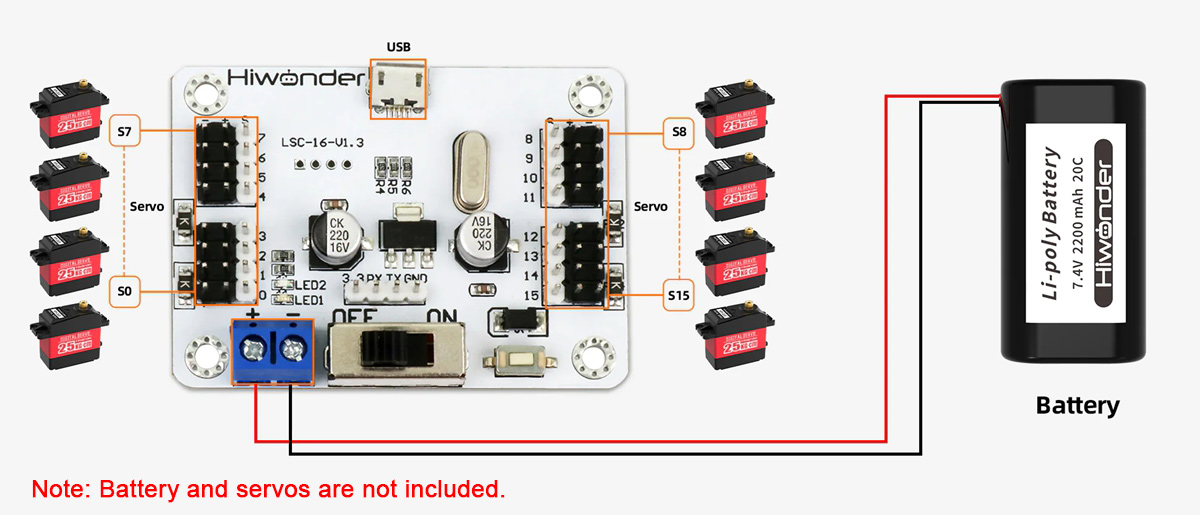

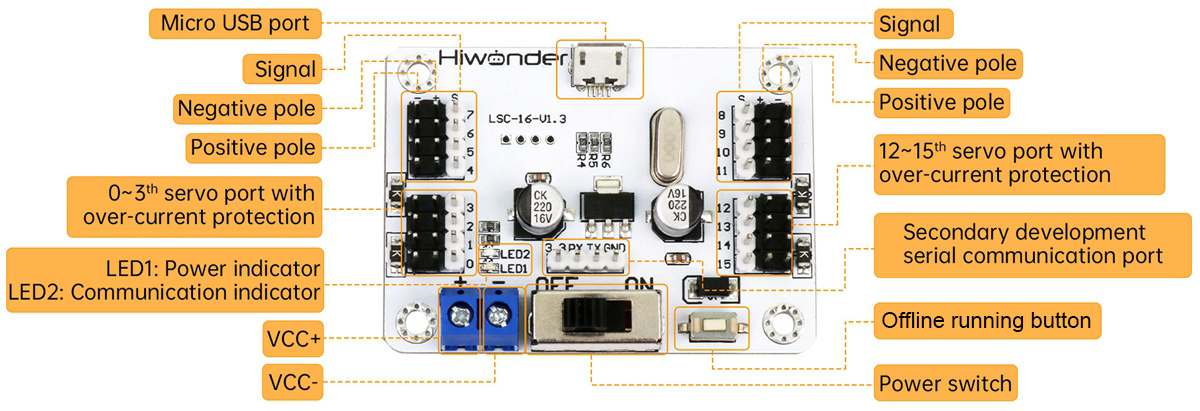

* Connect the servos to the S0–S15 interfaces. The development board can send commands through the serial port or I²C to control the corresponding servo.

Supports Development Board Expansion:

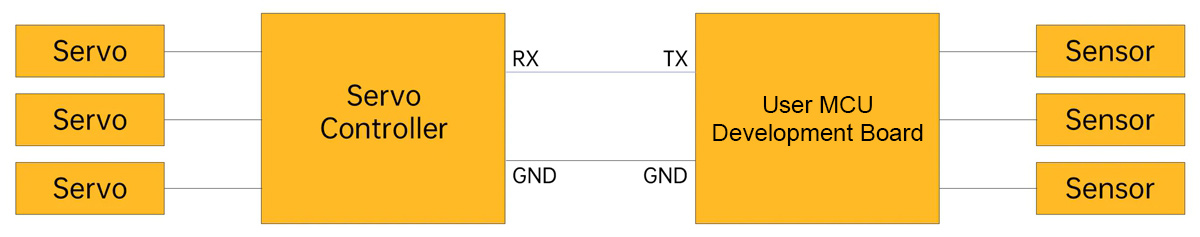

* The servo controller has a reserved serial communication interface, allowing TTL serial communication with other development boards. The development board can send instructions to the controller, enabling your robot to achieve intelligent control.

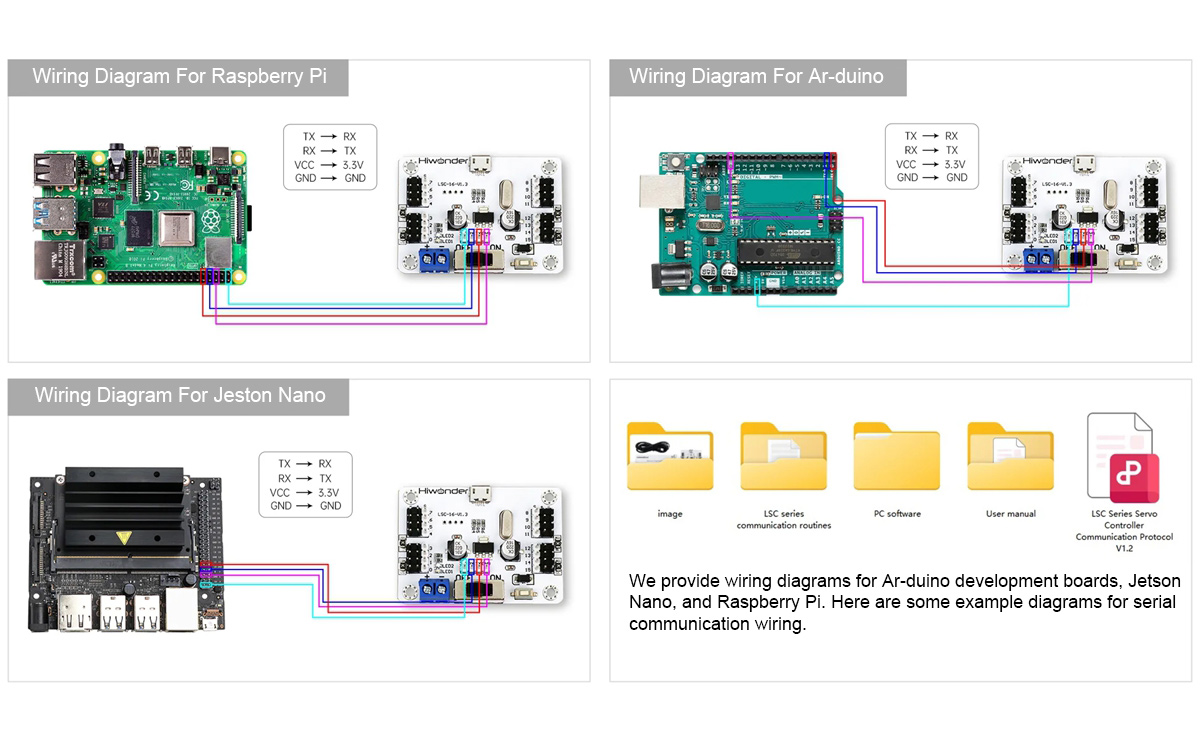

* We provide three communication routines for Ar-duino, Raspberry Pi, and Jetson Nano as references to facilitate your learning.
