|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$100.28||$98.24||$95.17||$91.07||Contact US|

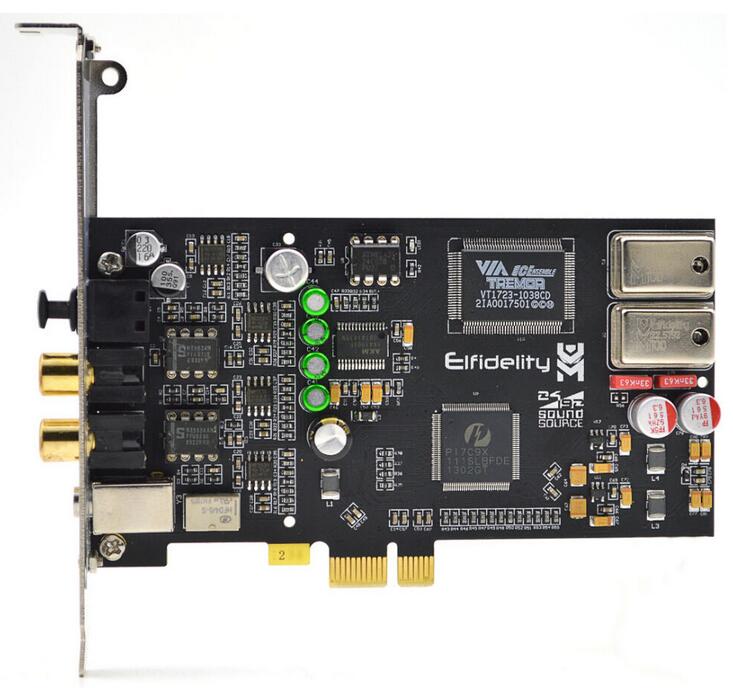

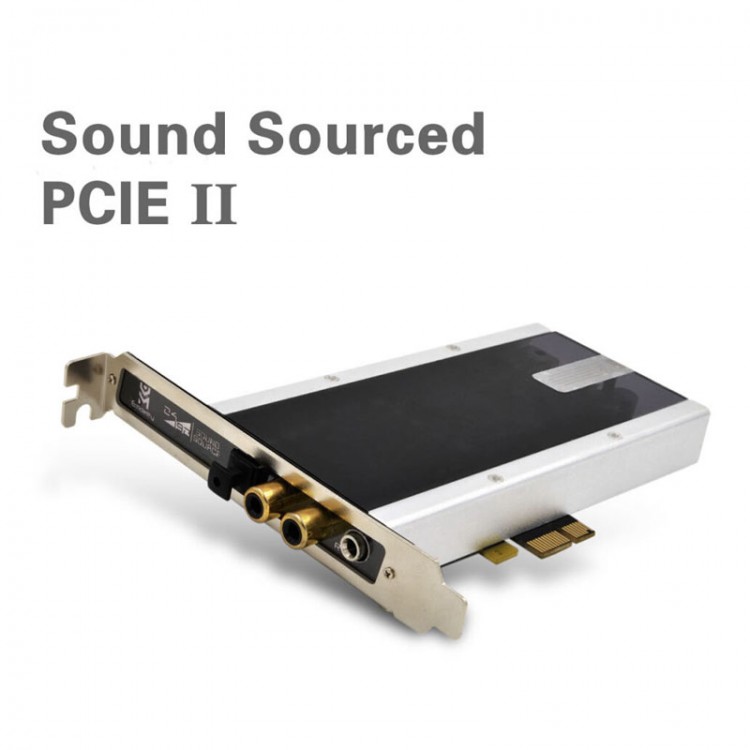

Elfidelity Sound Sourced PCI-E Internal Sound Cards Hifi AK4396 DAC 2.0 Channelx
- This product belong to 2.0 channel hifi built-in sound card.Main Feature with high level audio output quality,this PCI-E sound card with low price luxury component and delicate design.Can connect speakers, headphones at the same time, and have optical output, support the decoder. choose the VIA main control,with high quality BP coupling capacitance and active TCXO,you can upgrade the opamp to 5534 or change the firmware rom for DIY.

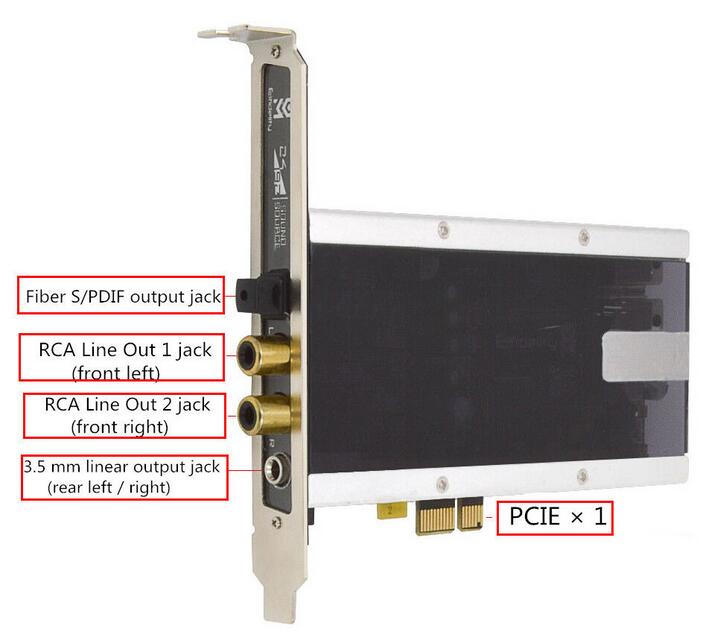

- Connect port:PCI-E, Stereo L/R RCA, Optical fiber S/PDIF output
- Installation:Direct insect into PCI-E Slot on the motherboard.
- Purpose:Connect speakers and headphones at the same time, and have optical output, support the decoder,high quality audio output level
- Integrates a high-quality digital to analog conversion,Analog amplification components.
- Simultaneously with up to 122dB SNR, 0.001% harmonic distortion performance.
- Support M-ATX architecture small chassis
- Using VIA's Envy24DT master, dual external precision clock without converting sampled accurately reproduce the sound, providing Hi-end level of digital signal protection

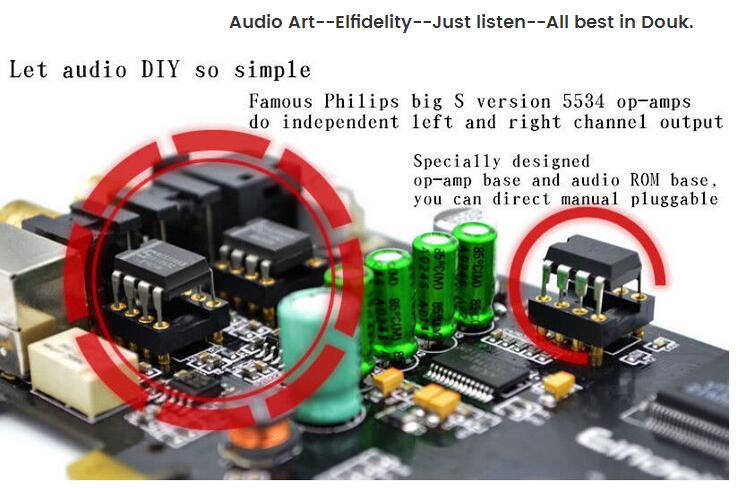

- Four of Texas Instruments (TI) high-quality op-amp 5534A do I / V
- Elfidelity ® patented HAPS ± 12V-Ⅱ power technology, the second generation of the balance of positive and negative output voltage DC-DC solution，aim at revolution LE needed for Split amplification. do ECE dynamic compensation.
- Support for the latest Windows 10 operating system

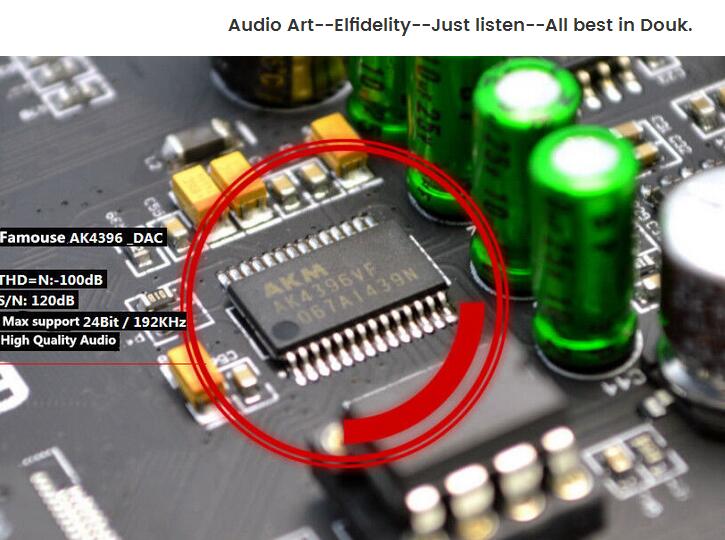

- AK4396_DAC chip

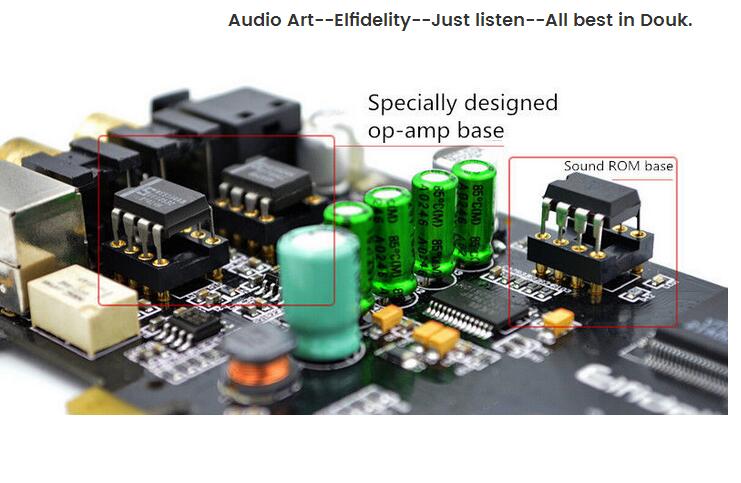

- Six of op-amp (Output op-amp can change),4-layer PCB audio board,BP's top hifi capacitance,Active TCXO
Note:This model base on VIA buit-in sound card main control Envy24DT,For VIA Driver right limit,when loading driver on Win8 system pleases close the digital signatur.
- 1 x Sound Sourced PCI-E
