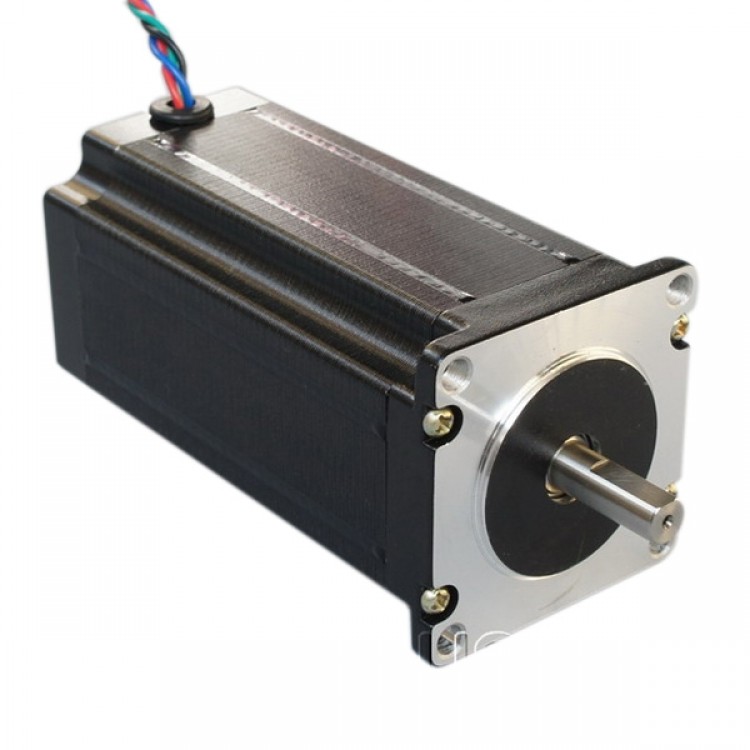

Extended 57x 112 Two Phases Stepper Motor 4A Rated Current 2.8N/m High Speed Provided High Quality and Good Performance
Description:
- The motor is a 4-line high-speed motor of high-quality, the raw material is better than the general motor, high speed well performance, small noise and vibration.
- The limit speed can reach 3000rpm, 1200rmp can enable engraving machine or CNC milling motion to work stably.
- Base: 57 x 57,
- Length: 115 (shaft not calculated)
- Phase resistance: 0.7R
- Rated current: 4A.
- Maximum torque: 2.8N/m
- Shaft diameter: 8mm Length: 20
- Weight: 1.7KG
- Mounting hole: 5.2 x 4
- Center distance: 47.2 x 47.2.
- The positioning flange front cover: 38 x 1.5 height
