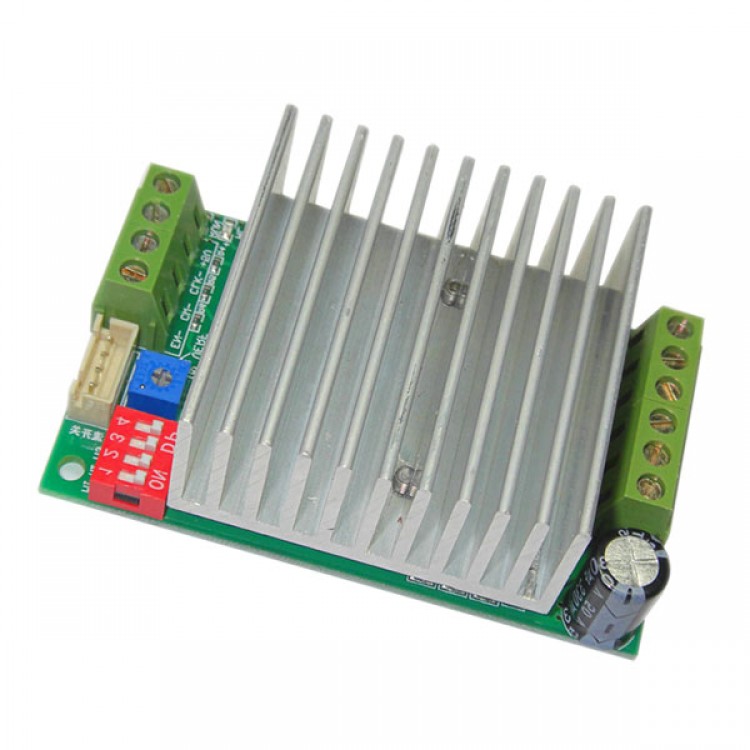

TELESKY CNC Single Axis TB6600 4.5A Two Phase Hybrid Stepper Motor Driver Controller Board Factory outlets
Description:
This is a high-quality, high-power, cost-effective drive!
High current 4.5A, high voltage 45V, output short circuit protection, superior performance!
1) Working voltage DC 10V-45V. Recommend the use of switching power supply DC32V.
2) the use of high-speed optical coupling 6N137, ensuring high speed without losing step.
3) the use of Toshiba's new high-current, high-voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short circuit protection and increased compared to TB6560.
4) The maximum rated output reaches: ± 4.5A.
5) for less than 4.2A 42,57,86 two-phase / four-phase / four-wire / six wire stepper motor.
6) Automatic semi-flow feature.
7) Subdivision: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 microstep
8) Volume: Width Length 82 * 50 * high 35 (MM)
Product Features:
1, the output current is infinitely adjustable to meet your demand for a variety of applications.
2, automatic semi-flow feature. And a semi-automatic flow switch, easy to use.
3, using high-speed optical coupling 6N137 ensure high speed without losing step.
4, printed on the back panel has broken setup instructions.
5, used to increase the heat sink, good heat dissipation.
6, output short-circuit protection, no need to worry
7, using common anode input mode, there are two input terminals, wiring more convenient.
