5 Axis CNC Kit Nema 23 Stepper Motor 57+DM542 Stepper Motor Driver+MACH3 USB CNC 5 Axis Control Card

5 Axis CNC Kit Nema 23 Stepper Motor 57+DM542 Stepper Motor Driver+MACH3 USB CNC 5 Axis Control Card

Package Included:
- 3 x Nema 23 Stepper Motors 57
- 3 x DM542 Stepper Motor Drivers
- 1 x MACH3 USB CNC 5 Axis 100KHz Smooth Stepper Motion Control Card
- 1 x Handwheel
- 1 x Power
- 1 x USB cable
- 1 x CD

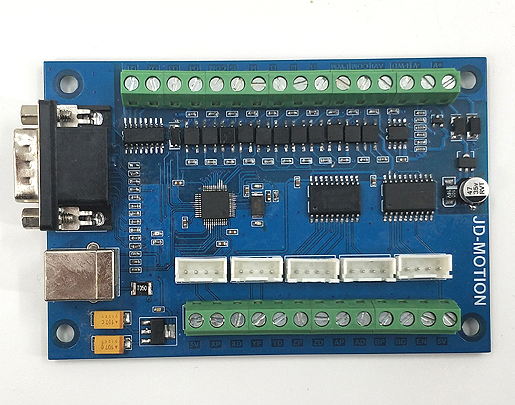

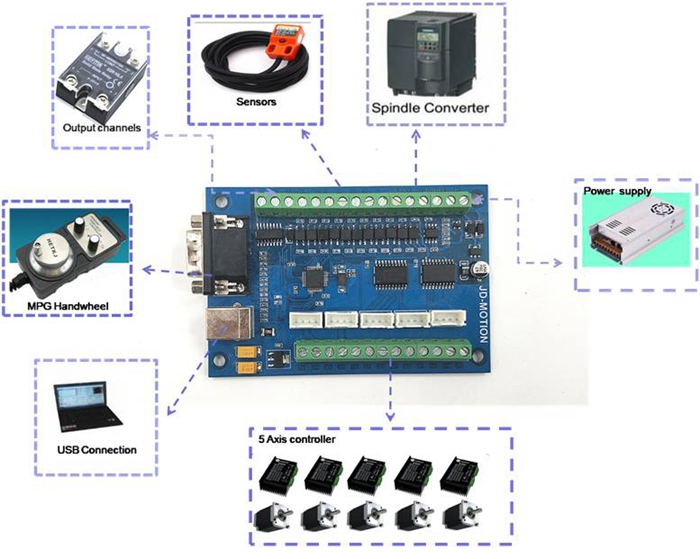

Motor Controller:
Upgrade Factory outlets MACH3 USB CNC 5 Axis 100KHz Smooth Stepper Motion Control card breakout board for CNC Engraving 12-24V
1. Support for Windows XP, Windows 7 32/64bit, Windows8, Windows10 operating system;
2. Applicable to all versions of mach3 software;
3. Support for CNC controlled 5-Axis, can connect five stepper motor driver or servo driver;
4. The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to the closed-loop driver of strict requirements on pulse；
5. Five opt coupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected;
6. Inverter control signal interface (opt coupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle's speed, start and stop;. Four universal output signal interfaces, the maximum output 500MA current, can drive relays, solenoid valves, used to control mist, pumps, cylinders and other equipments;
8. Support for external connect electronic hand wheel, use HDR15 interface to connect electronic hand wheel, used for manual control of machine tools;
9. Add the enable signal interface, can be used to control the driver enable signal;
10. The power of control card: voltage 12-24VDC, current more than 500MA.

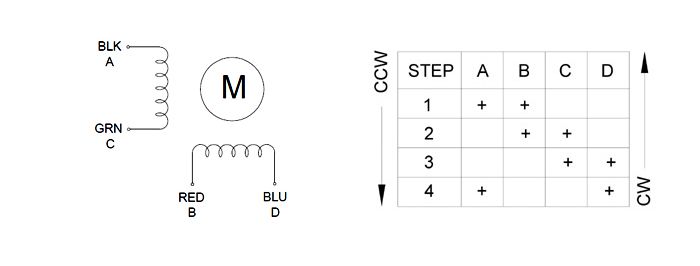

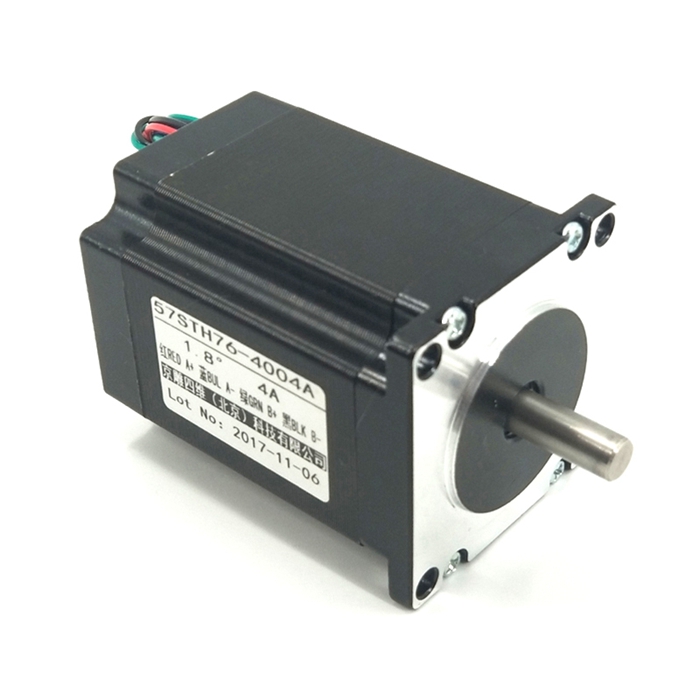

Nema 23 Stepper Motor 57:
- Step Angle (degrees): 1.8 deg.
- Holding Torque: 1.8Nm
- Phase: 2
- Current / Phase: 4

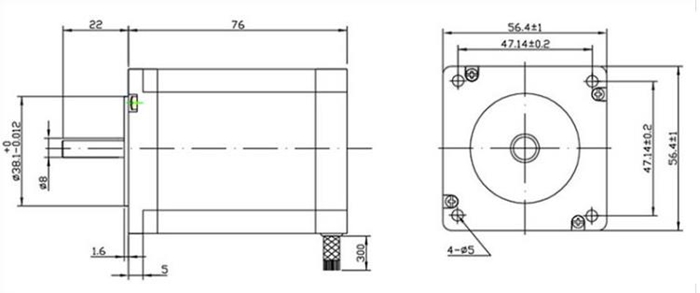

- Size: 57*57*76
- Step Angle (degrees): 1.8 deg.
- Holding Torque: 1.8Nm
- Phase: 2
- Current / Phase: 4
- Size: 57*57*76

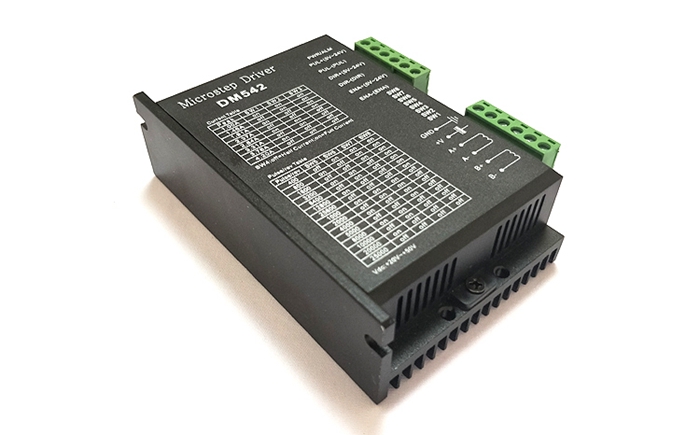

DM542 Stepper Motor Driver:
Feature:
- 20KHz chopping frequency
- Optical isolation signal input
- Output current DIP switch is adjustable
- Bipolar constant current chopping method
- High segmentation: 2, 4, 8, 16, 32, 64, 128, 256. 5,10, 25, 50, 125, 200

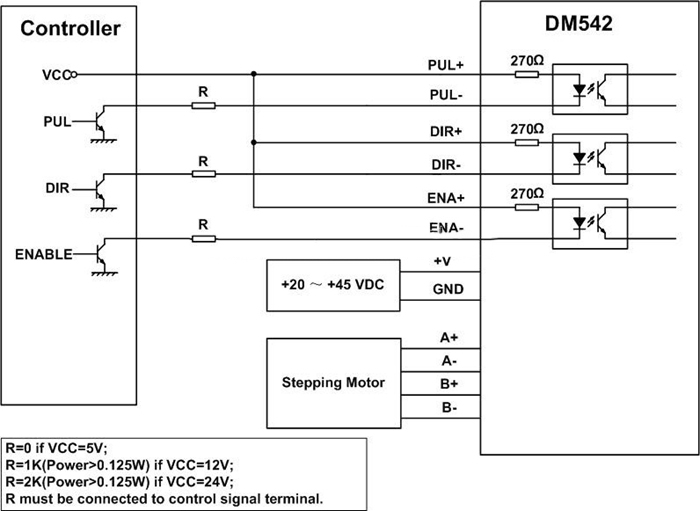

- TTL input signal compatible, while accepting differential signal input

Specifications:
- Power supply: DC 24-60 (V)
- Current maximum: 4.5A
- Output phase current: 1.5A-4.5A
- Logic input current: 10-20mA
- Operating temperature:-15°—+45°
- Size:11.7*8.5cm/4.61*3.35inch
