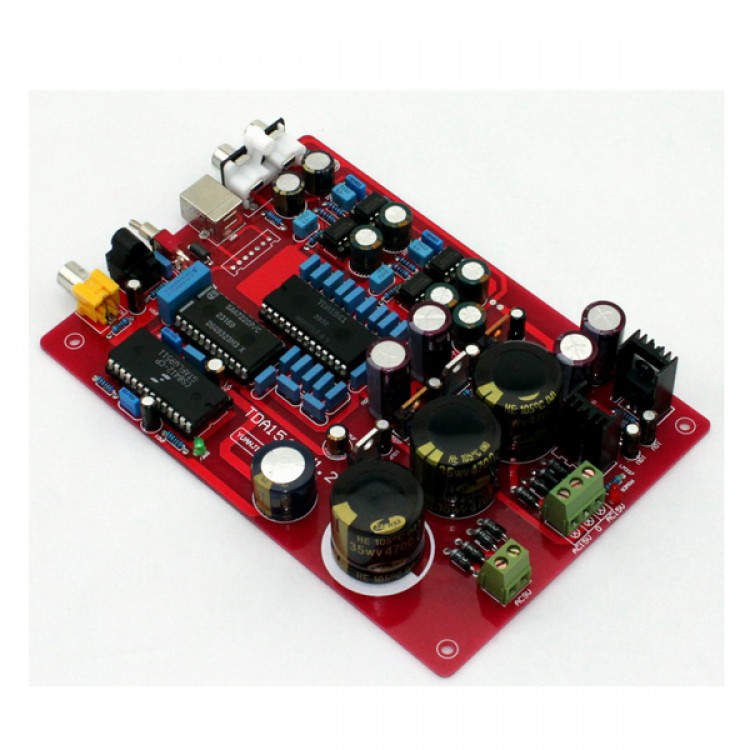

Fiber Coaxial Decoder Board TDA1541 USB Dual AC15-0-15V Dual 12V-0-12V with USB

Description:
- All parts are all original quality goods, plain, pure quality; Use high quality original parts, not just the safety and quality guaranteed, long service life, more important is to make the actual performance can meet the design goal of a strong guarantee. The pursuit of first-class quality is our consistent aim
- Adopts original:TDA1541+SAA7220+CS8412+NE5534
- Electrolytic capacitance signal main circuit adopts the brand of Taiwan, South Korea and special electrolytic capacitor is used in the main filter capacitance capacity of 2 x 4700 uf
- Resistance choose rings of metal resistance, accuracy of 1% rings metal film resistor is used in the main circuit, ensure the machine good signal-to-noise ratio.
- PCB used 1.6 mm thick double-sided board, 1.6 oz copper thick, sprayed tin whole process, to ensure good through the performance of the size of the current. The first-class quality of PCB

Specifications:
- Capacity of main filter capacitor: 2 × 4700UF
- Voltage: Dual AC15-0-15V 10W( Or Dual 12V-0-12V) / Single 9V 10W
- Plate size:115 * 165mm
