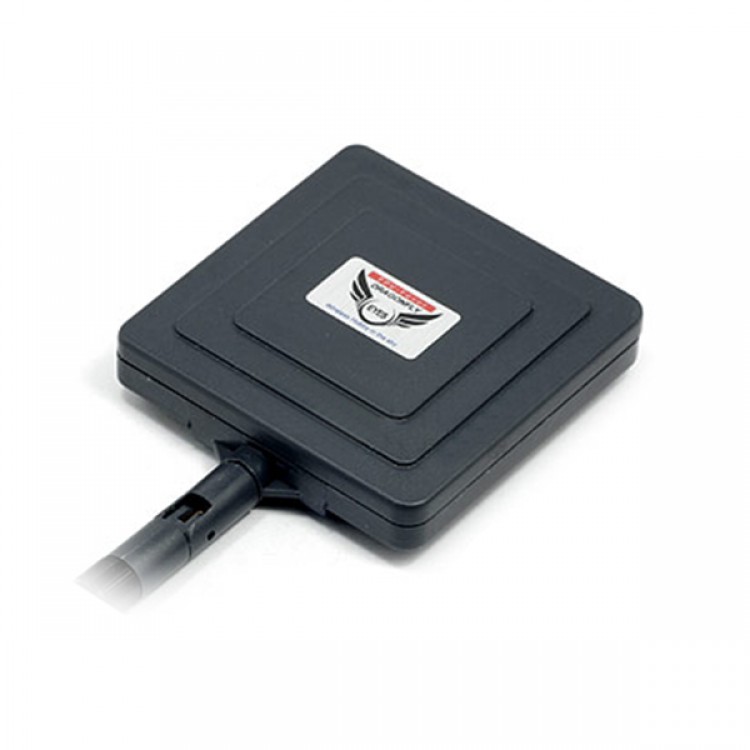

FPV-FEVER PA5811 5.8GHz 11dBi High-gain Flat Antenna 50w for FPV Transmitter

Description:
- FPV-FEVER PA5811 is specially designed for 5.8G Figure pass receiver directional flat panel antenna, which compact, easy to use, with High-gain, high-performance! Installed directly to the receiver antenna terminals can be used, without using the extension feeder lines, to further enhance information
- No stability. It can be used to enhance the stability of the image receiver, and greatly enhance the reception range. Tested, 200mW 5.8G Figure pass
- System uses the antenna, available> 5km effective distance!
Specification:
- Model: PA5811
- Frequency: 5600-5900MHz
- Gain:11dBi
- Lobe level:45 degrees
- Vertical lobo:30 degrees
- VSWR < 2.0
- Input Impedance:50 Ohm
- Polarization:Vertical
- Maximum Power:50W
- Interface:RP-SMA(femal bore)
- Size:88mm x 70mm x 120mm
- Weight:37g

Package list:
- 1 x FPV-FEVER PA5811 5.8GHz 11dBi High-gain Flat Antenna
