iMCU W7100A - Single Chip Microcontroller with TCP/IP and 10/100 Fast Ethernet MAC/PHY
  • iMCU W7100A - Single Chip Microcontroller with TCP/IP and 10/100 Fast Ethernet MAC/PHY
  • iMCU W7100A - Single Chip Microcontroller with TCP/IP and 10/100 Fast Ethernet MAC/PHY

  • SKU:12143
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 1
  • Price:$12.21
  • Price in reward points: 122
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $11.97 $11.72 $11.36 $10.87 Contact US

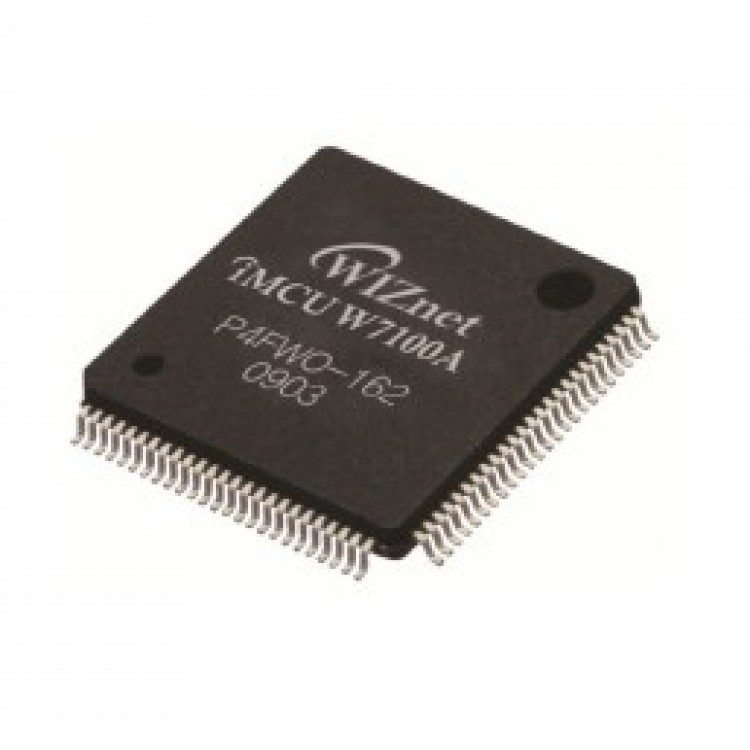

iMCU W7100A - Single Chip Microcontroller with TCP/IP and 10/100 Fast Ethernet MAC/PHY

W7100A is the upgraded chip by adding the functions of Memory Lock, Power Down mode and GPIO Pull-Up/Down control. For the tiny embedded device, 64QFN package type is supported.

Feature:
- Fully software compatible with industrial standard 8051
- Pipelined architecture 4~5 times faster than a standard 8051
- 2 data Pointers for fast memory block processing
- Internal 2K Byte boot ROM
- Internal 64K Bytes Embedded Program FLASH Memory
- Internal 256 Bytes Embedded Data FLASH Memory
- Internal 64K Bytes SRAM
- External 11.0592 MHz operation frequency for internal PLL logic
- Interrupt Controller : 2 priority levels / 4 external interrupt sources / 1watchdong interrupt
- Four 8 bit I/O Ports
- Three timers/counters
- Full Duplex UART
- Programmable Watchdog Timer
- DoCD & trade compatible debugger
- Fully Hardwired TCP/IP Protocols
- 8 independent hardware socket and hybrid software stack
- Internal 32K Bytes memory for TCP/IP data communication
- 10BaseT/100Base TX Ethernet MAC/PHY Embedded
- Auto negotiation (Full / Half Duplex)
- Auto MDI/MDIX
- 3.3V operation with 5V I/O signal tolerance
- 100LQFP Package
