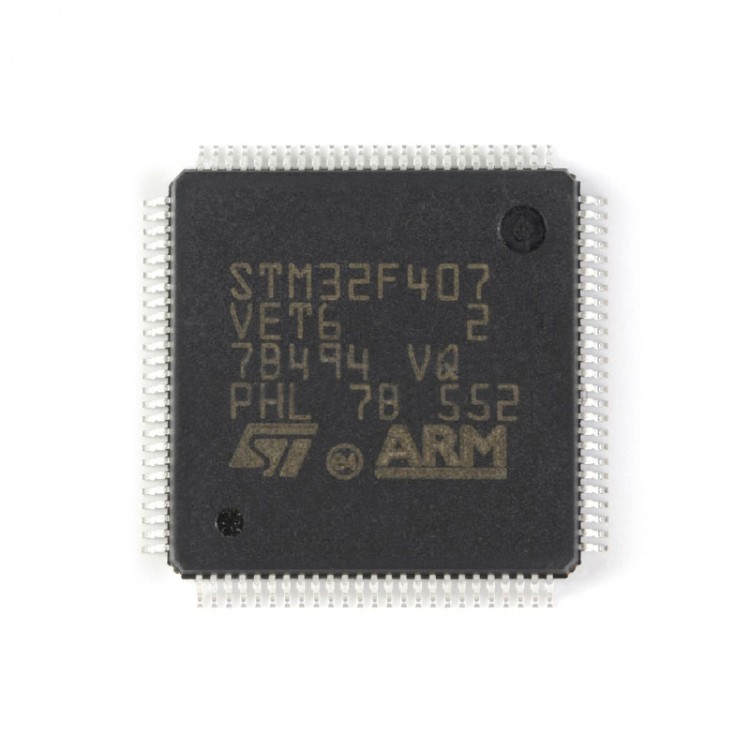

10PCS Original STM32F407VET6 LQFP-100 32Bit Microcontroller Units MCU IC For ARM Cortex-M4

10PCS Original STM32F407VET6 LQFP-100 32Bit Microcontroller Units MCU IC For ARM Cortex-M4

Description:
High-performance foundation line, for ARM Cortex-M4 core with DSP and FPU, 512Kbytes Flash, 168MHz CPU, ART Accelerator, Ethernet, FSMC.

It is based on the high-performance 32-bit RISC core for Arm Cortex-M4 operating at a frequency of up to 168 MHz. The core for Cortex-M4 features a floating point unit (FPU) single precision which supports for all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. It incorporates high-speed embedded memories (Flash memory up to 1Mbyte, up to 192Kbytes of SRAM), up to 4Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.

All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers, a true random number generator (RNG). They also feature standard and advanced communication interfaces.

All Functions:
* Core: for Arm 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from Flash memory, frequency up to 168 MHz, memory protection unit, 210 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
* Memories: Up to 1Mbyte of Flash memory. Up to 192+4Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data RAM. 512 bytes of OTP memory. Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories
* LCD parallel interface, 8080/6800 modes
* Clock, reset and supply management: 1.8 V to 3.6 V application supply and I/Os. POR, PDR, PVD and BOR. 4-to-26 MHz crystal oscillator. Internal 16 MHz factory-trimmed RC (1% accuracy). 32kHz oscillator for RTC with calibration. Internal 32 kHz RC with calibration
* Low-power operation: Sleep, Stop and Standby modes. VBAT supply for RTC, 20x32 bit backup registers + optional 4 KB backup SRAM
* 3x12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode
* 2x12-bit D/A converters
* General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
* Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
* Debug mode: Serial wire debug (SWD) & JTAG interfaces. For Cortex-M4 Embedded Trace Macrocell
* Up to 140 I/O ports with interrupt capability: Up to 136 fast I/Os up to 84 MHz. Up to 138 5 V-tolerant I/Os
* Up to 15 communication interfaces: Up to 3 x I2C interfaces (SMBus/PMBus). Up to 4 USARTs/2 UARTs (10.5 Mbit/s, ISO 7816 interface, LIN, IrDA, modem control). Up to 3 SPIs (42 Mbits/s), 2 with muxed full-duplex I2S to achieve audio class accuracy via internal audio PLL or external clock. 2 x CAN interfaces (2.0B Active). SDIO interface
* Advanced connectivity: USB 2.0 full-speed device/host/OTG controller with on-chip PHY. USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI. 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
* 8- to 14-bit parallel camera interface up to 54Mbytes/s
* True random number generator
* CRC calculation unit
* 96-bit unique ID
* RTC: subsecond accuracy, hardware calendar

Package Included:
* 10 x Microcontrollers
