|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$112.70||$110.40||$106.95||$102.35||Contact US|

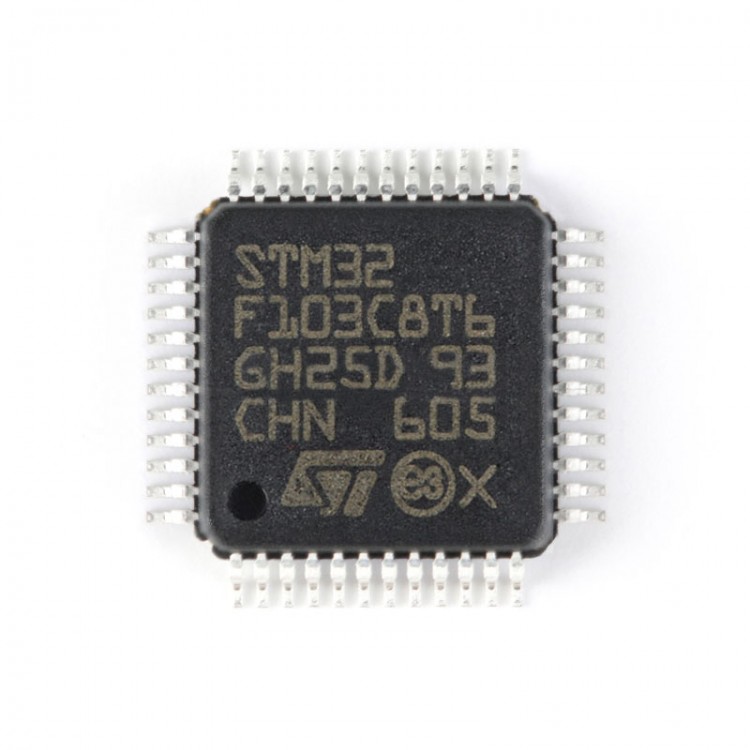

10PCS Original STM32F103C8T6 LQFP-48 32Bit Microcontroller Units MCU IC For ARM Cortex-M3
Mainstream Performance line, for Arm Cortex-M3 MCU with 64Kbytes of Flash memory, 72MHz CPU, motor control, USB and CAN
It incorporates the high-performance 32-bit RISC core for ARM Cortex-M3 operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.
The devices operate from a 2.0 to 3.6 V power supply. They are available in both the -40 to +85 °C temperature range and the -40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.
The medium-density performance line family includes devices in six different package types: from 36 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.
These features make the medium-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.
* For ARM 32-bit Cortex-M3 CPU Core: 72MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access. Single-cycle multiplication and hardware division
* Memories: 64 or 128Kbytes of Flash memory. 20Kbytes of SRAM
* Clock, reset and supply management: 2.0 to 3.6 V application supply and I/Os. POR, PDR, and programmable voltage detector (PVD). 4-to-16 MHz crystal oscillator. Internal 8 MHz factory-trimmed RC. Internal 40 kHz RC. PLL for CPU clock. 32 kHz oscillator for RTC with calibration
* Low-power: Sleep, Stop and Standby modes. VBAT supply for RTC and backup registers.
* 2 x 12-bit, 1μs A/D converters (up to 16 channels). Conversion range: 0 to 3.6 V. Dual-sample and hold capability. Temperature sensor
* DMA: 7-channel DMA controller. Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
* Up to 80 fast I/O ports: 26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
* Debug mode: Serial wire debug (SWD) & JTAG interfaces
* 7 timers: Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input. 16-bit, motor control PWM timer with dead-time generation and emergency stop. 2 watchdog timers (Independent and Window). SysTick timer 24-bit downcounter
* Up to 9 communication interfaces: Up to 2 x I2C interfaces (SMBus/PMBus). Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control). Up to 2 SPIs (18Mbit/s). CAN interface (2.0B Active). USB 2.0 full-speed interface
* CRC calculation unit, 96-bit unique ID
* Packages are for ECOPACK
* 10 x Microcontroller
