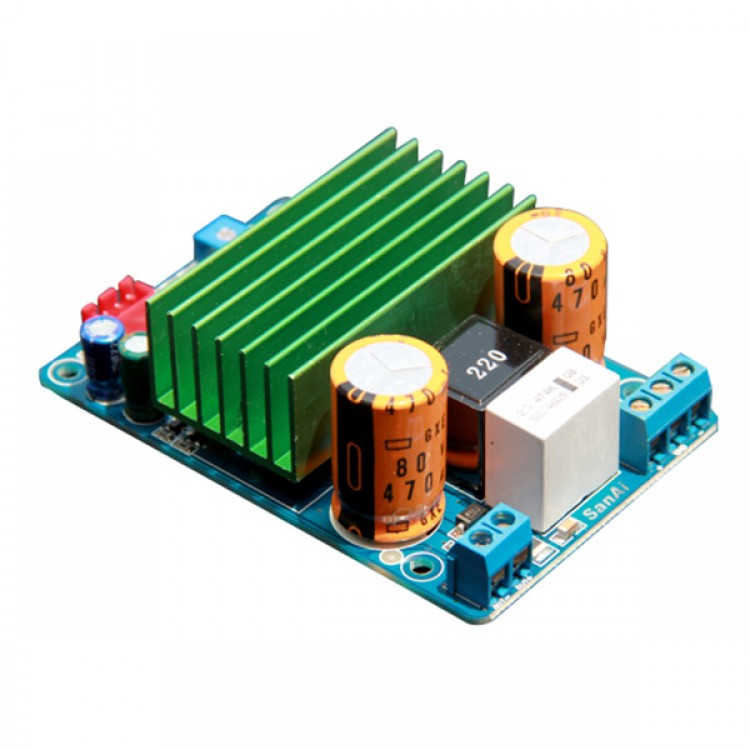

IRS2092S 250W Amp Board High Power D-Class HIFI Digital Amplifier Board Single Mono Channel

Specification:
- Voltage:±42---±58V
- Rated output power:250W(±50V/4 ohm,Distortion:<=0.05%)
- Max output power:300W(±50V/4 ohm,distortion<=2%),If you want to work in the high-power please use strengthen heat dissipation, this board rated for 250 w
- effciency:>=90%
- SNR:90dB
- Total harmonic distortion:250W(±50V/4 ohm,Distortion:<=0.05%)
                                                250W(±50V/8ohm,Distortion<=0.01%)
- Frequency range:20Hz-20KHz
- Speaker:4-8Ω
- Voltage gain:36
- Output short circuit protection:Yes
- Output of dc bias to protect the speaker protection:Yes
- Under voltage protection: Yes, 39 v, the power supply voltage is lower than 39 v power amplifier will protect, close the output
- Over voltage protection: Yes, 68 v, the power supply voltage is higher than 68 v power amplifier will protect, close the output
- Over temperature protection: yes, field effect tube radiator temperature higher than 100 ° C, close the output
- Size:86mm*56mm*29mm
- Weight:100g

Package list:
- 1  x IRS2092S 250W Amp Board High Power D-Class HIFI Digital Amplifier Board Single Mono Channel Amp
