• linksprite IOIO OTG Android Development Board

linksprite IOIO OTG Android Development Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$45.90
  • Price in reward points: 459 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.98 $44.06 $42.69 $40.85 Contact US

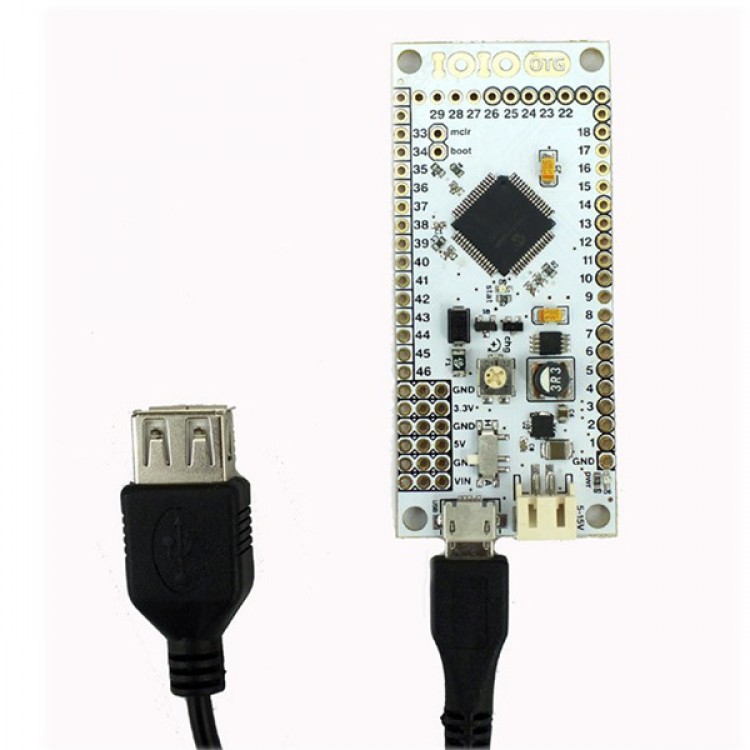

linksprite IOIO OTG Android Development Board

- The IOIO-OTG is a printed circuit board for electronics hobbyists and prototypers, which addresses a very common problem: how do I use my {computer, tablet, phone} to control my {robot, dish-washer, cat-feeder, etc.}. The original IOIO board was the first to offer a complete solution to this problem for Android devices. The IOIO-OTG adds PC support (Windows, Linux, OSX).
- Unlike most other solutions, requiring you to write two pieces of software (board and client), at least one of which is typically complicated, the IOIO takes a different approach, by only requiring you to write the client-side (Android, PC) software, using a high-level programming language (currently Java) with a rich and intuitive API that allows you to manipulate the I/O pins and hardware peripherals on the board,giving you the experience that those I/O capabilities are actually an integral part of your client machine. This feature of the IOIO makes prototyping and development with it very fast and simple. Another great selling point is that it can work with virtually any Android device, even very old ones (Android 1.5 or higher), while most other boards would only work with the latest and greatest.
- You can connect the IOIO to its client either over USB or over Bluetooth (using a standard dongle). The pre-installed firmware and the provided software library completely hide away the gory details of the underlying connection. The same code you write will work over either connection type seamlessly.
- Smaller, Cheaper, Stronger
- The IOIO-OTG is significantly smaller in size and/or cheaper and/or richer in features than alternative solutions. For example, in the Android world, the IOIO-OTG's I/O specs are comparable with an Arduino Mega ADK at a fraction of the size and cost and with all the software advantages mentioned above. In the PC world it would provide an attractive competition as well to boards of similar capabilities, and once again, the savings on software development time are huge.
- To make it super-loud-and-clear: I'm not making a case that IOIO-OTG is better than Arduino or vice-versa. Arduino is awesome for what it's good at, which is IMHO for standalone operation. The IOIO boards were never intended to work standalone, but excel when it comes to offering I/O to an existing machine that lacks it. There is an ever increasing number of applications that fall into this category, especially due to the attractiveness of using Android devices in physical computing applications, getting tons of sensors, internet connectivity, lots of computation power, touch screen, etc. in a cheap, easy to use package.
Constantly Improving
- The IOIO-OTG is all open-source, software, firmware and hardware. The development has been an ongoing process, with new features and bug fixes introduced on a regular basis. New versions of firmware are distributed in a way that makes it very simple for the user to upgrade: connect the IOIO-OTG to a PC and run a simple program to flash the latest version, or your own custom one if you're into such adventures. Download the software package with libraries and examples from the website and you're good to go.
Hardware Specs
That's what we're here for, aren't we? Here are the main features:
- USB-OTG dual-role (host, device).
- Input voltage: 5V-15V, from external source or through USB (when connected to a computer).
- Output voltage: 5V, up to 3A (!), 3.3V, up to 500mA.
- 46 I/O pins (digital I/O), built-in pull-ups / pull-downs / open-drain on all pins.
- 16 Analog inputs.
- 9 PWM (for driving servos, DC motors, dimming LEDs, etc).
- 4 UART.
- 3 TWI (I2C, SMBUS).
- 3 SPI.
- 6 Pulse Input (precise pulse-width / frequency measurement).
- USB current limiting when acting as USB host (useful in Android mode).
- Switch for forcing host mode (for using non-standard USB cables, which are more common than the standard ones...)
- On-board LED under user control.

For those who know the IOIO V1, the main changes are the dual-role stuff, the beefier 5V regulator and two less I/O pins. There's also improved circuitry for cleaner analog input and better protection against user error (you can still fry it if you really want to :D)
