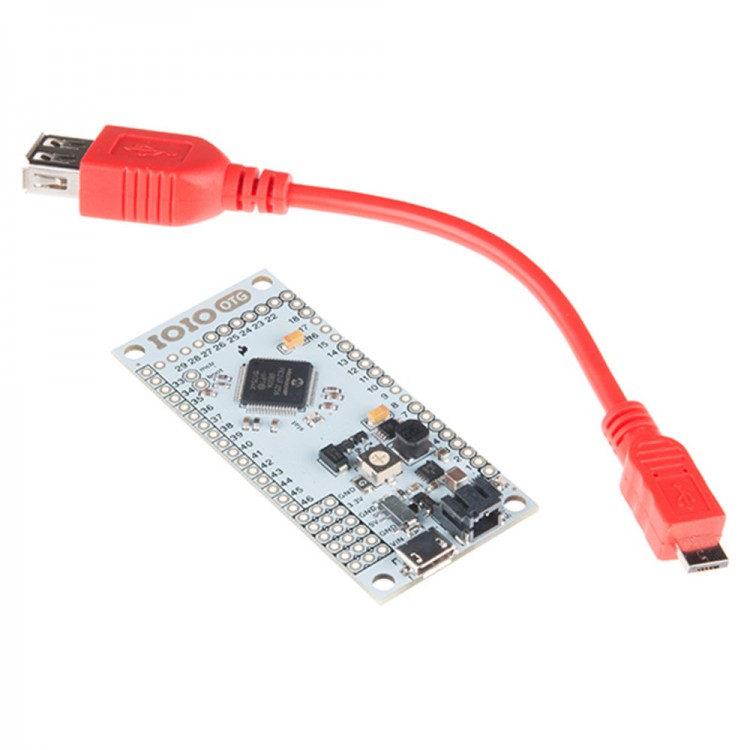

IOIO OTG Android Google IO PIC MCU Microcontroller Android Smartphone Controller
Features:
- USB-OTG dual mode (host mode, device mode).
- Input voltage: 5V-15V, from the external power supply or USB power supply (when connected to the computer).
- Output voltage: 5V, can reach 3A , 3.3V, can reach 500mA.
- 46 I/O pin (digital I/O), built-in pull / drop / open drain resistance on all pins.
- 16 analog inputs.
- 9 PWM (drive actuator, DC motor, LED, etc.).
- 4 UART.
- 3 TWI (I2C, SMBUS).
- 3 SPI.
- 6 pulse signal input (accurate pulse width / frequency measurement).
- As a USB host, there will be a USB current limit (valid in the Android mode).
- Can be hit by the switch to the host mode
- Can be controlled by the user board in the LED lamp
Package Included:
- 1 X IOIO-OTG Development Board
- 1 X USB Female-A to Micro-A Cable
- 2 X Pin
