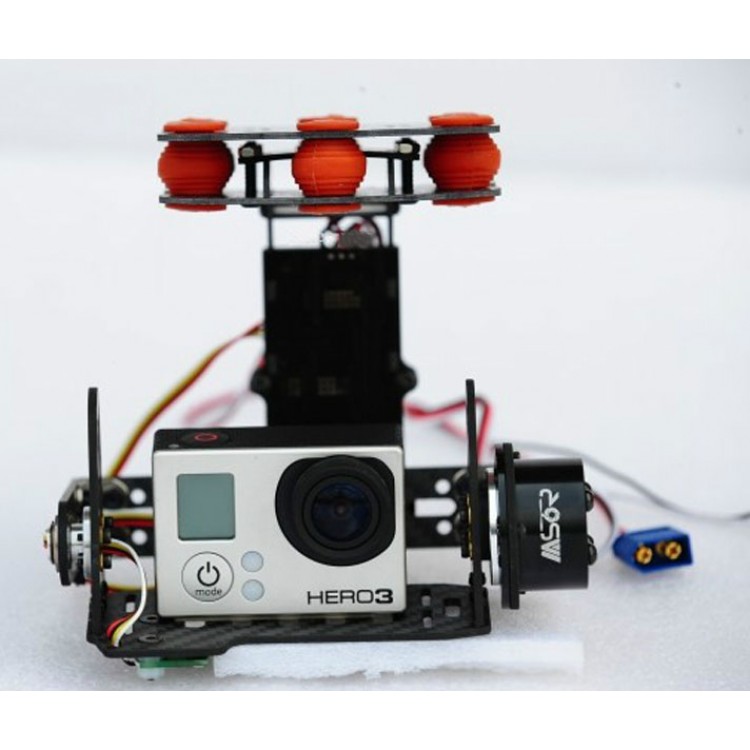

Mastor-G GoPro 3/2/1 Brushless Gimbals Brushless Camera Gimbal PTZ for Multicopter Aerial Photpgraphy
MASTOR-G Parameter:
- Rolling angle adjustable:> 360 degree ,support continuous adjustment
- Tilt angle adjustment: > 180 deree,support continuous adjustment( can adjust via Throttle/knob or 3-section switch to adjust)
- Parameter adjustment: Ready for use, debugged
If load wight changed wildly,just adjust output value is ok,needn't PID adjustment
- Compatible with: Gopro 1, 2/3
- Voltage:2S-4S ,Recommend 3S (Max support 6s,but need adjust output value)
- Camera gimbal stability adjustment: Roll: 178 degree/s, Tilt:182degree/S
- Stability adjustment precision: Roll:0.07 degree ,Tilt/0.05 degree
- Load ability:120g-400g
- 12 hours angle excursion :0.12-0.15 degree
- Anti-Wind grade:5
- Brushless steering: Auto/neend't to set
- Horizontal calibration: Auto/needn't adjust by remote controller
Differences :Compare with Russian Alexmos and Germany version gimbal controller
-- MASTOR-G Russian Alexmos Germany version
- CPU: 32 digit 328P8 single chip 328P8 single chip
- sound small 12K high frequency sound ----
- Para setting easy middle middle(PID setting/CW/CCW and so on)
Parameter need setting:
- A: tilt angle adjustment
- B:Tilt/roll power out put
Package included:
- Mastor-G GoPro 3/2/1 Brushless Gimbals Brushless compelet kit(including controller,motor and so on)
Test Video 1:
Test Video 2:
Test Video 3:
