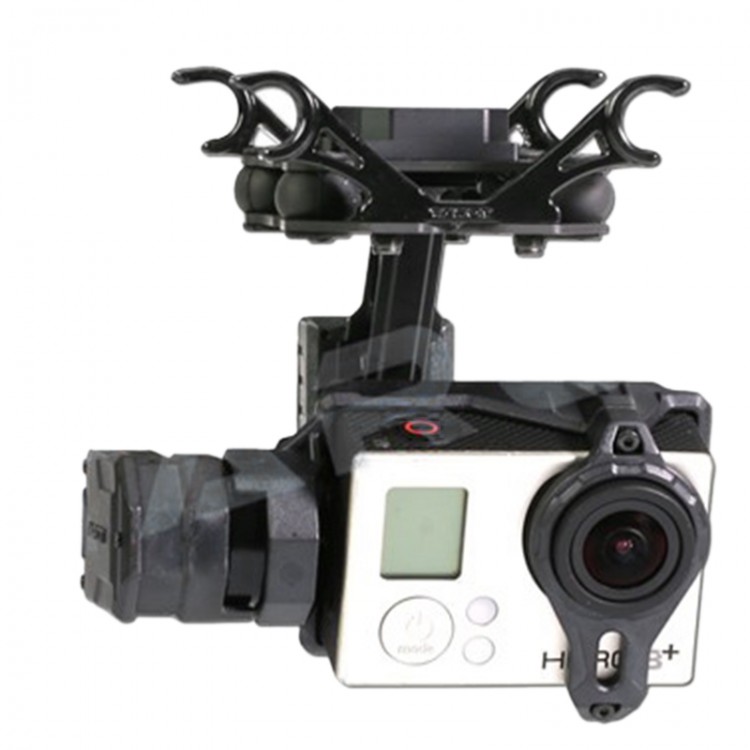

Tarot TL2D01 T2-2D 2-Axis Brushless Gimbal PTZ for Gopro 3 3+ 4 Sport Camera Aerial Photography FPV
Description:
Tarot GOPRO T2-2D two-axis brushless PTZ for GOPRO4 / GOpro3 + / Gopro3 or other sports camera, high-precision and lightweight for multicopter, aircraft, fixed wing, helicopters and other carriers.
T2-2D two-axis auto-PTZ adopts advanced control algorithms, built-in independent IMU precise attitude control PTZ, and PTZ integrated servo drive module.
2S-6S lithium polymer battery (7.4-22.2V) input, roll direction (TILT): ± 200 ° / s, the pitch direction (TILT): - 120 ° to + 15 °. Speed controllable pitch axis, the amount of rocker lever corresponding pitch axis rotation speed, the greater the lever and the faster the rotation speed is.
Wiring unbound design, all power and signal lines subtly embedded in the head structure without tedious debugging can be a key to start energizing both fly.
Support computer operating parameters setting interface, provide long-term system free upgrade service.
Features:
- Support computer interface settings
- Built Independent IMU Module
- TAROT PTZ dedicated servo drive module
- AV output interface
- Wide range voltage input support
- Support conventional receiver / S-Bus receiver / DSM receivers
- Support Camera Type: GOPRO HERO3 / HERO4 same size and weight of the camera
- Input Power: 2S ~ 6S LiPo battery
- Angle control accuracy: ± 0.02degree
Maximum controllable speed:
- Roll direction (TILT): ± 200 degree / s
- Pitch direction (TILT): -120 degree to + 15 degree
- Operating Current: 30mA ( 25V) 50mA ( 12V)
- Stall Current: 350mA ( 25V) 700mA (12V)
- Working temperature: -20 degree C ~ 50 degreeC
- Weight: 109g
- Size: 99mm × 95mm × 105.6mm
- Scheduling software installation requirements: Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
Packge includes:
- Two-axis brushless PTZ × 1
- PTZ control module × 1
- Connection cable for PTZ main control and PTZ × 1
- 5V output, the receiver and video cable × 1
- USB module × 1
- Flight control cable × 1
