Tarot T-2D Brushless Gimbal Gopro 3 Aerial Photography Brushless Camera Gimbal TL68A08

Tarot T-2D Brushless Gimbal Gopro 3 Aerial Photography Beushless Camera Gimbal TL68A08

Description:

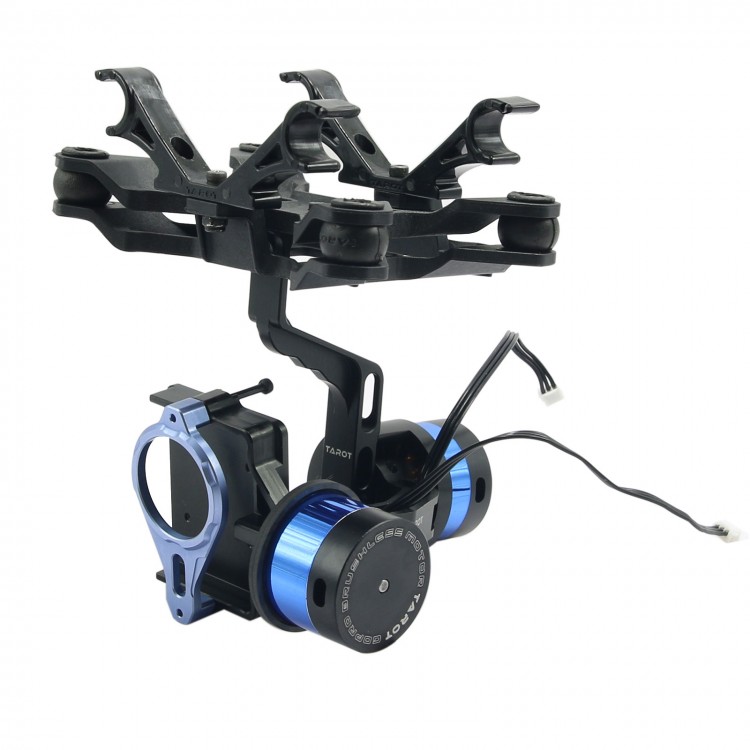

- Tarot T-2D gimbal is designed for the Gopro Hero3, which is widely usedinfilm,television productions, advertising aerial photography, etc. Using 6061T6 aluminum alloy full CNC precision machining and brushless motor driving,its overall framework is designed with the idea of compact, easy installation, high precision, lightweight, high stability and many other characteristics. Evenif the aircraft is in high-speed flight, it can still stabilize and control the Goprocamera precisely with the highest stability, so pictures or videos output can reach the best quality.

Tarot TL68A08 Related Part Number:
- Camera Mount hanging hook (SKU:25414) TL68A01
- GOPRO camera fasteners (SKU:25413)TL68A02
- GOPRO brushless PTZ camera frame assembly(SKU:25412) TL68A03
- GOPRO Camera Mount roll arm (SKU:25546) TL68A04
- GOPRO PTZ stand arm motor base (SKU:25545)TL68A05
- GOPRO brushless motor(SKU:25549) TL68A06 PTZ
- GOPRO two axis PTZ shock group(SKU:25758) TL68A07
- GOPRO Camera Mount roll axis brushless motor(SKU:25548) TL68A09
- GOPRO PTZ suspension ball TL68A11
- GOPRO two-axis gyroscope ZYX22 PTZ



Specification:
-Camera Mount hanging hook x2（72x25x10MM）3.8G
- M2.5×8MM Hex screw ×4
- H5×14MM Aluminium spacer ×4
- M2.5×5MM Hex screw ×4
- 1.6MM3K Carbon fiber anti-vibration plate( upper)×1（84×79×1.6MM）10G
- 1.6MM3K Carbon fiber anti-vibration plate( lower)×1（89×79×1.6MM）12G
- GOPRO antivibration ball ×4（14×13×1.2）0.9G
- M3 screws x1(M3x4mm)
- GOPRO motor mounting base×1（60×35×17MM）
- M2.5×5MM hex screws×2
- M2.0×5MM cup screws ×2
- M3 screw x 4(M3x4mm)
- GOPRO Camera Mount roll arm ×1（60×35×17MM）
- GOPRO Camera Mount Tilt  arm(short axis）×1
- GOPRO Tilt axis shaft×1
- carbon fiber motor cover×1（38×33×2.5MM）
- M2×22MM screw ×2
- GOPRO3 metal camera fixture×1（51×29×7MM）4.0G
- GOPRO3 metal camera base plate×1（51×45×15MM）13.0G
- M3×6MM screws×1
- M3×5MM screws ×1
- sensor metal cover×1（24×21.5×4.5MM）2.7G
- M2×5MM hex screws×4
- User manual ×1

Package including
- Tarot gimbal frame( with motors )x 1

Pls note this one without gimbal gyro/controller,if you want buy one with Gyro ,pls buy 25829
