MC6500PRO 2 Axis Camera Mount Gimbal w/ 2 servos X450PRO X650 V4 V8
  • MC6500PRO 2 Axis Camera Mount Gimbal w/ 2 servos X450PRO X650 V4 V8

  • SKU:22443
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 21
  • Price:$209.67
  • Price in reward points: 2097
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $205.48 $201.28 $194.99 $186.61 Contact US

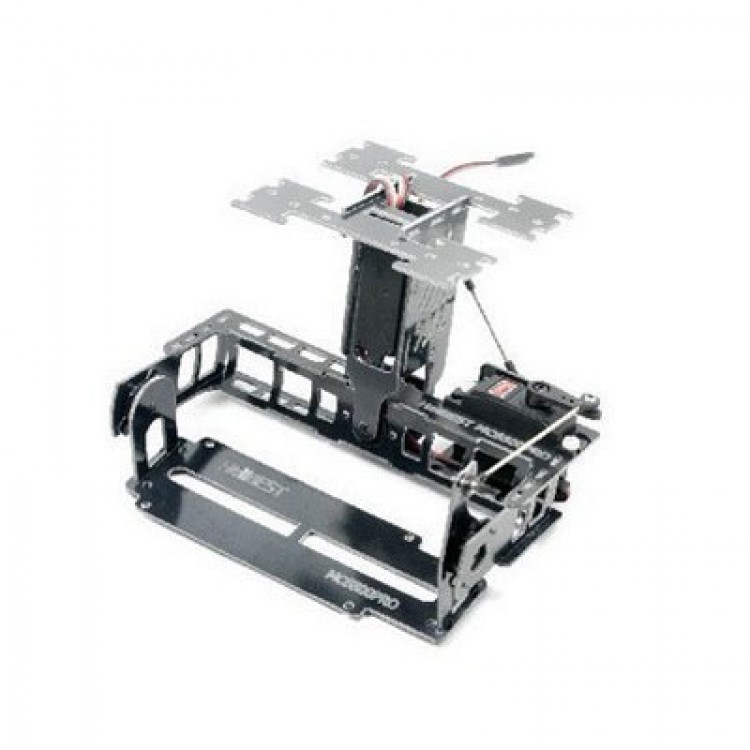

MC6500PRO 2 Axis Camera Mount Gimbal w/ 2 Servos X450PRO X650 V4 V8

Main features of MC6500PRO 2 Axis Camera Gimbal:
- High-performance camera gimbal special for small multicopters
- Apply special DSC2600Diji super delicate digital servo
- It is compatible with any flight controller and stabilizer (DJI WKM, FC1212-S/V2/P, FA20A/30A, MK2.0 etc.)
- It is compatible with XAircraft X650 V4/V8, X450/X450 Pro, Sigma Q4/Y6 and some other kits
- Installed ways: lifting or flipping
- Two connection ways: hardwired and soft connection
- The use of special ultra-precision servo + 4 special rolling dampers, give you unparalleled smoothness performance
- It is very light, only weigh 118g

MC6500PRO is a 2 Axis camera gimbal (rolling axis and pitching axis) special designed for PFV fans. It is researched and developed by Helibest, with independent intellectual property rights. HeliBEST MC6500PRO not only gives you the performance as good as the professional camera mounts, but also gives you a surprising price you could afford. MC6500PRO could install on the normal helicopters, such as XAircraft X650V4/V8, X450P¡¢DIY-Hexa, Sigma Q4-480W, Y6-500FG and most of other DIY frames. There are two installation methods, one is traditional lifting, and the other is ceiling mounting (camera lens vertical and upward in order to catch the scene in the sky.). There are two connection ways you can choose to connect with the frame: hard-weird connection and soft connection. If your frame high-frequency vibration is low, then you can choose the hard-weird connection. However, the performance of soft connection is better in most cases. The gimbal comes with 2 special digital servos, it could direct drive by receiver. For the autostabilization function, it should be drive by flight control or autostablizer.

MC6500PRO provide 2 axial control function: rolling and pitching. It was drived by two purpose-built digital servos DSC2600Digi. There are 2 dampers on rotating axis to improve the smoothness of rotation. MC6500PRO axial constraints adopt the rod drive mode. During the driven processing, torque and speed changes¡ªwhen it starts, the speed is fast; when it stops, it is gentle and soft; which is more conform to dynamic requests for camera gimbal stabilizer drive to reduction ratio. MC6500PRO provide several reduction ratio collocations for player to choose, in order to get the perfect performance. (The ratio in the user manual is highly recommended).

MC6500PRO was used to take many aerial photography videos, the realistic videos could improve its excellent performance and super high cost performance. In most of the videos, we use this camera gimbal on XAircraft 650 value and the GoPro HD camera. We can do it, you can do it too. Create your own high quality aerial photography.

MC6500PRO specifications:
- Weight: 62.2g (servo not included)
- Weight: 118g (servo included)
- Effective width of inner frame: 110mm
- Depth: 36mm
- Size: 138mm x 105mm x 105mm
- Roll angle: > +/- 20 degrees
- Pitching angle: >+/- 40 degrees

DS2600Diji servo specifications:
- Speed: 0.06s/60 @ 6.0 V
- Torque: 3.0kg/cm @ 6.0 V
- Voltage: 4.8V--6.0V
- Motor: Coreless motor
- Gear: Nylon
- Deceleration stages: 6
- Size: 35.6mm x 15mm x 33.5mm
- Weight: 26.12g

Package includes:
- 1 x MC6500PRO camera gimbal frame (glass fiber)
- 2 x DCS2600Digi dedicated digital servo
- 4 x Special damper
- 2 x Servo rod
- 4 x Ball head + Ball head buckle
- 2 x Rubber and plastic damping tube
- 4 x O ring
- 4 x Damper screw and nut
- 8 x M2 hexagon socket head cap screw
