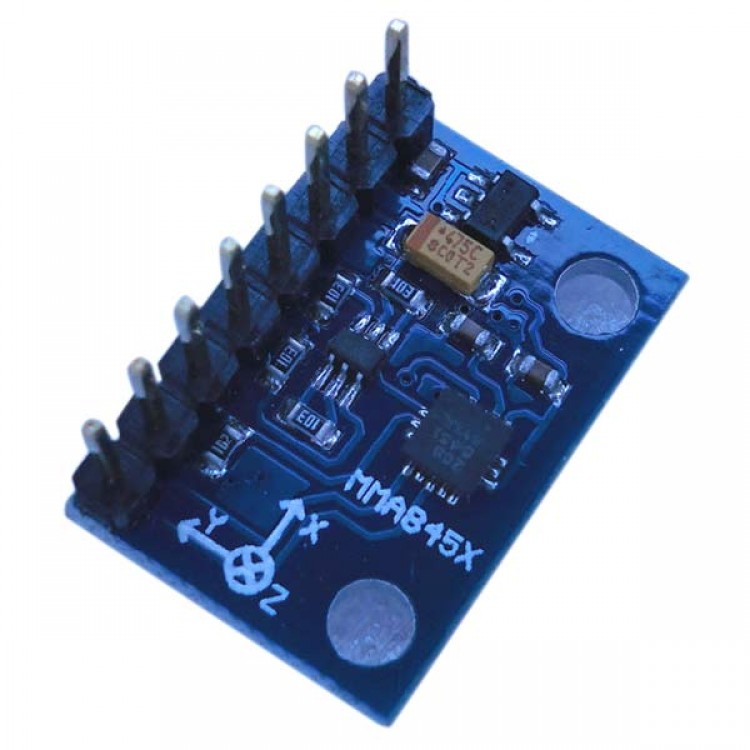

• MMA8451Q MMA8451 Triaxial Accelerometer Module

MMA8451Q MMA8451 Triaxial Accelerometer Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$12.46
  • Price in reward points: 125 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.21 $11.96 $11.59 $11.09 Contact US

MMA8451Q MMA8451 Triaxial Accelerometer Module ±2g/±4g/±8g

- The MMA8451Q is a smart low-power, three-axis, capacitive micromachined accelerometer with 14 bits of resolution. This accelerometer is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins. Embedded interrupt functions allow for overall power savings relieving the host processor from continuously polling data. There is access to both low pass filtered data as well as high pass filtered data, which minimizes the data analysis required for jolt detection and faster transitions. The device can be configured to generate inertial wake-up interrupt signals from any combination of the configurable embedded functions allowing the MMA8451Q to monitor events and remain in a low power mode during periods of inactivity.

- MMA8451 module, high-precision tilt sensor module 14BIT-digit
- Module Model: MMA8451Q
- Power supply :3-5v (communication is fully compatible with the system of work 5v)
- Module size L * W = 14.5mm * 20.5 mm,
- Mounting hole diameter 3mm, Pitch 15mm
- 51 test code
