OpenWRT RT5350 RT3352 Router Mainboard

OpenWRT RT5350 RT3352 Router Mainboard

The main parameters:
CPU:Ralink RT3352F 2T2R (two antenna port)
Memory: Winbond W9751G6KB-25 256M
Flash:cFeon Q64-104HIP 8M
Network port: 1 WAN 4 LAN (with 2 WAN 3 LAN)
USB port: 2
UART port: 1 TTL level
Power supply: 12V, 5V and 3.3V switch power supply
Indicator: 10
Can brush firmware openwrt-ramips-rt305x-wap120nf-4M-squashfs-sysupgrade.rar can brush good delivery.
Understand OPENWRT game player, you can compile firmware, hang USB hard disk, do offline Downloader, over the wall, personal cloud, NAS, file server, and Web server.

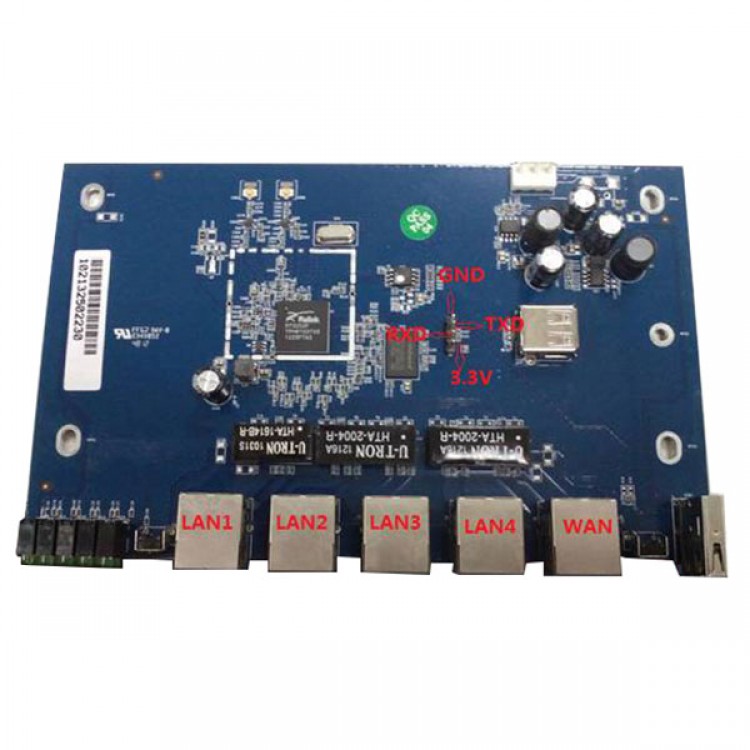

1 using USB RS232 and TXD board, RXD interface;
2.PC terminal open SecureCRT tool, baud rate setting
The 3 board of electric tools, serial SecureCRT print U-Boot
(Note: U-Boot board with modifications, some options not display the print, print below part did not make notes on the U-Boot; if necessary to display all the print, according to the company's U-Boot to upgrade)
4 to upgrade TFTP Flash as an example to introduce the TFTP upgrade environment:
(Note: the board of Server ip=10.10.10.133)
A: PC IP static 10.10.10.133255.255.255.0 address;
B: upgrade program are copied to the TFTP server under the down folder;
Run "TFTPServer.exe c";
D: sets the TFTPServer root directory
E: upgrade option through the SecureCRT serial port tools selection:
F: upgrade requires 1-2 minutes, when upgrading print

Delivery list:
A router
2 simple antenna
1 12V power supply
