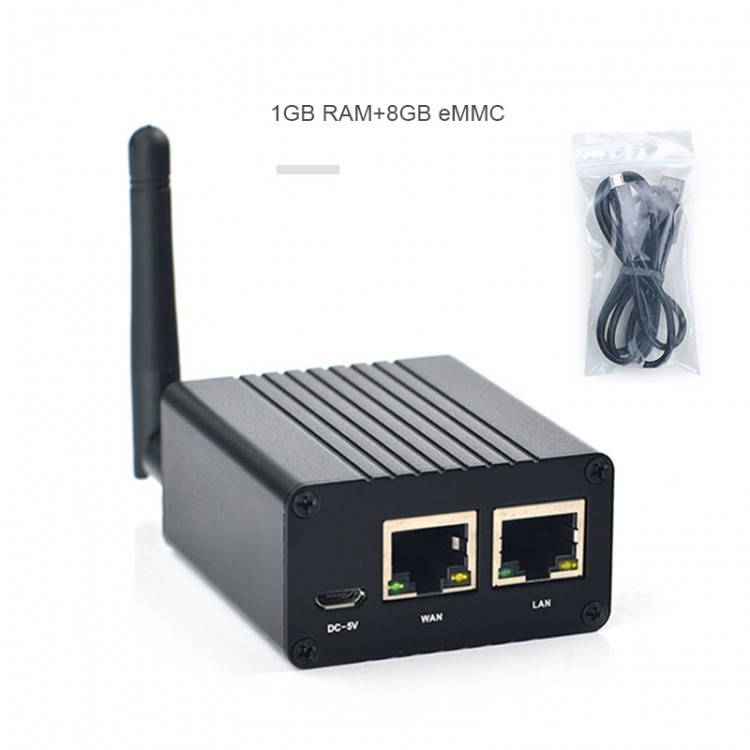

NanoPi R1 IoT Router Two Network Port 1GB RAM 8GB EMMC + MicroUSB Cable For Ubuntu OpenWrt

Availability: In stock, usually dispatched in 1 business day

  • Price:$81.33
  • Price in reward points: 813 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $79.70 $78.08 $75.64 $72.38 Contact US
Quantity:

NanoPi R1 IoT Router Two Network Port 1GB RAM 8GB EMMC + MicroUSB Cable For Ubuntu OpenWrt

Download Materials:

1. WiKi tutorial (firmware introduction, instructions for use, operation steps, etc.): http://wiki.friendlyarm.com/wiki/index.php/NanoPi_R1
2. Download system firmware: https://dl.friendlyarm.com/nanopir1
3. Schematic (pdf format): http://wiki.friendlyarm.com/wiki/images/a/ab/NanoPi_R1_V1.0_1809-Schematic.pdf
4. Dimensions (dxf format): http://wiki.friendlyarm.com/wiki/index.php/File:Dimension_NanoPi_R1_V1.0_1809_PCB.rar

Product Description:
NanoPi R1 is another completely open-source handheld maker artifact for IoT development and application.

NanoPi R1 has dual Gigabit and 100M Ethernet ports, onboard Wi-Fi and Bluetooth modules. It also has two USB 2.0 ports and a TTL serial port, which can be used to expand peripherals such as 3G/4G modules.

NanoPi R1 uses for Linux 4.14 long-term support kernel, can run embedded operating systems for UbuntuCore and OpenWrt, has a good software ecology, and is mainly suitable for IoT development and applications.

Attention: NanoPi R1 is powered by 5V MicroUSB and has a black metal casing.

Advantages:
- Quad-core for Cortex-A7
- 512MB or 1GB DDR3 RAM
- Dual Ethernet ports
- USB 2.0*2
- Wifi & Bluetooth
- For UbuntuCore/OpenWrt OS
- Compact metal case

Hardware Characteristics:
CPU:
- Model: for Allwinner H3
- Number of Cores: Quad-core
- Frequency: 4x for Cortex-A7 Up to 1.2GHz
Memory:
- RAM: 512MB(16-bit)/1GB(32-bit)

Storage:
- eMMC: NC/8GB
- MicroSD Slot: MicroSD x1 for external storage up to 128GB

Connectivity:
- Ethernet: 10/100M Ethernet x1, 10/100/1000M Ethernet x 1
- WiFi: based on AP6212 Module, 802.11b/g/n, with SMA antenna interface
- Bluetooth: 4.0 dual mode

USB:
- MicroUSB x1: MicroUSB 2.0, OTG & Power In
- USB Host: 2.0 Type A x2

Pin-header:
- Serial Debug Port: 2.54mm pitch 3-pin-header

Connector:
- UART x1: 2.54mm pitch 4-pin-connector

LED:
- PWR/STAT LED(Red) x1
- LED(Green) x2

Others:
- Button: User button x 1
- RTC-BAT x1: Input Voltage 3.0~3.6V
- Working Temperature: -20℃ to 70℃

Power:
- MicroUSB DC 5V/2A

System/Software Characteristics:
OS Support:
- For FriendlyCore 16.04 (based on for UbuntuCore-16.04)
- For OpenWrt 18.06
- For eFlasher

Kernel version:
- For Linux-4.4-LTS
- For U-boot-2017.11

Specifications:
- PCB: 6-Layer
- Shell size: 62 x 55 x 30mm
- Router weight: 115g

Package Included:
- 1 x NanoPi R1 (Assembled)
- 1 x MicroUSB Data Cable
