Mini Router Dual Ethernet Ports 32G Flash Memory Built-in English System w/ Power Supply NanoPi R2S

Mini Router Dual Ethernet Ports 32G Flash Memory Built-in English System w/ Power Supply NanoPi R2S

Description:
NanoPi R2S is an open source platform with two Gbps Ethernet ports, designed for IoT applications.

NanoPi R2S uses RK3328 CPU. It has two Gbps Ethernet ports and 1G DDR4 RAM. We have applied system for OpenWrt to NanoPi R2S. You can easily make it a router by simply applying simple configurations.

Powerful Performance RK3328. Quad-core/1GB DDR4 RAM. Supports hardware acceleration for AES enabled encryption and decryption. 1GB DDR4 RAM sufficient for running various applications.

Designed with platform for Docker which is a light software utility that can package an application and its dependencies in a virtual container that can run for any Linux server. Most applications for "ARM64" can be run seamlessly via the platform for Docker.

The NanoPi R2S has two Gbps Ethernet ports: one directly extended form the SoC and the other converted from a USB3.0.

For the NanoPi R2S, the internal Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps; the USB converted Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.

10/100/1000M Ethernet:
TX: 941 Mbps; RX: 941 Mbps

USB 3.0 to 10/100/1000M Ethernet:
TX: 941 Mbps; RX: 941 Mbps

Hardware Specifications:
- CPU:
* Model: RK3328
* Number of Cores: Quad-Core Cortex-A53
* Frequency: For 4 x Cortex-A53 Up to 1.4GHz
- Memory: RAM: 1GB DDR4
- Storage: Micro SD Slot: Micro SD x 1 for external storage up to 128GB
- Connectivity:
* Ethernet: Gbps Ethernet x 1
* USB 3.0 to Gbps Ethernet x 1
- USB:
* USB 2.0 Host x 1: USB Type A
* Micro USB x 1: Power input(5V/2A) and Slave
- Pin-header: Serial Debug Port x 1: 2.54mm pitch 3pin-header (3.3V TTL)
- LED:
* SYS LED(Red) x 1
* WAN LED(Green) x 1
* LAN LED(Green) x 1
- Key: User Key x1
- Working Temperature: -20℃ to 70℃
- Power Supply: DC 5V/2A

OS/Software:
- OS Support:
* For FriendlyWrt 19.07.1 (64-bit)
* For Ubuntu Core 18.04 (64-bit)(Linux-5.4 + U-boot-2017.11)

Dimensions:
- PCB: 6 Layer
- Dimension: 60 x 60 x 29.5 mm
- Weight: 76.38g (With Case)

Package Included:

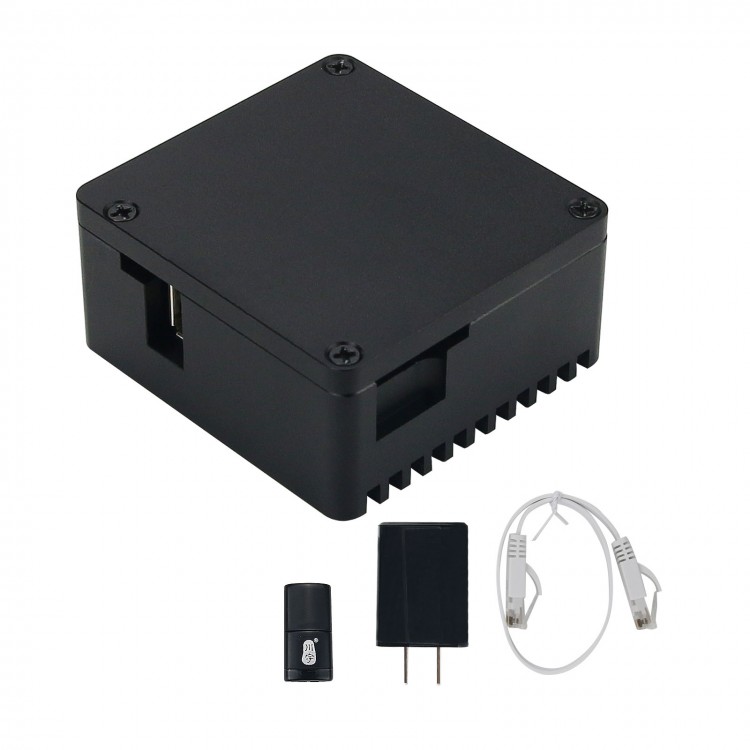

- 1 x Set of NanoPi R2S
