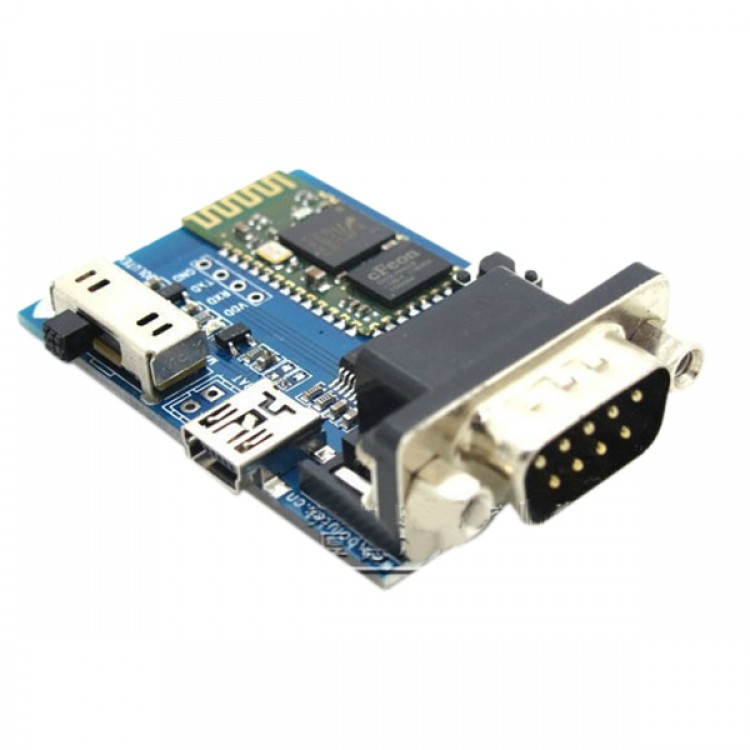

RS232 Bluetooth Serial Adapter Communication Master-Slave Module 5V Mini USB

RS232 Bluetooth Serial Adapter Communication Master-Slave Module 5V Mini USB

Description
Specification:
- This product is embedded within the bluetooth communication protocol,no need to install the driver, can be used on windows systems , you can also use dos, linux and other non- graphical operating system .
- Support the bluetooth serial port profiles(spp), and with a bluetooth-enabled notebook computer , equipped with a bluetooth adapter, desktop computers, handheld bluetooth pda and bluetooth gps device supports bluetooth spp service connections and communication
- Equipped with a reset button can remove the saved paired device information , and re-paired with the new bluetooth
- Adopt bluetooth chip bluetooth 2.1 standard . enhanced ber error rate performance and automatic frequency hopping technology can ensure efficient and secure communication , and has a stronger anti-jamming capability to ensure the stability and reliability of the communication
- User can set by using the at command from 1200bps nm total 12 different baud rate(default is 9600,n,8,1), can also set for the device more personalized bluetooth name
- Transmitted power complies with the bluetooth the class2 standard, built-in high sensitivity pcb printed antenna, stable communication distance can up to 15m

Specifications:
- Interface: RS232
- Executive standard bluetooth SIG v2.1+EDR
- Bluetooth protocol: bluetooth serial port profile (SPP)
- Communication speed: 1200,2400,4800,9600,19200,38400,57600,115200,230400,460800,921600,1382400 bps
- Modulation type: 2.4G ISM direct sequence frequency hopping (FHSS)
- Communication distance: 15M at open space , class 2 level
- Transmit power: 4 dbm
- Receiving sensitivity: -79dbm
- Operating voltage: 5v
- Sleep current operating current: 40ma/1.6ma(typical value)
- Operating temperature storage temperature -10-50 /-20-80 degrees celsius
- Size: approx. 2.22x1.47x0.57"

Package Included:
- RS232 Bluetooth Serial Adapter Communication Master-Slave 2 Modes 5v Mini USB
