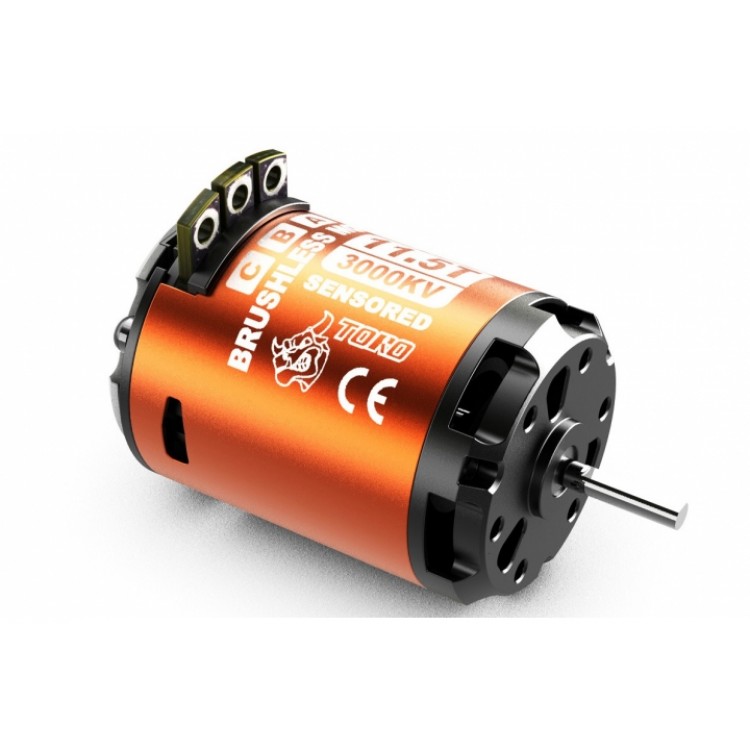

SkyRc Ares Motor 1/10 Sensor 3000KV/11.5T/2P Brushless Motor for Car

Description:
ARES series brushless motor incorporates radial fan in its front end bell, creating powerful airflow to dissipate heat. The high efficient cooling system enables cooling operating temperature during and after running compared to motor of others.
Like all SKYRC brushless motors, the ARES Brushless motor is hand-wound for maximum copper fill, and each motor is individually tested for consistency to ensure the best product is sent to customers.

Features:
- Sensor -based for Excellent Torque and Low-Speed Driveability;
- Incorporate Radial Fan in Front End Bell;
- Adjustable Timing;
- Compatible with any Sensored/ Sensorless ESC;
- CNC Machined Billet T6 Aluminum Heatsink Can;
- High Purity Copper Windings Maximizes Conductivity;
- High Power Solder Tabs;
- Removable/Replaceable Rotor;
- Powerful Sintered Neodymium Magnet ;
- Precision Engineered for Maximum Energy Conversion;

Specifications:

Item Name Ares 3000KV/11.5T/2P BL Motor for 1/10 Car
Sensored /Sensorless sensored No loading @7.2V Current 3.2A
Turns 11.5T Max current 23A
KV value 3000KV Resistance (Ω) 0.0257Ω
Poles 2P Battery range 2S
Diameter 35.9mm Operation Temperature /
Motor length 51.5mm Max Temperature 180°
Extend shaft diameter  3.17mm Suitable car scale 1/10
Length of extend shaft 13.6mm Suitable ESC 60A
Weight  163g Connector Type /
